Name: Steel Pipe Elbow Hot Forming Machine With Induction Heating
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYSQ-TC-120AB
Price: 2000 USD
Availability: InStock

Home > Products > Electrical Test Set >

Steel Pipe Elbow Hot Forming Machine With Induction Heating

steel pipe elbow forming machine

induction heating pipe bender

hot forming machine with warranty

Place of Origin:

China

Brand Name:

YUYANG

Certification:

Model Number:

YYSQ-TC-120AB

Request A Quote

Product Details

Max Fluctuating Power:

120KW

Work Power:

340V-430V

Maximum Input Current:

180A

Output Power:

120KW

Fluctuating Frequency:

5-20KHZ

Output Current:

400-4500A

The Flow Rate Of Cooling Water:

0.08-0.16Mpa 12L/Min

Water Temperature Protection Point:

50C

Product Size:

770*550*1510MM

Net Weight :

145kg

Highlight:

steel pipe elbow forming machine

induction heating pipe bender

hot forming machine with warranty

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$2000

Packaging Details

Plywood Box

Delivery Time

5-10 work days

Payment Terms

T/T, L/C, Western Union

Supply Ability

200 sets per month

Customized Automatic Magnet Wire Winding Machine for Metal & Metallurgy Coiling Process

Get Best Price

Video

New Condition Portable Induction Heater Machine for Steel Pipes Features Split Core Inductor IGBT Stainless Steel MIG Welders

Get Best Price

Video

Portable 220V HF Induction Heating Welding Machine with PLC Factory Price for Metal Manufacturing Plant

Get Best Price

Video

YY Electric Induction Ring Heating Element Mica Extruder Band Heater for Plastic Machine

Get Best Price

8613265296009

sales13@yuyangtest.com

86-769-26622869

Contact Now

Product Description

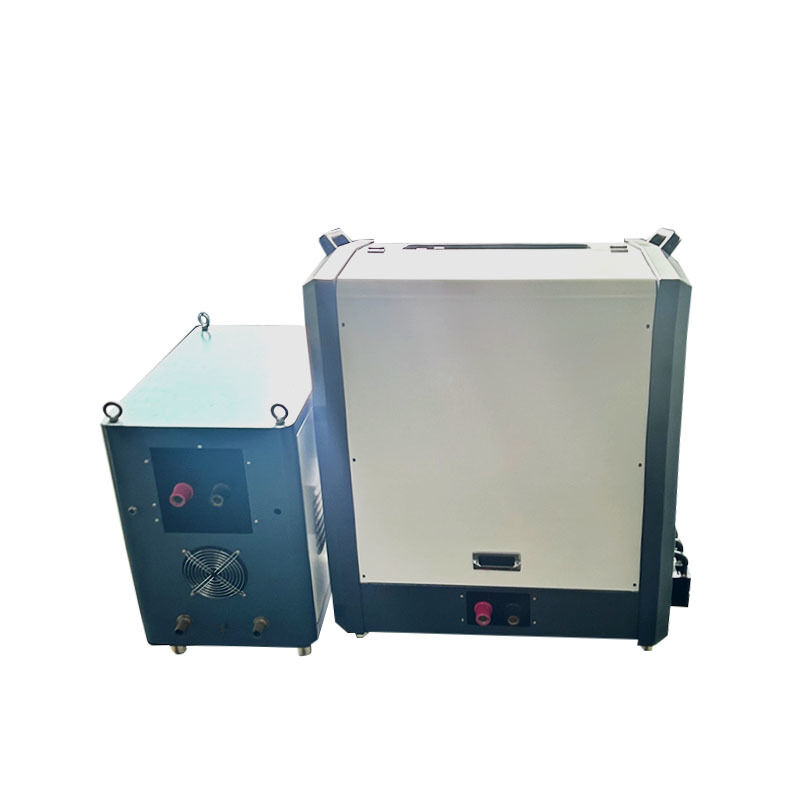

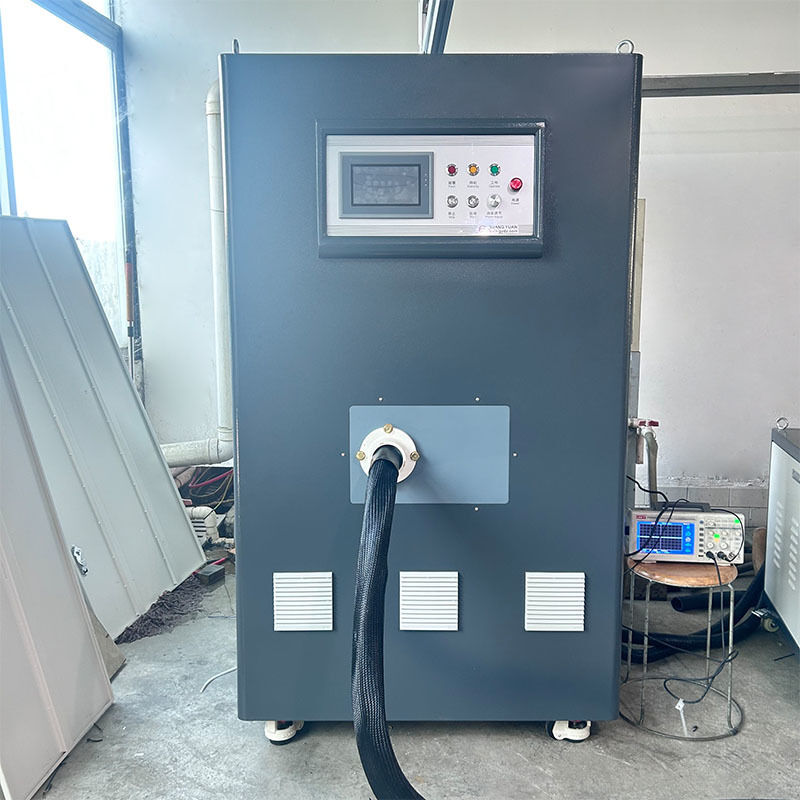

Steel Pipe Elbow Hot Forming Machine With Induction Heating

Advanced induction heating technology for efficient steel pipe elbow forming with superior performance and environmental benefits.

Key Characteristics

Advanced IGBT inverting technology with automatic frequency tracking
High-frequency heating with rapid operation - consumes only 20-30% of traditional electronic tube induction heating systems
Secure voltage operation with enhanced safety features
Manual and automatic regulation with comprehensive protection against over-voltage, over-current, water deficiency, phase failure, and overheating
Environmentally friendly operation - no open flame, noise, or pollution emissions
Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing processes

Advanced Features

Our high-frequency induction heating machines incorporate state-of-the-art electrical components and innovative techniques for rapid, localized metal heating. The technology enables non-contact heating through non-metallic materials until metal fusion occurs, providing safe, economical, and pollution-free technical solutions.

Operational Advantages

Portable Design

Integrated construction saves over 80% space and 75% weight compared to traditional transformers. Monolithic shell design with resistance to weak acids and alkalis.

Complex Metal Heating

Hand-held machine head with amorphous magnetic core material provides wider frequency range and superior heating for irregular shaped workpieces.

Efficient Operation

Rapid heating within 8 seconds, intelligent operation with stable magnetic field output for consistent long-term performance. Ideal for copper pipe welding and complex transformer applications.

Technical Specifications

Model	YYSQ-TC-120AB (Three phase)
Work power	340V-430V
Maximum input current	180A
Output power	120KW
Fluctuating frequency	5-20KHZ
Output current	400-4500A
The flow rate of cooling water	0.08-0.16Mpa 12L/Min
Water temperature protection point	50°C
Product size	Main: 7705501510MM Multiple Connect transformer: 680520630MM
Net weight	Main: 145kg Multiple Connect transformer: 105kg

Industrial Applications

Brazing Materials: Copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper, and other metal brazing applications
Welding: Glasses, fishing tools, hardware appliances, carbide saws and teeth, carbide blades, jewelry, watches
Electronic Industry: Motor rotor hot-cooperation, electrode silver and tin soldering
Specialized Applications: Metal implants, bulb electrode fabrication, band accessories, golf heads, pipe welding
Communication Equipment: Copper coaxial cable connector soldering and related applications

Manufacturer Information

Based in Guangdong, China, established in 2018. Serving global markets including South Asia (20%), Eastern Asia (20%), Domestic Market (15%), Southeast Asia (15%), Eastern Europe (10%), North America (10%), Oceania (5%), and Western Europe (5%). Team of 11-50 professionals.

Quality Assurance

Pre-production sampling before mass production
Final inspection prior to shipment

Product Range

Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, Wire and Cable Test Machines

Competitive Advantages

High-tech enterprise specializing in developing and manufacturing comprehensive testing equipment including Fire Testing Equipment, Building Material Fire Testers, Wire and Cable Fire Testers, Environmental Test Chambers, Textile Testing Equipment, and Toys Testing Equipment.

Business Services

Delivery Terms: FOB, CFR, CIF, EXW
Payment Currency: USD, EUR, JPY, AUD, HKD, GBP, CNY
Payment Methods: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Languages: English, Chinese
