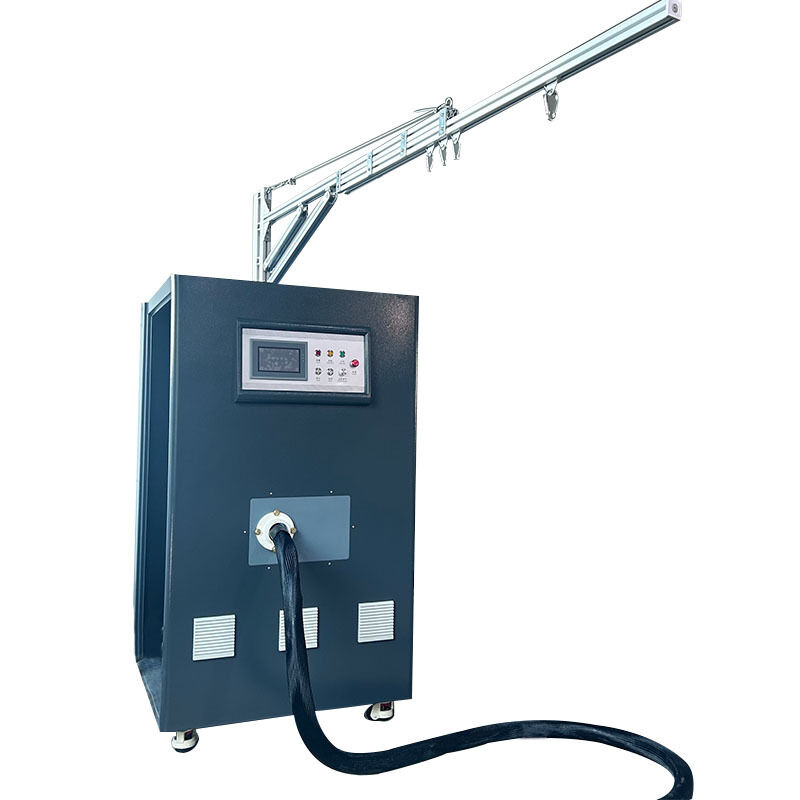

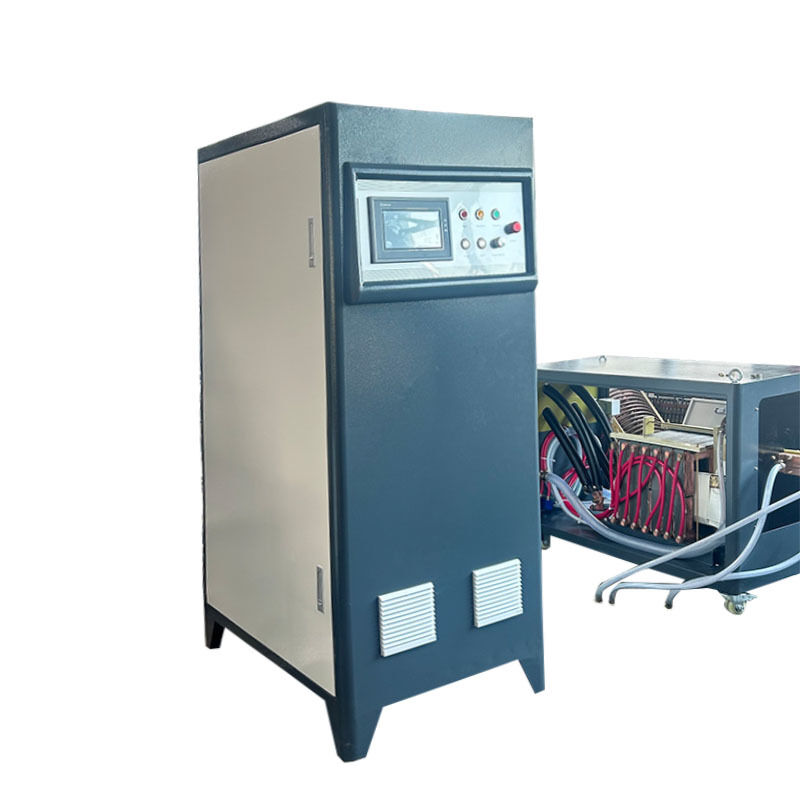

Induction Heating Machine for Kitchenware and Industrial Applications
Our advanced induction heating machines utilize cutting-edge IGBT inverting technology with automatic frequency tracking for superior performance in brazing, welding, and metal processing applications.
Key Characteristics
- Advanced IGBT inverting technology with automatic frequency tracking
- High-frequency heating with rapid operation - consumes only 20-30% of traditional electronic tube induction heating systems
- Secure voltage operation with enhanced safety features
- Manual and automatic regulation with comprehensive protection systems
- Environmentally friendly operation - no open flame, noise, or pollution emissions
- Ideal for brazing, welding, forging, hot cooperation, melting, quenching, and annealing processes
Advanced Technology Features
Our high-frequency induction heating machines incorporate state-of-the-art electrical components and innovative techniques for rapid, localized metal heating. The technology enables non-contact heating through non-metallic materials until metal fusion occurs, providing safe, economical, and pollution-free technical solutions.
Operational Advantages
Portable Design
Integrated construction saves over 80% space and 75% weight compared to traditional transformers. Monolithic shell design with resistance to weak acids and alkalis.
Complex Metal Heating
Hand-held machine head with amorphous magnetic core material provides wider frequency range and superior heating for irregular shaped workpieces.
Efficient Operation
Rapid heating within 8 seconds, intelligent operation with stable magnetic field output for consistent long-term performance. Ideal for copper pipe welding and complex transformer applications.
Technical Specifications
| Model 型号 |
YYSQ-TC-60AB (三相) |
| Work power 电压 |
340V-430V |
| Maximum input current 最大输入电流 |
90A |
| Output power 输出功率 |
60KW |
| Fluctuating frequency 震荡频率 |
5-20KHZ |
| Output current 输出电流 |
400-4500A |
| The flow rate of cooling water 水压水流 |
0.08-0.16Mpa 12L/Min |
| Water temperature protection point 水温保护点 |
50C |
| Product size 尺寸 |
主机 : 808*530*1260MM
分机 : 840*420*740MM |
| Net weight 净重 |
主机 : 102kg
分机 : 78kg |
Industrial Applications
Brazing Materials
Copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper, and other metal brazing applications
Welding Applications
Glasses, fishing tools, hardware appliances, carbide saws and teeth, carbide blades, jewelry, watches
Electronic Industry
Motor rotor hot-cooperation, electrode silver and tin soldering
Specialized Applications
Metal implants, bulb electrode fabrication, band accessories, golf heads, pipe welding
Communication Equipment
Copper coaxial cable connector soldering and related applications
Manufacturer Information
Company Profile
Based in Guangdong, China, established in 2018. Serving global markets including South Asia (20%), Eastern Asia (20%), Domestic Market (15%), Southeast Asia (15%), Eastern Europe (10%), North America (10%), Oceania (5%), and Western Europe (5%). Team of 11-50 professionals.
Quality Assurance
- Pre-production sampling before mass production
- Final inspection prior to shipment
Product Range
Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, Wire and Cable Test Machines
Business Services
Delivery Terms: FOB, CFR, CIF, EXW
Payment Currency: USD, EUR, JPY, AUD, HKD, GBP, CNY
Payment Methods: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Languages: English, Chinese
