Name: Compact Metal Detector Machine Conveyor 300mm High Sensitivity Auto Reject CE Factory
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY056
Price: 2,502.00 USD
Availability: InStock

Home > Products > Textile Testing Equipment >

Compact Metal Detector Machine Conveyor 300mm High Sensitivity Auto Reject CE Factory

compact metal detector conveyor

300mm high sensitivity metal detector

CE auto reject metal detector

Place of Origin:

China

Brand Name:

YUYANG

Certification:

Model Number:

YY056

Request A Quote

Compact Metal Detector Machine Conveyor 300mm High Sensitivity Auto Reject CE Factory

Product Details

Detected Height(mm):

300

Belt Width(mm):

400

Beltlength:

1500

Detector Sensitivity(mm):

Fe 1.Omm SUS 2.Omm N-Fe 1.5mm

Speed Of Belt:

25M/min (Fixed Speed) : Ifyou Need Adjust 5-40 M/min , Please Inform Us Before Order

Load Ability:

20KG

Count:

100

Waming Method:

Sound And Light Alarm ; The Belt Can Be Stopped, Continue Run Or Belt Retum(the Option You Can Selected In PLC Controller)

Reject Ways:

No Auto-reject System ,belt Continue And Rejecting The Goods

Application:

Non-package .plastic Package Paper Bag Or Box (non-metallic) Product

Work Environment:

Temperature -10°C-40°C ,relative Humility 30-90%

Highlight:

compact metal detector conveyor

300mm high sensitivity metal detector

CE auto reject metal detector

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

pending

Packaging Details

Plywood Box

Delivery Time

5-10 work days

Payment Terms

T/T, L/C, Western Union

Supply Ability

200 sets per month

Pet Food Grain Metal Detector Machine Stainless Steel Conveyor HACCP CE Factory Price

Get Best Price

Bakery Bread Snack Metal Detector Machine Conveyor High Sensitivity HACCP CE Certified

Get Best Price

Frozen Food Metal Detector Machine IP65 Stainless Steel Conveyor HACCP CE Certified

Get Best Price

Meat Bread Food Grade Metal Detector Machine HACCP CE Stainless Steel Conveyor Auto Reject

Get Best Price

8613825729462

sales03@yuyangtest.com

86-769-26622869

Contact Now

Product Description

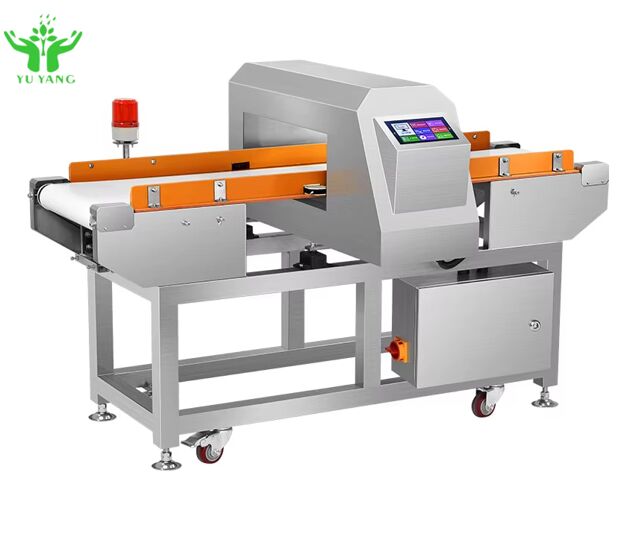

Compact Metal Detector Machine with 300mm Conveyor

Product Overview

This compact metal detector machine features a 300mm conveyor with high sensitivity detection and automatic rejection capabilities. CE certified and manufactured in our factory, this equipment ensures reliable metal contamination detection for various industrial applications.

Applications

Our transmission-type all-digital metal detection machine represents the latest generation of microcomputer intelligent metal detection equipment. With high sensitivity and stable performance, it overcomes the technical limitation where most equipment only responds sensitively to magnetic substances. The system delivers excellent elimination performance for products with moisture content and frozen products. Capable of detecting both ferrous and non-ferrous metals, it is widely used for metal detection in demanding applications including food, pharmaceuticals, and toys.

Key Features

Double circuit electromagnetic wave detection with combined analog and digital circuits for enhanced sensitivity and reliability
Touch screen input with large-scale integrated circuitry for intelligent detection (LCD display)
User-friendly multi-language interface with intuitive operation and clear human-machine interface
Dynamic zero point voltage tracking with automatic learning detection function to minimize operator intervention
Wide adjustable sensitivity range with reverse detection capability
Simultaneous sound and light alarms with automatic machine stop or product rejection options

Technical Specifications

Parameter	Specification
Detected Height	300 mm
Belt Width	400 mm
Belt Length	1500 mm
Detector Sensitivity	Fe 1.0mm \| SUS 2.0mm \| N-Fe 1.5mm
Belt Speed	25 M/min (Fixed speed); Adjustable 5-40 M/min (optional)
Load Capacity	20 KG
Count Capacity	100
Warning Method	Sound and light alarm with belt stop, continue run, or belt return options
Rejection System	Belt continues running while rejecting contaminated goods
Application	Non-packaged, plastic packaged, paper bag or box (non-metallic) products
Work Environment	Temperature -10℃ to 40℃, relative humidity 30-90%

Note: For adjustable belt speed (5-40 M/min), please inform us before ordering.
