Single Column Tensile Testing Machine 1kN 2kN 5kN
Professional tensile testing equipment designed for evaluating rubber, plastic film, wire, and peel strength materials with precision and reliability.

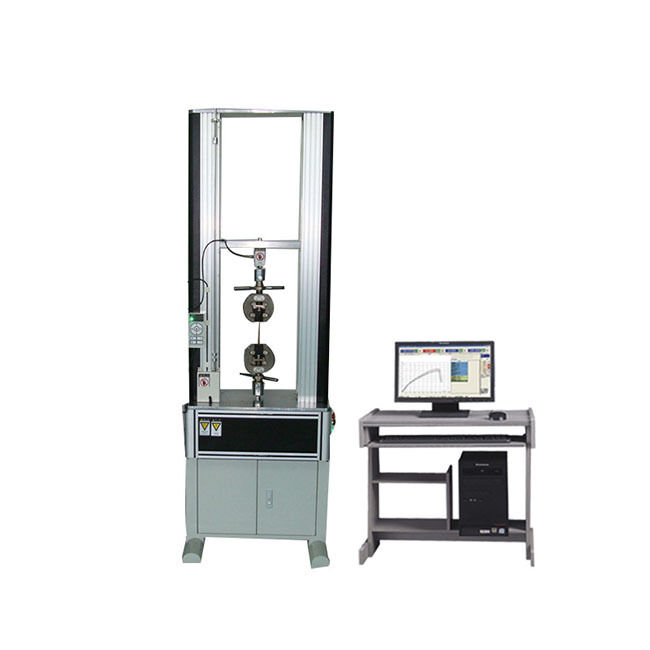

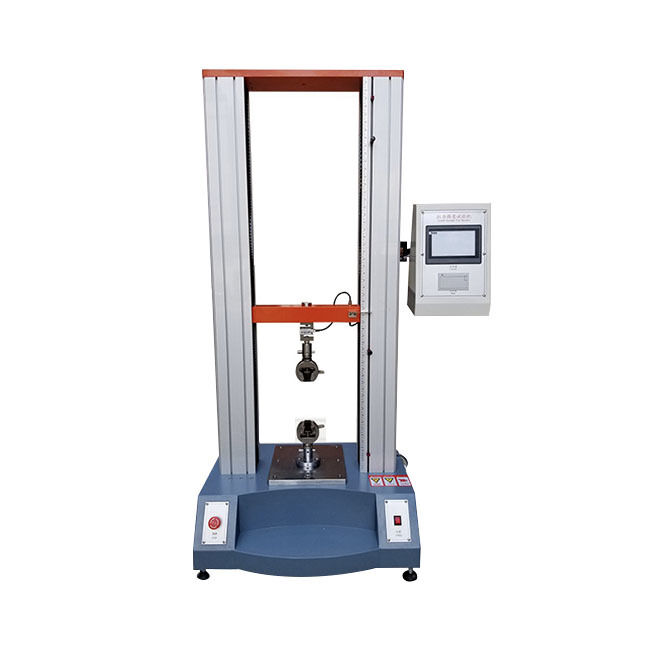

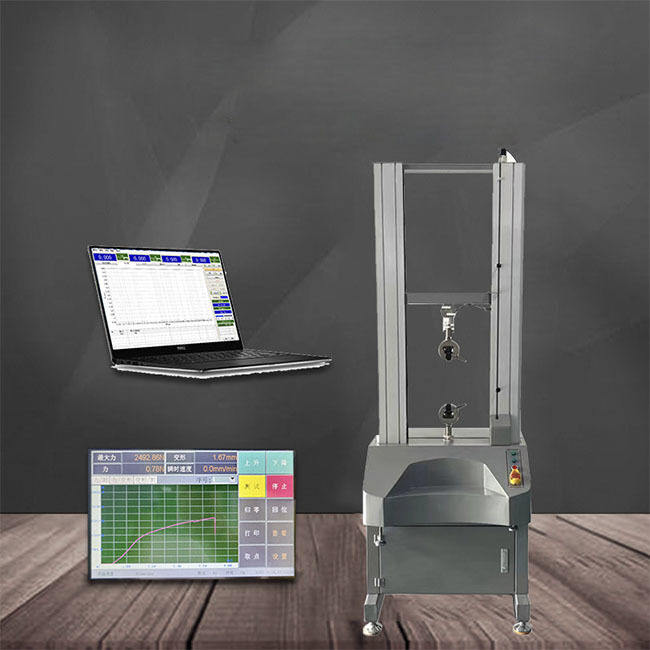

Product Images
Technical Specifications
| Control Mode |
Digital Display System |
| Model |
YYS-5D |
YYS-10D |
YYS-20D |
YYS-30D |
YYS-50D |
YYS-100D |
| Max Load |
5KN |
10KN |
20KN |
30KN |
50KN |
100KN |
| Load Accuracy |
Grade 1 |
| Test Range |
2-100%FS |
| Tensile/Compression Space |
800mm |
789mm |
750mm |
650mm |
- |
| Test Width |
300mm |
315mm |
400mm |
410mm |
- |
| Deformation Accuracy |
≤±1% |
| Displacement Resolution |
0.01m |
| Crosshead Speed Range |
0.001～500mm/min |
| Overall Dimensions (L*W*H) |
420*300*1500mm |
663*430*1700mm |
770*500*1830mm |
800*500*1950mm |
- |
| Power |
0.3kw |
0.75kw |
1kw |
- |
| Operating Temperature |
0 to +38°C (+32 to +100°F) |
| Humidity Range |
10% to 90% non-condensing |
Additional Options
- Extra wide and/or extra height frames are available
- Power supply system is completely customizable
Company Information
Based in Guangdong, China, established in 2018, serving global markets including South Asia, Eastern Asia, Domestic Market, Southeast Asia, Eastern Europe, North America, Oceania, and Western Europe.
Quality Assurance
- Pre-production sample verification before mass production
- Final inspection before shipment
Product Range
Fire Testing Equipment, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment, Wire and Cable Test Machine
