Name: Single Column 5kN Tensile Compression Testing Machine with Touch Screen Software ISO ASTM
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYD-30D
Price: 25,000.00 USD
Availability: InStock

Home > Products > Tensile Testing Machine >

Single Column 5kN Tensile Compression Testing Machine with Touch Screen Software ISO ASTM

5kN tensile compression testing machine

touch screen tensile testing machine

ISO ASTM tensile testing machine

Place of Origin:

China

Brand Name:

YUYANG

Certification:

Model Number:

YYD-30D

Request A Quote

Single Column 5kN Tensile Compression Testing Machine with Touch Screen Software ISO ASTM

Product Details

Max Load:

30kn

Load Accuracy:

Grade 1 Or Grade 0.5

Test Range:

2-100%FS Or 0.4-100%FS

Load Resolution:

1/500000FS

Test Control Mode:

3 Closed Loop Control, Stress, Strain And Displacement

Tensile/ Compression Space:

750mm

Test Width:

400mm

Deformation Accuracy:

≤±1%

Displacement Resolution:

0.01mm

Crosshead Speed Range:

0.001～500mm/min

Overall Dimensions (L*W*H):

770*500*1830mm

Power:

0.75kw

Supply Voltage:

1P 220V±10%,50-60HZ,500W

N.W.:

300kg

Operating Temperature:

0 To +38°C (+32 To +100°F)

Humidity Range:

10% To 90% Non-condensing

Highlight:

5kN tensile compression testing machine

touch screen tensile testing machine

ISO ASTM tensile testing machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

pending

Packaging Details

Plywood Box

Delivery Time

5-10 work days

Payment Terms

T/T, L/C, Western Union

Supply Ability

200 sets per month

Textile Fabric Tensile Testing Machine 10kN with Constant Rate of Extension CRE ASTM ISO

Get Best Price

Geotextile Tensile Testing Machine 50kN 100kN Wide Specimen Grip ASTM D4595 ISO 10319

Get Best Price

500kN High Capacity Tensile Testing Machine for Heavy Metal Steel Structural Material Testing

Get Best Price

Film Packaging Tensile Tester 5kN ASTM D882 D1708 for PE PP PVC Polyester Film Lab

Get Best Price

8613825729462

sales03@yuyangtest.com

86-769-26622869

Contact Now

Product Description

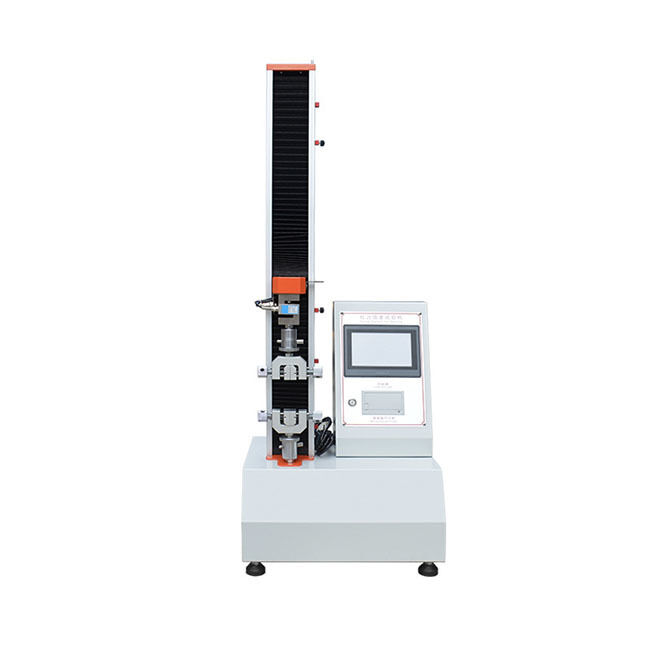

Single Column 5kN Tensile Compression Testing Machine with Touch Screen Software ISO ASTM

Advanced single column tensile compression testing machine with 5kN maximum load capacity, featuring intuitive touch screen software and compliance with ISO and ASTM standards for precision material testing.

Technical Specifications

Control Mode	Digital Display System
Model	YYS-5D	YYS-10D	YYS-20D	YYS-30D	YYS-50D	YYS-100D
Max Load	5KN	10KN	20KN	30KN	50KN	100KN
Load Accuracy	Grade 1
Test Range	2-100%FS
Tensile/Compression Space	800mm	789mm	750mm	650mm	-
Test Width	300mm	315mm	400mm	410mm	-
Deformation Accuracy	≤±1%
Displacement Resolution	0.01m
Crosshead Speed Range	0.001～500mm/min
Overall Dimensions (LWH)	4203001500mm	6634301700mm	7705001830mm	8005001950mm	-
Power	0.3kw	0.75kw	1kw	-
Operating Temperature	0 to +38°C (+32 to +100°F)
Humidity Range	10% to 90% non-condensing

Important Notes:

Extra wide and/or extra height frames are available
Power supply system is completely customizable

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, established in 2018. We serve customers worldwide including South Asia (20.00%), Eastern Asia (20.00%), Domestic Market (15.00%), Southeast Asia (15.00%), Eastern Europe (10.00%), North America (10.00%), Oceania (5.00%), and Western Europe (5.00%). Our team consists of 11-50 professionals.

How can we guarantee quality?

We ensure quality through pre-production samples before mass production and final inspection before shipment.

What can you buy from us?

We specialize in Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, and Wire and Cable Test Machines.

Why should you buy from us instead of other suppliers?

We are a high-tech enterprise specializing in developing and manufacturing Fire Testing Equipment, Building Material Fire Testers, Wire and Cable Fire Testers, Environmental Test Chambers, Textile Testing Equipment, and Toys Testing Equipment.

What services can we provide?

Delivery Terms: FOB, CFR, CIF, EXW
Payment Currency: USD, EUR, JPY, AUD, HKD, GBP, CNY
Payment Types: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Languages: English, Chinese
