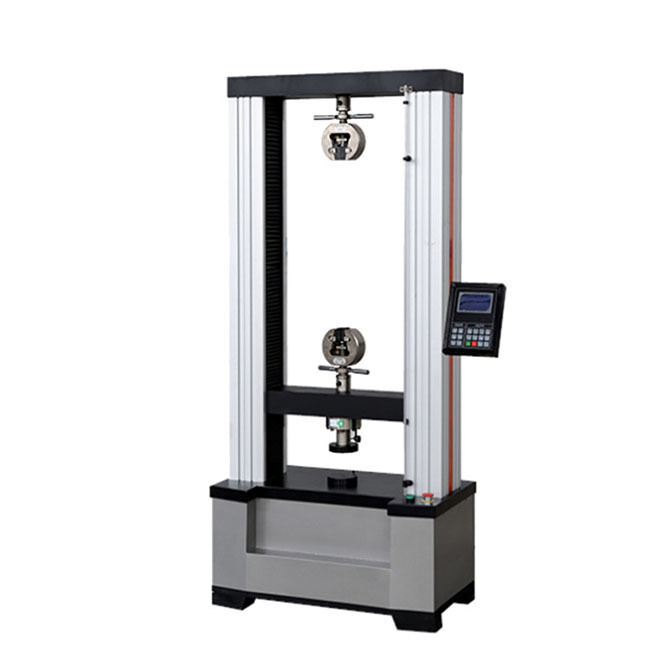

Dual Column 50kN Universal Tensile Testing Machine Servo Motor Computer Control ASTM ISO

Dual Column 50kN Universal Tensile Testing Machine Servo Motor Computer Control ASTM ISO

50kN tensile testing machine

dual column tensile tester

servo motor testing machine

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YYD-100D

Contact Us
Request A Quote
Dual Column 50kN Universal Tensile Testing Machine Servo Motor Computer Control ASTM ISO Dual Column 50kN Universal Tensile Testing Machine Servo Motor Computer Control ASTM ISO Dual Column 50kN Universal Tensile Testing Machine Servo Motor Computer Control ASTM ISO
Product Details
Max Load:
100kn
Load Accuracy:
Grade 1 Or Grade 0.5
Test Range:
2-100%FS Or 0.4-100%FS
Load Resolution:
1/500000FS
Test Control Mode:
3 Closed Loop Control, Stress, Strain And Displacement
Tensile/ Compression Space:
650mm
Test Width:
410mm
Deformation Accuracy:
≤±1%
Displacement Resolution:
0.01mm
Crosshead Speed Range:
0.001～500mm/min
Overall Dimensions (L*W*H):
800*500*1950mm
Power:
1kw
Supply Voltage:
1P 220V±10%,50-60HZ,500W
N.W.:
500kg
Operating Temperature:
0 To +38°C (+32 To +100°F)
Humidity Range:
10% To 90% Non-condensing
Highlight:

50kN tensile testing machine

,

dual column tensile tester

,

servo motor testing machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
pending
Packaging Details
Plywood Box
Delivery Time
5-10 work days
Payment Terms
T/T, L/C, Western Union
Supply Ability
200 sets per month
RELATED PRODUCTS
Good price Textile Fabric Tensile Testing Machine 10kN with Constant Rate of Extension CRE ASTM ISO online

Textile Fabric Tensile Testing Machine 10kN with Constant Rate of Extension CRE ASTM ISO

Get Best Price
Good price Geotextile Tensile Testing Machine 50kN 100kN Wide Specimen Grip ASTM D4595 ISO 10319 online

Geotextile Tensile Testing Machine 50kN 100kN Wide Specimen Grip ASTM D4595 ISO 10319

Get Best Price
Good price 500kN High Capacity Tensile Testing Machine for Heavy Metal Steel Structural Material Testing online

500kN High Capacity Tensile Testing Machine for Heavy Metal Steel Structural Material Testing

Get Best Price
Good price Film Packaging Tensile Tester 5kN ASTM D882 D1708 for PE PP PVC Polyester Film Lab online

Film Packaging Tensile Tester 5kN ASTM D882 D1708 for PE PP PVC Polyester Film Lab

Get Best Price
Contact Us
8613825729462
sales03@yuyangtest.com
86-769-26622869
Contact Now
Product Description
Dual Column 50kN Universal Tensile Testing Machine
Servo motor computer control system compliant with ASTM and ISO standards
Dual Column 50kN Universal Tensile Testing Machine Servo Motor Computer Control ASTM ISO 0 Dual Column 50kN Universal Tensile Testing Machine Servo Motor Computer Control ASTM ISO 1 Dual Column 50kN Universal Tensile Testing Machine Servo Motor Computer Control ASTM ISO 2 Dual Column 50kN Universal Tensile Testing Machine Servo Motor Computer Control ASTM ISO 3 Dual Column 50kN Universal Tensile Testing Machine Servo Motor Computer Control ASTM ISO 4 Dual Column 50kN Universal Tensile Testing Machine Servo Motor Computer Control ASTM ISO 5
Technical Specifications
Control Mode Digital Display System
Model YYS-5D YYS-10D YYS-20D YYS-30D YYS-50D YYS-100D
Max Load 5KN 10KN 20KN 30KN 50KN 100KN
Load Accuracy Grade 1
Test Range 2-100%FS
Tensile/Compression Space 800mm 789mm 750mm 650mm -
Test Width 300mm 315mm 400mm 410mm -
Deformation Accuracy ≤±1%
Displacement Resolution 0.01m
Crosshead Speed Range 0.001～500mm/min
Overall Dimensions (L*W*H) 420*300*1500mm 663*430*1700mm 770*500*1830mm 800*500*1950mm -
Power 0.3kw 0.75kw 1kw -
Operating Temperature 0 to +38°C (+32 to +100°F)
Humidity Range 10% to 90% non-condensing
Additional Options
  • Extra wide and/or extra height frames are available
  • Power supply system is completely customizable
Frequently Asked Questions
Who are we?
We are based in Guangdong, China, established in 2018. We serve customers in South Asia (20.00%), Eastern Asia (20.00%), Domestic Market (15.00%), Southeast Asia (15.00%), Eastern Europe (10.00%), North America (10.00%), Oceania (5.00%), and Western Europe (5.00%). Our team consists of 11-50 professionals.
How can we guarantee quality?
  • Always provide pre-production samples before mass production
  • Always conduct final inspection before shipment
What can you buy from us?
Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, Wire and Cable Test Machines
Why should you buy from us instead of other suppliers?
We are a high-tech enterprise specializing in developing and manufacturing Fire Testing Equipment, Building Material Fire Testers, Wire and Cable Fire Testers, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment and related products.
What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW
Accepted Payment Currency: USD, EUR, JPY, AUD, HKD, GBP, CNY
Accepted Payment Type: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Languages Spoken: English, Chinese
