100kN Dual Column Universal Tensile Testing Machine for Steel Aluminum Metal ASTM E8 ISO 6892

100kN Dual Column Universal Tensile Testing Machine for Steel Aluminum Metal ASTM E8 ISO 6892

100kN dual column tensile testing machine

universal tensile tester for metal

ASTM E8 tensile testing machine

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YYD-50D

Contact Us
Request A Quote
100kN Dual Column Universal Tensile Testing Machine for Steel Aluminum Metal ASTM E8 ISO 6892 100kN Dual Column Universal Tensile Testing Machine for Steel Aluminum Metal ASTM E8 ISO 6892 100kN Dual Column Universal Tensile Testing Machine for Steel Aluminum Metal ASTM E8 ISO 6892
Product Details
Max Load:
50kn
Load Accuracy:
Grade 1 Or Grade 0.5
Test Range:
2-100%FS Or 0.4-100%FS
Load Resolution:
1/500000FS
Test Control Mode:
3 Closed Loop Control, Stress, Strain And Displacement
Tensile/ Compression Space:
750mm
Test Width:
400mm
Deformation Accuracy:
≤±1%
Displacement Resolution:
0.01mm
Crosshead Speed Range:
0.001～500mm/min
Overall Dimensions (L*W*H):
770*500*1830mm
Power:
0.75kw
Supply Voltage:
1P 220V±10%,50-60HZ,500W
N.W.:
300kg
Operating Temperature:
0 To +38°C (+32 To +100°F)
Humidity Range:
10% To 90% Non-condensing
Highlight:

100kN dual column tensile testing machine

,

universal tensile tester for metal

,

ASTM E8 tensile testing machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
pending
Packaging Details
Plywood Box
Delivery Time
5-10 work days
Payment Terms
T/T, L/C, Western Union
Supply Ability
200 sets per month
RELATED PRODUCTS
Good price Textile Fabric Tensile Testing Machine 10kN with Constant Rate of Extension CRE ASTM ISO online

Textile Fabric Tensile Testing Machine 10kN with Constant Rate of Extension CRE ASTM ISO

Get Best Price
Good price Geotextile Tensile Testing Machine 50kN 100kN Wide Specimen Grip ASTM D4595 ISO 10319 online

Geotextile Tensile Testing Machine 50kN 100kN Wide Specimen Grip ASTM D4595 ISO 10319

Get Best Price
Good price 500kN High Capacity Tensile Testing Machine for Heavy Metal Steel Structural Material Testing online

500kN High Capacity Tensile Testing Machine for Heavy Metal Steel Structural Material Testing

Get Best Price
Good price Film Packaging Tensile Tester 5kN ASTM D882 D1708 for PE PP PVC Polyester Film Lab online

Film Packaging Tensile Tester 5kN ASTM D882 D1708 for PE PP PVC Polyester Film Lab

Get Best Price
Contact Us
8613825729462
sales03@yuyangtest.com
86-769-26622869
Contact Now
Product Description

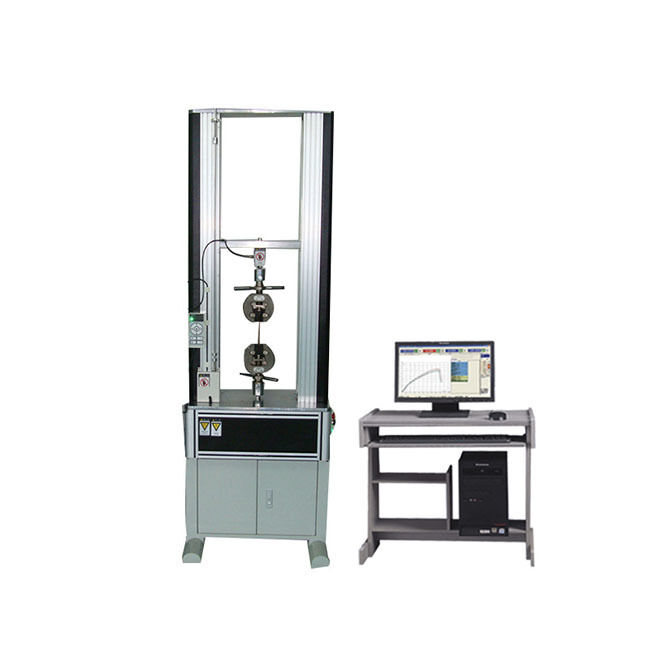

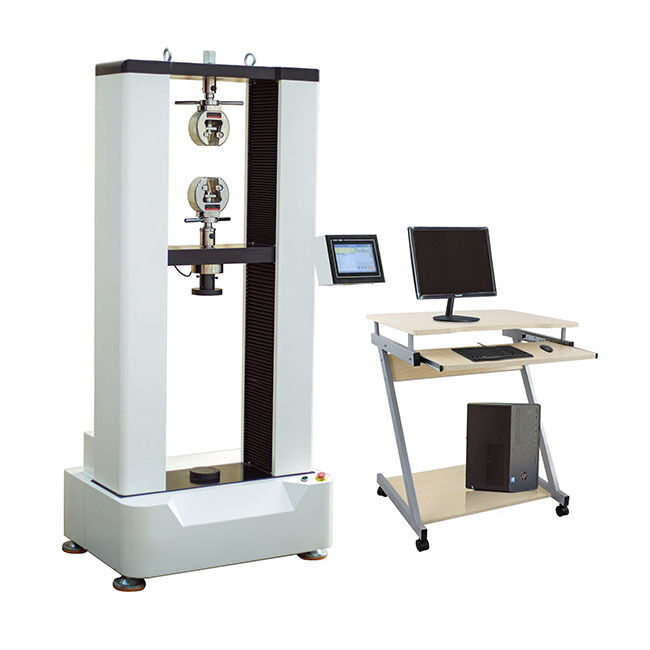

100kN Dual Column Universal Tensile Testing Machine
High-precision tensile testing equipment designed for steel, aluminum, and metal materials compliance with ASTM E8 and ISO 6892 standards.
100kN Dual Column Universal Tensile Testing Machine for Steel Aluminum Metal ASTM E8 ISO 6892 0 100kN Dual Column Universal Tensile Testing Machine for Steel Aluminum Metal ASTM E8 ISO 6892 1 100kN Dual Column Universal Tensile Testing Machine for Steel Aluminum Metal ASTM E8 ISO 6892 2 100kN Dual Column Universal Tensile Testing Machine for Steel Aluminum Metal ASTM E8 ISO 6892 3 100kN Dual Column Universal Tensile Testing Machine for Steel Aluminum Metal ASTM E8 ISO 6892 4 100kN Dual Column Universal Tensile Testing Machine for Steel Aluminum Metal ASTM E8 ISO 6892 5
Technical Specifications
Control Mode Digital Display System
Model YYS-5D YYS-10D YYS-20D YYS-30D YYS-50D YYS-100D
Max Load 5KN 10KN 20KN 30KN 50KN 100KN
Load Accuracy Grade 1
Test Range 2-100%FS
Tensile/Compression Space 800mm 789mm 750mm 650mm -
Test Width 300mm 315mm 400mm 410mm -
Deformation Accuracy ≤±1%
Displacement Resolution 0.01m
Crosshead Speed Range 0.001～500mm/min
Overall Dimensions (L*W*H) 420*300*1500mm 663*430*1700mm 770*500*1830mm 800*500*1950mm -
Power 0.3kw 0.75kw 1kw -
Operating Temperature 0 to +38°C (+32 to +100°F)
Humidity Range 10% to 90% non-condensing
Customization Options:
1. Extra wide and/or extra height frames are available.
2. Power supply system is completely customizable.
Company Information & Services
About Our Company
Based in Guangdong, China, established in 2018. We serve global markets including South Asia (20%), Eastern Asia (20%), Domestic Market (15%), Southeast Asia (15%), Eastern Europe (10%), North America (10%), Oceania (5%), and Western Europe (5%). Our team consists of 11-50 professionals.
Quality Assurance
• Pre-production samples provided before mass production
• Final inspection conducted before shipment
Product Range
Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, Wire and Cable Test Machines
Why Choose Us
We are a high-tech enterprise specializing in developing and manufacturing testing equipment including Fire Testing Equipment, Building Material Fire Testers, Wire and Cable Fire Testers, Environmental Test Chambers, Textile Testing Equipment, and Toys Testing Equipment.
Services Provided
Delivery Terms: FOB, CFR, CIF, EXW
Payment Currency: USD, EUR, JPY, AUD, HKD, GBP, CNY
Payment Methods: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Languages: English, Chinese
