30kN Dual Column Electromechanical Universal Testing Machine Tensile Compression Bending

30kN Dual Column Electromechanical Universal Testing Machine Tensile Compression Bending

30kN dual column testing machine

electromechanical tensile compression tester

universal testing machine with bending

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YYD-30D

Contact Us
Request A Quote
30kN Dual Column Electromechanical Universal Testing Machine Tensile Compression Bending 30kN Dual Column Electromechanical Universal Testing Machine Tensile Compression Bending 30kN Dual Column Electromechanical Universal Testing Machine Tensile Compression Bending
Product Details
Max Load:
30kn
Load Accuracy:
Grade 1 Or Grade 0.5
Test Range:
2-100%FS Or 0.4-100%FS
Load Resolution:
1/500000FS
Test Control Mode:
3 Closed Loop Control, Stress, Strain And Displacement
Tensile/ Compression Space:
750mm
Test Width:
400mm
Deformation Accuracy:
≤±1%
Displacement Resolution:
0.01mm
Crosshead Speed Range:
0.001～500mm/min
Overall Dimensions (L*W*H):
770*500*1830mm
Power:
0.75kw
Supply Voltage:
1P 220V±10%,50-60HZ,500W
N.W.:
300kg
Operating Temperature:
0 To +38°C (+32 To +100°F)
Humidity Range:
10% To 90% Non-condensing
Highlight:

30kN dual column testing machine

,

electromechanical tensile compression tester

,

universal testing machine with bending

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
pending
Packaging Details
Plywood Box
Delivery Time
5-10 work days
Payment Terms
T/T, L/C, Western Union
Supply Ability
200 sets per month
RELATED PRODUCTS
Good price Textile Fabric Tensile Testing Machine 10kN with Constant Rate of Extension CRE ASTM ISO online

Textile Fabric Tensile Testing Machine 10kN with Constant Rate of Extension CRE ASTM ISO

Get Best Price
Good price Geotextile Tensile Testing Machine 50kN 100kN Wide Specimen Grip ASTM D4595 ISO 10319 online

Geotextile Tensile Testing Machine 50kN 100kN Wide Specimen Grip ASTM D4595 ISO 10319

Get Best Price
Good price 500kN High Capacity Tensile Testing Machine for Heavy Metal Steel Structural Material Testing online

500kN High Capacity Tensile Testing Machine for Heavy Metal Steel Structural Material Testing

Get Best Price
Good price Film Packaging Tensile Tester 5kN ASTM D882 D1708 for PE PP PVC Polyester Film Lab online

Film Packaging Tensile Tester 5kN ASTM D882 D1708 for PE PP PVC Polyester Film Lab

Get Best Price
Contact Us
8613825729462
sales03@yuyangtest.com
86-769-26622869
Contact Now
Product Description

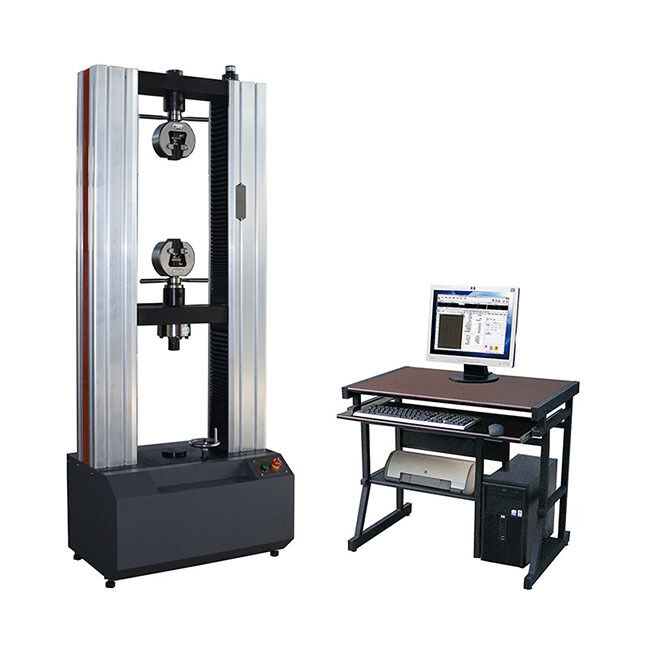

30kN Dual Column Electromechanical Universal Testing Machine
Professional tensile, compression, and bending testing equipment with precise digital control system for accurate material testing applications.
30kN Dual Column Electromechanical Universal Testing Machine Tensile Compression Bending 0 30kN Dual Column Electromechanical Universal Testing Machine Tensile Compression Bending 1 30kN Dual Column Electromechanical Universal Testing Machine Tensile Compression Bending 2 30kN Dual Column Electromechanical Universal Testing Machine Tensile Compression Bending 3 30kN Dual Column Electromechanical Universal Testing Machine Tensile Compression Bending 4 30kN Dual Column Electromechanical Universal Testing Machine Tensile Compression Bending 5
Technical Specifications
Control Mode Digital Display System
Model YYS-5D YYS-10D YYS-20D YYS-30D YYS-50D YYS-100D
Max Load 5KN 10KN 20KN 30KN 50KN 100KN
Load Accuracy Grade 1
Test Range 2-100%FS
Tensile/Compression Space 800mm 789mm 750mm 650mm -
Test Width 300mm 315mm 400mm 410mm -
Deformation Accuracy ≤±1%
Displacement Resolution 0.01m
Crosshead Speed Range 0.001～500mm/min
Overall Dimensions (L*W*H) 420*300*1500mm 663*430*1700mm 770*500*1830mm 800*500*1950mm -
Power 0.3kw 0.75kw 1kw -
Operating Temperature 0 to +38°C (+32 to +100°F)
Humidity Range 10% to 90% non-condensing
NOTE:
1. Extra wide and/or extra height frames are available.
2. Power supply system is completely customizable.
