Multi-Function Rubber Plastic Tensile Testing Machine 10kN Peel Shear Compression Testing

Multi-Function Rubber Plastic Tensile Testing Machine 10kN Peel Shear Compression Testing

10kN rubber plastic tensile tester

peel shear compression testing machine

multi-function tensile testing equipment

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YYD-30D

Contact Us
Request A Quote
Multi-Function Rubber Plastic Tensile Testing Machine 10kN Peel Shear Compression Testing Multi-Function Rubber Plastic Tensile Testing Machine 10kN Peel Shear Compression Testing Multi-Function Rubber Plastic Tensile Testing Machine 10kN Peel Shear Compression Testing
Product Details
Max Load:
30kn
Load Accuracy:
Grade 1 Or Grade 0.5
Test Range:
2-100%FS Or 0.4-100%FS
Load Resolution:
1/500000FS
Test Control Mode:
3 Closed Loop Control, Stress, Strain And Displacement
Tensile/ Compression Space:
750mm
Test Width:
400mm
Deformation Accuracy:
≤±1%
Displacement Resolution:
0.01mm
Crosshead Speed Range:
0.001～500mm/min
Overall Dimensions (L*W*H):
770*500*1830mm
Power:
0.75kw
Supply Voltage:
1P 220V±10%,50-60HZ,500W
N.W.:
300kg
Operating Temperature:
0 To +38°C (+32 To +100°F)
Humidity Range:
10% To 90% Non-condensing
Highlight:

10kN rubber plastic tensile tester

,

peel shear compression testing machine

,

multi-function tensile testing equipment

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
pending
Packaging Details
Plywood Box
Delivery Time
5-10 work days
Payment Terms
T/T, L/C, Western Union
Supply Ability
200 sets per month
RELATED PRODUCTS
Good price Textile Fabric Tensile Testing Machine 10kN with Constant Rate of Extension CRE ASTM ISO online

Textile Fabric Tensile Testing Machine 10kN with Constant Rate of Extension CRE ASTM ISO

Get Best Price
Good price Geotextile Tensile Testing Machine 50kN 100kN Wide Specimen Grip ASTM D4595 ISO 10319 online

Geotextile Tensile Testing Machine 50kN 100kN Wide Specimen Grip ASTM D4595 ISO 10319

Get Best Price
Good price 500kN High Capacity Tensile Testing Machine for Heavy Metal Steel Structural Material Testing online

500kN High Capacity Tensile Testing Machine for Heavy Metal Steel Structural Material Testing

Get Best Price
Good price Film Packaging Tensile Tester 5kN ASTM D882 D1708 for PE PP PVC Polyester Film Lab online

Film Packaging Tensile Tester 5kN ASTM D882 D1708 for PE PP PVC Polyester Film Lab

Get Best Price
Contact Us
8613825729462
sales03@yuyangtest.com
86-769-26622869
Contact Now
Product Description

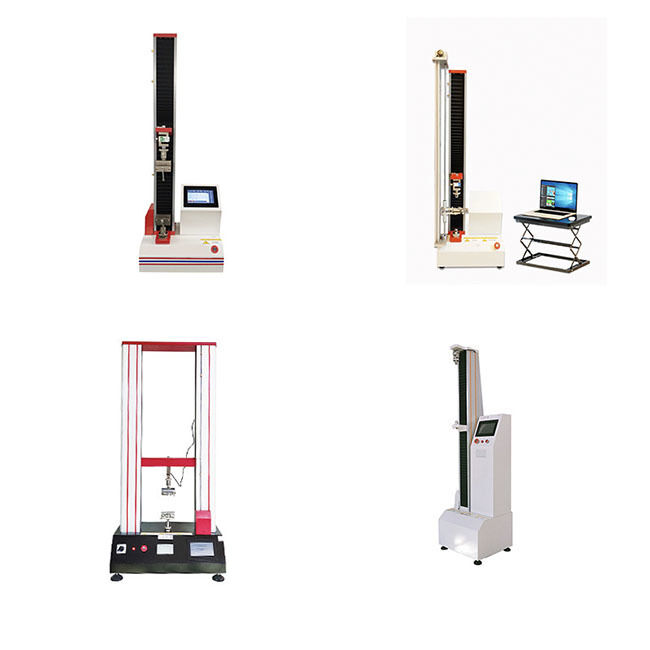

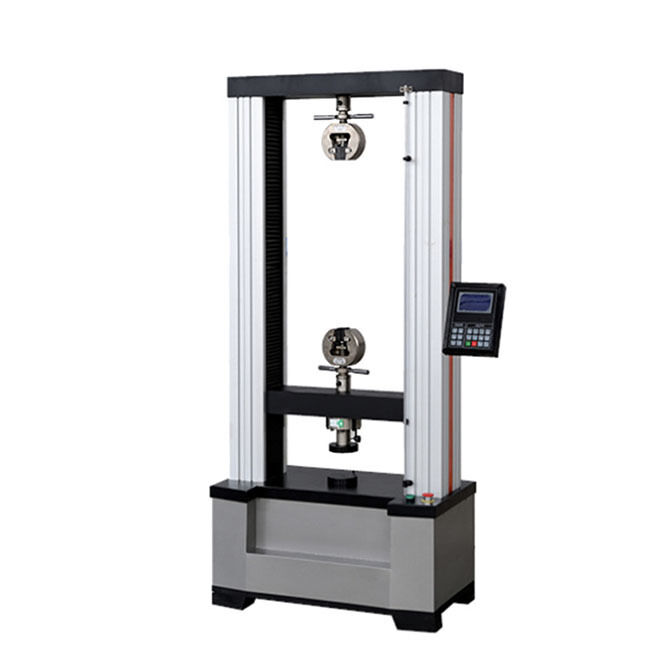

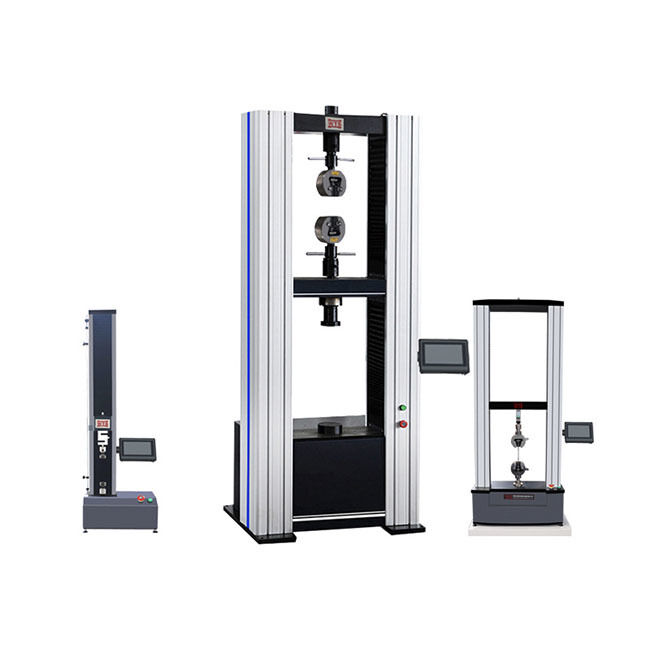

Multi-Function Rubber Plastic Tensile Testing Machine
10kN capacity testing machine for peel, shear, and compression testing of rubber and plastic materials with digital display system and precise control.
Multi-Function Rubber Plastic Tensile Testing Machine 10kN Peel Shear Compression Testing 0 Multi-Function Rubber Plastic Tensile Testing Machine 10kN Peel Shear Compression Testing 1 Multi-Function Rubber Plastic Tensile Testing Machine 10kN Peel Shear Compression Testing 2 Multi-Function Rubber Plastic Tensile Testing Machine 10kN Peel Shear Compression Testing 3 Multi-Function Rubber Plastic Tensile Testing Machine 10kN Peel Shear Compression Testing 4 Multi-Function Rubber Plastic Tensile Testing Machine 10kN Peel Shear Compression Testing 5
Technical Specifications
Control System
Digital Display System with precise measurement and control
Parameter YYS-5D YYS-10D YYS-20D YYS-30D YYS-50D YYS-100D
Max Load 5KN 10KN 20KN 30KN 50KN 100KN
Tensile/Compression Space 800mm 789mm 750mm 650mm - -
Test Width 300mm 315mm 400mm 410mm - -
Overall Dimensions (L*W*H) 420*300*1500mm 663*430*1700mm 770*500*1830mm 800*500*1950mm - -
Power 0.3kw 0.75kw 1kw - - -
Performance Specifications
  • Load Accuracy: Grade 1
  • Test Range: 2-100% FS
  • Deformation Accuracy: ≤±1%
  • Displacement Resolution: 0.01m
  • Crosshead Speed Range: 0.001～500mm/min
  • Operating Temperature: 0 to +38°C (+32 to +100°F)
  • Humidity Range: 10% to 90% non-condensing
Customization Options:
  • Extra wide and/or extra height frames available
  • Completely customizable power supply system
Manufacturer Information
About Our Company
Established in 2018 and based in Guangdong, China, we serve customers worldwide with a team of 11-50 professionals. Our market distribution includes South Asia (20%), Eastern Asia (20%), Domestic Market (15%), Southeast Asia (15%), Eastern Europe (10%), North America (10%), Oceania (5%), and Western Europe (5%).
Quality Assurance
  • Pre-production sample provided before mass production
  • Final inspection conducted before shipment
Product Range
Fire Testing Equipment, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment, Wire and Cable Test Machine
Why Choose Us
We are a high-tech enterprise specializing in developing and manufacturing Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and related testing solutions.
Services & Support
Delivery Terms: FOB, CFR, CIF, EXW
Payment Currency: USD, EUR, JPY, AUD, HKD, GBP, CNY
Payment Methods: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Languages: English, Chinese
