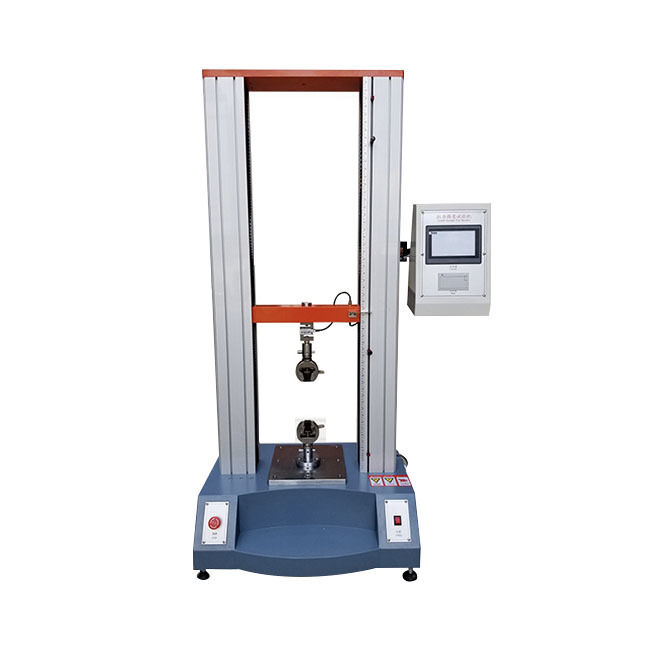

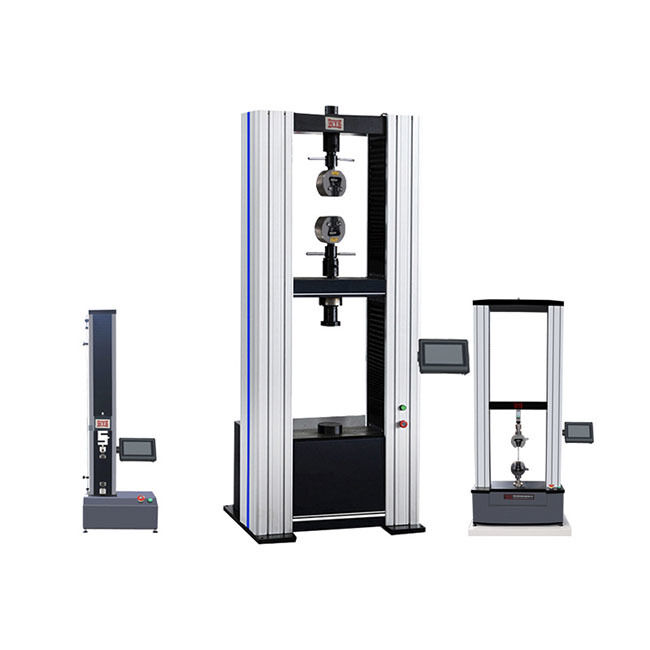

100kN Steel Wire Tensile Testing Machine
Universal Testing Machine compliant with ASTM E8 standards and CE certified for laboratory use.
Technical Specifications
| Control Mode |
Digital Display System |
| Model |
YYS-5D |
YYS-10D |
YYS-20D |
YYS-30D |
YYS-50D |
YYS-100D |
| Max Load |
5KN |
10KN |
20KN |
30KN |
50KN |
100KN |
| Load Accuracy |
Grade 1 |
| Test Range |
2-100%FS |
| Tensile/Compression Space |
800mm |
789mm |
750mm |
650mm |
- |
- |
| Test Width |
300mm |
315mm |
400mm |
410mm |
- |
- |
| Deformation Accuracy |
≤±1% |
| Displacement Resolution |
0.01m |
| Crosshead Speed Range |
0.001～500mm/min |
| Overall Dimensions (L*W*H) |
420*300*1500mm |
663*430*1700mm |
770*500*1830mm |
800*500*1950mm |
- |
- |
| Power |
0.3kw |
0.75kw |
1kw |
- |
- |
- |
| Operating Temperature |
0 to +38°C (+32 to +100°F) |
| Humidity Range |
10% to 90% non-condensing |
NOTE:
1. Extra wide and/or extra height frames are available.
2. Power supply system is completely customizable.
Company Information & Services
About Our Company
Established in 2018 and based in Guangdong, China, we serve global markets including South Asia (20.00%), Eastern Asia (20.00%), Domestic Market (15.00%), Southeast Asia (15.00%), Eastern Europe (10.00%), North America (10.00%), Oceania (5.00%), and Western Europe (5.00%). Our team consists of 11-50 dedicated professionals.
Quality Assurance
- Always provide pre-production samples before mass production
- Always conduct final inspection before shipment
Product Range
Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, Wire and Cable Test Machines
Why Choose Us
We are a high-tech enterprise specializing in developing and manufacturing Fire Testing Equipment, Building Material Fire Testers, Wire and Cable Fire Testers, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment and related testing solutions.
Services Provided
Accepted Delivery Terms: FOB, CFR, CIF, EXW
Accepted Payment Currency: USD, EUR, JPY, AUD, HKD, GBP, CNY
Accepted Payment Type: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Languages Spoken: English, Chinese
