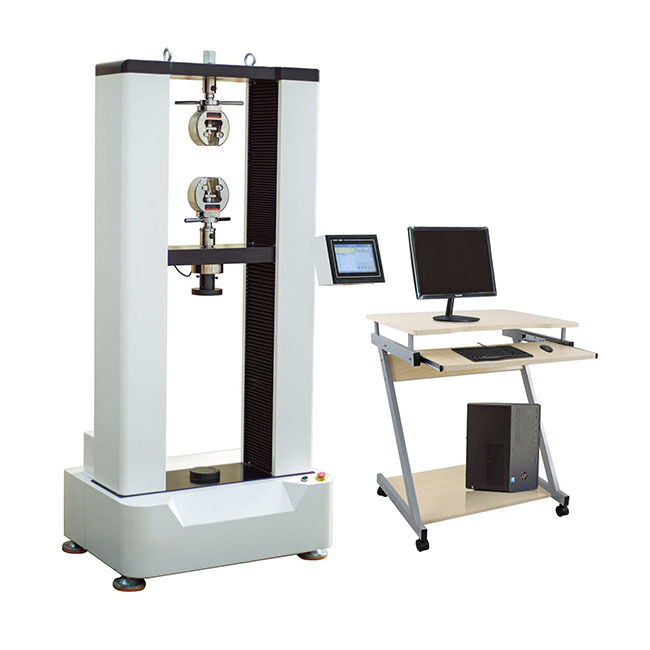

200kN Metal Steel Tensile Testing Machine
Servo-controlled tensile testing machine with computer software, compliant with ISO 6892 and ASTM E8 standards for metal and steel testing applications.
Technical Specifications
| Control Mode |
Digital Display System |
| Model |
YYS-5D |
YYS-10D |
YYS-20D |
YYS-30D |
YYS-50D |
YYS-100D |
| Max Load |
5KN |
10KN |
20KN |
30KN |
50KN |
100KN |
| Load Accuracy |
Grade 1 |
| Test Range |
2-100%FS |
| Tensile/Compression Space |
800mm |
789mm |
750mm |
650mm |
- |
- |
| Test Width |
300mm |
315mm |
400mm |
410mm |
- |
- |
| Deformation Accuracy |
≤±1% |
| Displacement Resolution |
0.01m |
| Crosshead Speed Range |
0.001～500mm/min |
| Overall Dimensions (L*W*H) |
420*300*1500mm |
663*430*1700mm |
770*500*1830mm |
800*500*1950mm |
- |
- |
| Power |
0.3kw |
0.75kw |
1kw |
- |
- |
- |
| Operating Temperature |
0 to +38°C (+32 to +100°F) |
| Humidity Range |
10% to 90% non-condensing |
NOTE:
- Extra wide and/or extra height frames are available
- Power supply system is completely customizable
