50kN Metal Alloy Tensile Testing Machine with Extensometer Yield Strength Young Modulus Test

50kN Metal Alloy Tensile Testing Machine with Extensometer Yield Strength Young Modulus Test

50kN metal alloy tensile tester

tensile testing machine with extensometer

yield strength modulus test machine

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YYD-30D

Contact Us
Request A Quote
Product Details
Max Load:
30kn
Load Accuracy:
Grade 1 Or Grade 0.5
Test Range:
2-100%FS Or 0.4-100%FS
Load Resolution:
1/500000FS
Test Control Mode:
3 Closed Loop Control, Stress, Strain And Displacement
Tensile/ Compression Space:
750mm
Test Width:
400mm
Deformation Accuracy:
≤±1%
Displacement Resolution:
0.01mm
Crosshead Speed Range:
0.001~500mm/min
Overall Dimensions (L*W*H):
770*500*1830mm
Power:
0.75kw
Supply Voltage:
1P 220V±10%,50-60HZ,500W
N.W.:
300kg
Operating Temperature:
0 To +38°C (+32 To +100°F)
Humidity Range:
10% To 90% Non-condensing
Highlight:

50kN metal alloy tensile tester

,

tensile testing machine with extensometer

,

yield strength modulus test machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
pending
Packaging Details
Plywood Box
Delivery Time
5-10 work days
Payment Terms
T/T, L/C, Western Union
Supply Ability
200 sets per month
Product Description

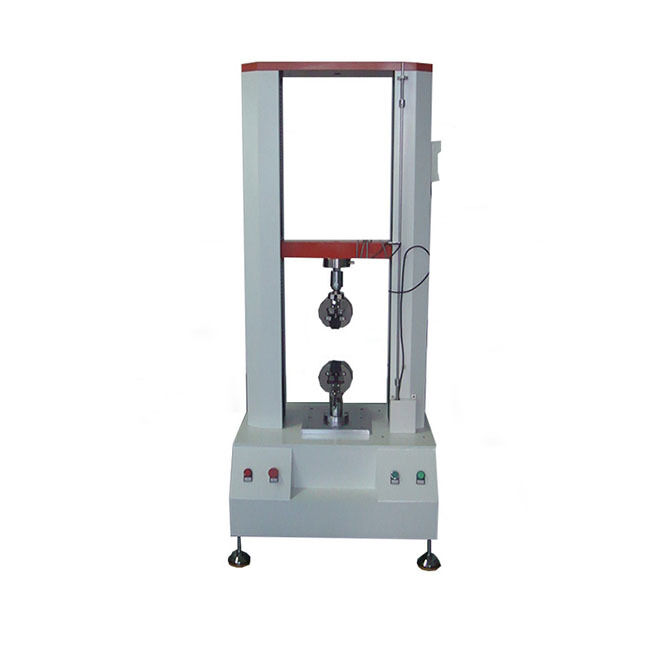

50kN Metal Alloy Tensile Testing Machine with Extensometer
Professional tensile testing system for measuring yield strength and Young's modulus of metal alloys and other materials with precision extensometer technology.
50kN Metal Alloy Tensile Testing Machine with Extensometer Yield Strength Young Modulus Test 0 50kN Metal Alloy Tensile Testing Machine with Extensometer Yield Strength Young Modulus Test 1 50kN Metal Alloy Tensile Testing Machine with Extensometer Yield Strength Young Modulus Test 2 50kN Metal Alloy Tensile Testing Machine with Extensometer Yield Strength Young Modulus Test 3 50kN Metal Alloy Tensile Testing Machine with Extensometer Yield Strength Young Modulus Test 4 50kN Metal Alloy Tensile Testing Machine with Extensometer Yield Strength Young Modulus Test 5
Technical Specifications
Control Mode Digital Display System
Model YYS-5D YYS-10D YYS-20D YYS-30D YYS-50D YYS-100D
Max Load 5KN 10KN 20KN 30KN 50KN 100KN
Load Accuracy Grade 1
Test Range 2-100%FS
Tensile/Compression Space 800mm 789mm 750mm 650mm - -
Test Width 300mm 315mm 400mm 410mm - -
Deformation Accuracy ≤±1%
Displacement Resolution 0.01m
Crosshead Speed Range 0.001~500mm/min
Overall Dimensions (L*W*H) 420*300*1500mm 663*430*1700mm 770*500*1830mm 800*500*1950mm - -
Power 0.3kw 0.75kw 1kw - - -
Operating Temperature 0 to +38°C (+32 to +100°F)
Humidity Range 10% to 90% non-condensing
Important Notes:
  • Extra wide and/or extra height frames are available
  • Power supply system is completely customizable
