Name: Digital Metal Tensile Tester 200kN Servo Motor Dual Column Computer Controlled Lab Equipment
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYD-30D
Price: 25,000.00 USD
Availability: InStock

Home > Products > Tensile Testing Machine >

Digital Metal Tensile Tester 200kN Servo Motor Dual Column Computer Controlled Lab Equipment

200kN digital tensile tester

dual column tensile testing machine

servo motor lab equipment

Place of Origin:

China

Brand Name:

YUYANG

Certification:

Model Number:

YYD-30D

Request A Quote

Digital Metal Tensile Tester 200kN Servo Motor Dual Column Computer Controlled Lab Equipment

Product Details

Max Load:

30kn

Load Accuracy:

Grade 1 Or Grade 0.5

Test Range:

2-100%FS Or 0.4-100%FS

Load Resolution:

1/500000FS

Test Control Mode:

3 Closed Loop Control, Stress, Strain And Displacement

Tensile/ Compression Space:

750mm

Test Width:

400mm

Deformation Accuracy:

≤±1%

Displacement Resolution:

0.01mm

Crosshead Speed Range:

0.001～500mm/min

Overall Dimensions (L*W*H):

770*500*1830mm

Power:

0.75kw

Supply Voltage:

1P 220V±10%,50-60HZ,500W

N.W.:

300kg

Operating Temperature:

0 To +38°C (+32 To +100°F)

Humidity Range:

10% To 90% Non-condensing

Highlight:

200kN digital tensile tester

dual column tensile testing machine

servo motor lab equipment

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

pending

Packaging Details

Plywood Box

Delivery Time

5-10 work days

Payment Terms

T/T, L/C, Western Union

Supply Ability

200 sets per month

Textile Fabric Tensile Testing Machine 10kN with Constant Rate of Extension CRE ASTM ISO

Get Best Price

Geotextile Tensile Testing Machine 50kN 100kN Wide Specimen Grip ASTM D4595 ISO 10319

Get Best Price

500kN High Capacity Tensile Testing Machine for Heavy Metal Steel Structural Material Testing

Get Best Price

Film Packaging Tensile Tester 5kN ASTM D882 D1708 for PE PP PVC Polyester Film Lab

Get Best Price

8613825729462

sales03@yuyangtest.com

86-769-26622869

Contact Now

Product Description

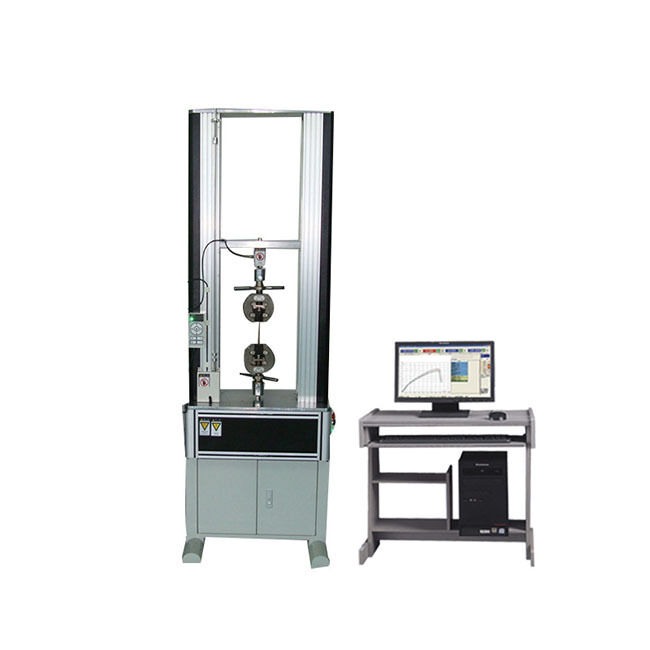

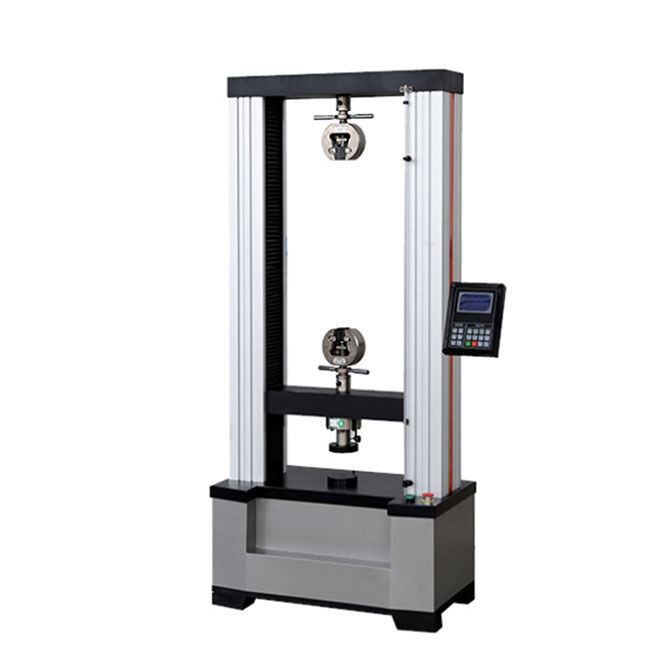

Digital Metal Tensile Tester 200kN Servo Motor Dual Column Computer Controlled Lab Equipment

Advanced digital metal tensile testing system featuring servo motor control and dual column design for precise material testing in laboratory environments.

Technical Specifications

Control Mode	Digital Display System
Model	YYS-5D \| YYS-10D \| YYS-20D \| YYS-30D \| YYS-50D \| YYS-100D
Max Load	5KN \| 10KN \| 20KN \| 30KN \| 50KN \| 100KN
Load Accuracy	Grade 1
Test Range	2-100%FS
Tensile/Compression Space	800mm \| 789mm \| 750mm \| 650mm \| -
Test Width	300mm \| 315mm \| 400mm \| 410mm \| -
Deformation Accuracy	≤±1%
Displacement Resolution	0.01m
Crosshead Speed Range	0.001～500mm/min
Overall Dimensions (LWH)	4203001500mm \| 6634301700mm \| 7705001830mm \| 8005001950mm \| -
Power	0.3kw \| 0.75kw \| 1kw \| -
Operating Temperature	0 to +38°C (+32 to +100°F)
Humidity Range	10% to 90% non-condensing

Important Notes:

Extra wide and/or extra height frames are available
Power supply system is completely customizable
