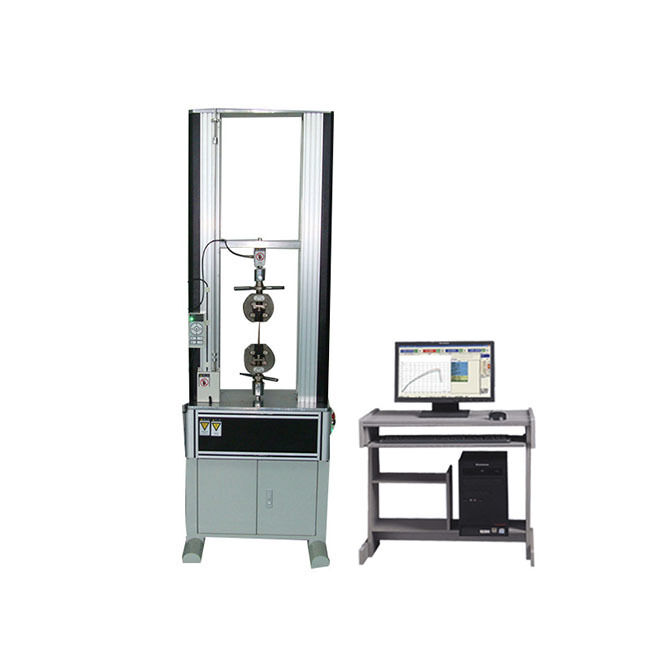

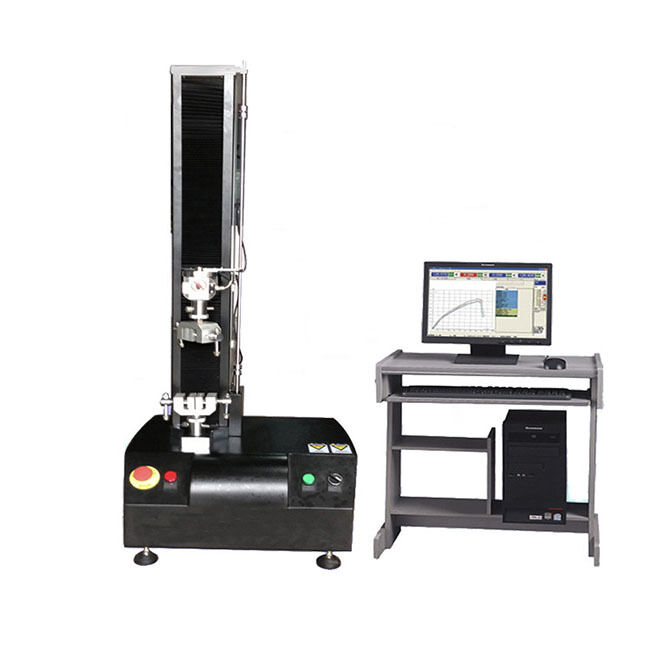

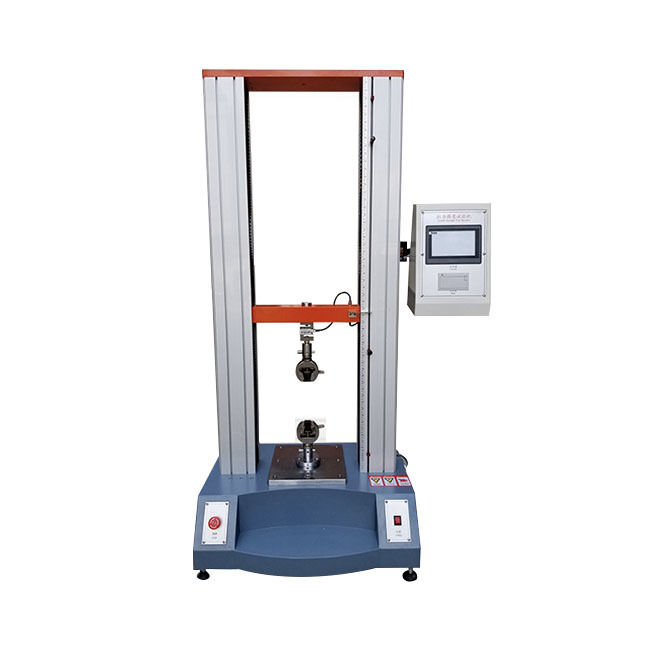

Textile Tensile Testing Machine 5kN 10kN ASTM D5035 ISO 13934
Professional tensile testing equipment designed for fabric, yarn, and fiber materials, compliant with ASTM D5035 and ISO 13934 standards.
Technical Specifications
| Control Mode |
Digital Display System |
| Model |
YYS-5D | YYS-10D | YYS-20D | YYS-30D | YYS-50D | YYS-100D |
| Max Load |
5KN | 10KN | 20KN | 30KN | 50KN | 100KN |
| Load Accuracy |
Grade 1 |
| Test Range |
2-100%FS |
| Tensile/Compression Space |
800mm | 789mm | 750mm | 650mm | - |
| Test Width |
300mm | 315mm | 400mm | 410mm | - |
| Deformation Accuracy |
≤±1% |
| Displacement Resolution |
0.01m |
| Crosshead Speed Range |
0.001～500mm/min |
| Overall Dimensions (L*W*H) |
420*300*1500mm | 663*430*1700mm | 770*500*1830mm | 800*500*1950mm | - |
| Power |
0.3kw | 0.75kw | 1kw | - |
| Operating Temperature |
0 to +38°C (+32 to +100°F) |
| Humidity Range |
10% to 90% non-condensing |
NOTE:
1. Extra wide and/or extra height frames are available.
2. Power supply system is completely customizable.
