Wire Cable Tensile Testing Machine 5kN 10kN 50kN Pull Force Break Strength Test CE ASTM

Wire Cable Tensile Testing Machine 5kN 10kN 50kN Pull Force Break Strength Test CE ASTM

5kN wire cable tensile tester

CE ASTM tensile testing machine

50kN pull force strength tester

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YYD-30D

Contact Us
Request A Quote
Wire Cable Tensile Testing Machine 5kN 10kN 50kN Pull Force Break Strength Test CE ASTM Wire Cable Tensile Testing Machine 5kN 10kN 50kN Pull Force Break Strength Test CE ASTM Wire Cable Tensile Testing Machine 5kN 10kN 50kN Pull Force Break Strength Test CE ASTM
Product Details
Max Load:
30kn
Load Accuracy:
Grade 1 Or Grade 0.5
Test Range:
2-100%FS Or 0.4-100%FS
Load Resolution:
1/500000FS
Test Control Mode:
3 Closed Loop Control, Stress, Strain And Displacement
Tensile/ Compression Space:
750mm
Test Width:
400mm
Deformation Accuracy:
≤±1%
Displacement Resolution:
0.01mm
Crosshead Speed Range:
0.001～500mm/min
Overall Dimensions (L*W*H):
770*500*1830mm
Power:
0.75kw
Supply Voltage:
1P 220V±10%,50-60HZ,500W
N.W.:
300kg
Operating Temperature:
0 To +38°C (+32 To +100°F)
Humidity Range:
10% To 90% Non-condensing
Highlight:

5kN wire cable tensile tester

,

CE ASTM tensile testing machine

,

50kN pull force strength tester

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
pending
Packaging Details
Plywood Box
Delivery Time
5-10 work days
Payment Terms
T/T, L/C, Western Union
Supply Ability
200 sets per month
RELATED PRODUCTS
Good price Textile Fabric Tensile Testing Machine 10kN with Constant Rate of Extension CRE ASTM ISO online

Textile Fabric Tensile Testing Machine 10kN with Constant Rate of Extension CRE ASTM ISO

Get Best Price
Good price Geotextile Tensile Testing Machine 50kN 100kN Wide Specimen Grip ASTM D4595 ISO 10319 online

Geotextile Tensile Testing Machine 50kN 100kN Wide Specimen Grip ASTM D4595 ISO 10319

Get Best Price
Good price 500kN High Capacity Tensile Testing Machine for Heavy Metal Steel Structural Material Testing online

500kN High Capacity Tensile Testing Machine for Heavy Metal Steel Structural Material Testing

Get Best Price
Good price Film Packaging Tensile Tester 5kN ASTM D882 D1708 for PE PP PVC Polyester Film Lab online

Film Packaging Tensile Tester 5kN ASTM D882 D1708 for PE PP PVC Polyester Film Lab

Get Best Price
Contact Us
8613825729462
sales03@yuyangtest.com
86-769-26622869
Contact Now
Product Description

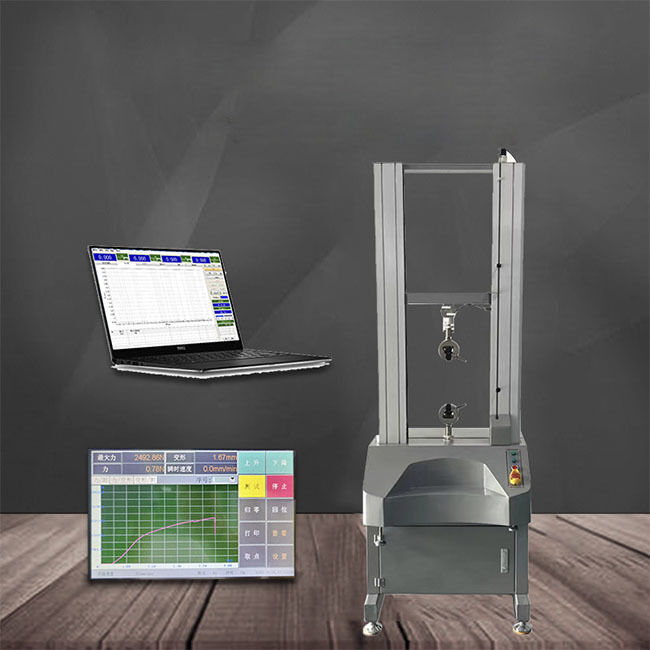

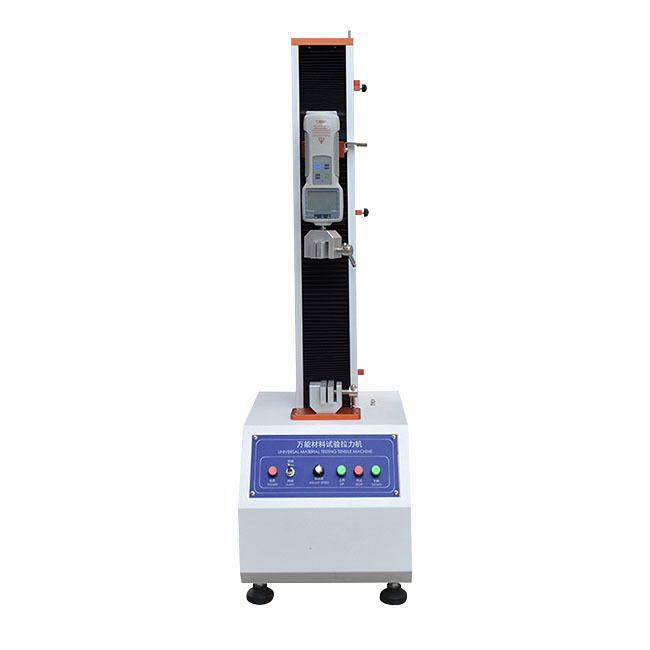

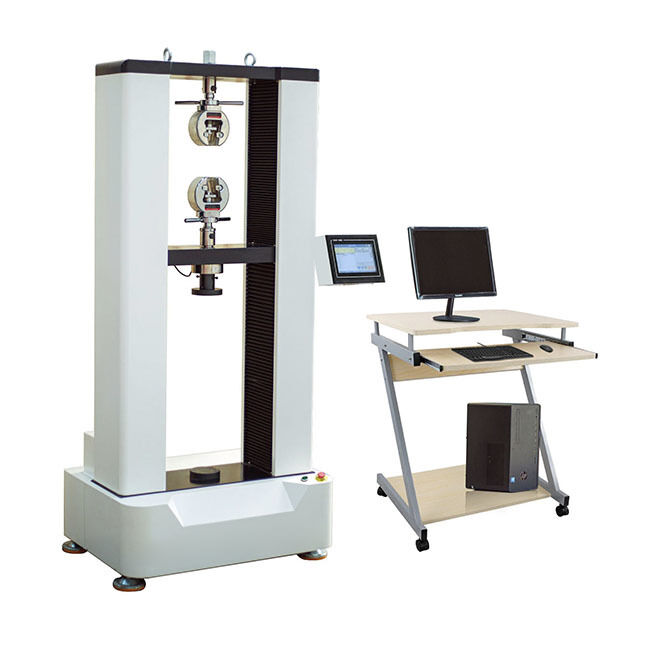

Wire Cable Tensile Testing Machine
Professional tensile testing equipment for wire and cable applications with capacities ranging from 5kN to 100kN. Certified to CE and ASTM standards for reliable break strength and pull force testing.
Wire Cable Tensile Testing Machine 5kN 10kN 50kN Pull Force Break Strength Test CE ASTM 0
Wire Cable Tensile Testing Machine 5kN 10kN 50kN Pull Force Break Strength Test CE ASTM 1
Wire Cable Tensile Testing Machine 5kN 10kN 50kN Pull Force Break Strength Test CE ASTM 2
Wire Cable Tensile Testing Machine 5kN 10kN 50kN Pull Force Break Strength Test CE ASTM 3
Wire Cable Tensile Testing Machine 5kN 10kN 50kN Pull Force Break Strength Test CE ASTM 4
Wire Cable Tensile Testing Machine 5kN 10kN 50kN Pull Force Break Strength Test CE ASTM 5
Technical Specifications
Control System
Digital Display System with Grade 1 Load Accuracy
Specification YYS-5D YYS-10D YYS-20D YYS-30D YYS-50D YYS-100D
Max Load 5KN 10KN 20KN 30KN 50KN 100KN
Tensile/Compression Space 800mm 789mm 750mm 650mm - -
Test Width 300mm 315mm 400mm 410mm - -
Overall Dimensions (L*W*H) 420*300*1500mm 663*430*1700mm 770*500*1830mm 800*500*1950mm - -
Power 0.3kw 0.75kw 1kw - - -
Performance Specifications
  • Test Range: 2-100% FS
  • Deformation Accuracy: ≤±1%
  • Displacement Resolution: 0.01m
  • Crosshead Speed Range: 0.001～500mm/min
  • Operating Temperature: 0 to +38°C (+32 to +100°F)
  • Humidity Range: 10% to 90% non-condensing
Note: Extra wide and/or extra height frames are available. Power supply system is completely customizable.
Company Profile & Services
About Our Company
Established in 2018 and based in Guangdong, China, we serve global markets including South Asia (20%), Eastern Asia (20%), Domestic Market (15%), Southeast Asia (15%), Eastern Europe (10%), North America (10%), Oceania (5%), and Western Europe (5%). Our team consists of 11-50 dedicated professionals.
Quality Assurance
  • Pre-production samples provided before mass production
  • Final inspection conducted before shipment
Product Range
We specialize in: Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, and Wire and Cable Test Machines.
Why Choose Us
As a high-tech enterprise, we specialize in developing and manufacturing comprehensive testing solutions including Fire Testing Equipment, Building Material Fire Testers, Wire and Cable Fire Testers, Environmental Test Chambers, Textile Testing Equipment, and Toys Testing Equipment.
Services Provided
  • Delivery Terms: FOB, CFR, CIF, EXW
  • Payment Currencies: USD, EUR, JPY, AUD, HKD, GBP, CNY
  • Payment Methods: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
  • Languages: English, Chinese
