220V Salt Spray Corrosion Test Chamber
Professional salt fog tester for electroplating coating surface testing and material corrosion resistance evaluation.
Product Overview
The Salt Spray Test Chamber YY60 is engineered to evaluate corrosion resistance performance of coatings, electroplated surfaces, metal materials, and anti-rust treatments. This chamber simulates salt spray environments to accelerate corrosion testing, helping manufacturers assess product durability and surface protection quality.
Compliance Standards
This salt water spray test chamber complies with multiple international standards for CASS and NSS testing:
- GB/T 2423.17-1993 salt spray test
- GB/T 2423.18-2000 salt spray test
- GB/T 10125-1997 salt spray test
- ASTM.B117-97 salt spray test
- JIS H8502 salt spray test
- IEC68-2-11 salt spray test
- IEC68-2-52 1996 salt spray test
- GB.10587-89 salt spray test
- CNS.4158 salt spray test
- CNS.4159 CASS Accelerated acetic acid copper salt spray test
- GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test

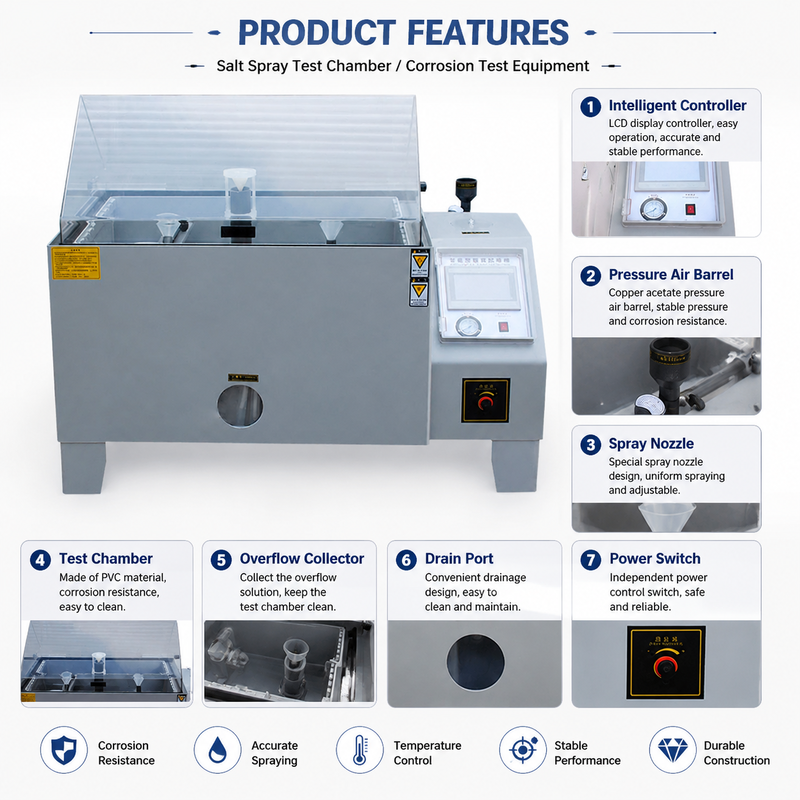

Key Features
Transparent Observation Cover
- High-quality transparent materials for clear sample visibility
- Real-time monitoring of spray distribution and sample conditions
- Easy inspection without opening the chamber
Leak-Proof Sealing Design
- Waterproof sealing between chamber cover and body
- Prevents salt spray leakage for controlled test environment
- Enhances operator safety and maintains consistent conditions
Advanced Spraying System
- Tower-type spray nozzle for uniform salt mist distribution
- Built-in salt solution filtration to prevent clogging
- Non-crystallizing nozzle ensures long-lasting performance
- Adjustable spray settlement for customized test conditions
Structural Benefits
- Corrosion-resistant interior for harsh test environments
- Sturdy construction withstands continuous salt exposure
- Ergonomic design for easy sample placement and maintenance
Technical Specifications
| Model |
YY1015-60 |
YY1015-90 |
YY1015-120 |
| Inner box size (L×W×H) cm |
60×40×45 |
90×60×50 |
120×100×50 |
| Outside box size (L×W×H) cm |
107×60×118 |
141×88×128 |
190×130×140 |
| Equipment material |
P.V.C & P.P |
| Temperature range |
35°C~55°C |
| Temperature fluctuations |
≤±0.5°C |
| Temperature uniformity |
≤±2°C |
| Temperature precision |
±1°C |
| Test chamber temperature |
NSS ACSS 35±1°C CASS: 50±1°C |
| Saturated air barrel temperature |
NSS ACSS 47±1°C CASS 63±1°C |
| Brine temperature |
35°C±1°C |
| Spray quantity |
1.0~2.0 ml / 80cm² / hr |
| PH |
NSS ACSS 6.5~7.2 CASS 3.0~3.2 |
| Lab volume |
108L |
270L |
600L |
| Brine tank capacity |
15L |
25L |
40L |
| Power |
1AC220V, 10A |
1AC220V, 15A |
AC 1, 220V, 30A |
| Safety Devices |
Overheating prevention circuit-breaker, dehydration and overheating prevention mechanism, breakdown indicator light |
| Standard accessories |
Test salt, measure bucket, tool etc 1 set |
Product Specifications
- Durable hard PVC construction
- Anti-corrosion design
- Easy clean & operate
- 1 year warranty
Industry Applications
Automotive Industry
Automobile parts corrosion testing and metal component durability evaluation
Electronics Industry
Electronic components surface protection testing and connector corrosion resistance evaluation
Metal Processing Industry
Electroplating quality inspection and surface treatment evaluation
Coating Industry
Paint and coating corrosion resistance testing
Laboratories & Research Institutes
Material analysis and quality control testing

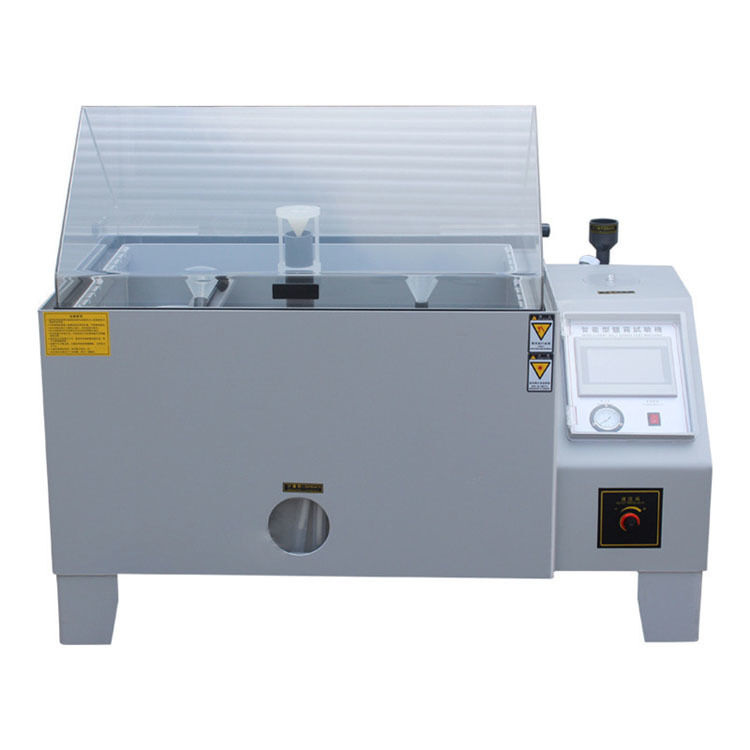

Product Images
