Coating Salt Spray Tester
Professional laboratory equipment for evaluating paint adhesion and anti-corrosion performance through accelerated salt spray testing.
Product Overview
The Salt Spray Test Chamber is engineered to assess corrosion resistance properties of coatings, electroplated finishes, metallic materials, and anti-rust treatments. By replicating salt spray conditions to accelerate corrosion processes, it enables manufacturers to evaluate product service life and the effectiveness of surface protection.
Compliance Standards
This salt water spray test chamber complies with multiple international standards for CASS and NSS testing:
- GB/T 2423.17-1993 salt spray test
- GB/T 2423.18-2000 salt spray test
- GB/T 10125-1997 salt spray test
- ASTM.B117-97 salt spray test
- JIS H8502 salt spray test
- IEC68-2-11 salt spray test
- IEC68-2-52 1996 salt spray test
- GB.10587-89 salt spray test
- CNS.4158 salt spray test
- CNS.4159 CASS Accelerated acetic acid copper salt spray test
- GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
Key Features
Transparent Observation Cover
- High-quality transparent materials for clear sample visibility
- Real-time monitoring of spray distribution and sample conditions
- Easy inspection without opening the chamber
Leak-Proof Sealing Design
- Waterproof sealing between chamber cover and body
- Prevents salt spray leakage for controlled test environment
- Enhances operator safety and maintains consistent conditions
Advanced Spraying System
- Tower-type spray nozzle for uniform salt mist distribution
- Built-in salt solution filtration to prevent clogging
- Non-crystallizing nozzle ensures long-lasting performance
- Adjustable spray settlement for customized test conditions
Structural Benefits
- Corrosion-resistant interior for harsh test environments
- Sturdy construction withstands continuous salt exposure
- Ergonomic design for easy sample placement and maintenance
Technical Specifications
| Model |
YY1015-60 |
YY1015-90 |
YY1015-120 |
| Inner box size (L×W×H) cm |
60×40×45 |
90×60×50 |
120×100×50 |
| Outside box size (L×W×H) cm |
107×60×118 |
141×88×128 |
190×130×140 |
| Equipment material |
P.V.C & P.P |
| Temperature range |
35°C~55°C |
| Temperature fluctuations |
≤±0.5°C |
| Temperature uniformity |
≤±2°C |
| Temperature precision |
±1°C |
| Test chamber temperature |
NSS ACSS 35±1°C CASS: 50±1°C |
| Saturated air barrel temperature |
NSS ACSS 47±1°C CASS 63±1°C |
| Brine temperature |
35°C±1°C |
| Spray quantity |
1.0~2.0 ml / 80cm² / hr |
| PH |
NSS ACSS 6.5~7.2 CASS 3.0~3.2 |
| Lab volume |
108L |
270L |
600L |
| Brine tank capacity |
15L |
25L |
40L |
| Power |
1AC220V, 10A |
1AC220V, 15A |
AC 1, 220V, 30A |
| Safety Devices |
Overheating prevention circuit-breaker, dehydration and overheating prevention mechanism, breakdown indicator light |
| Standard accessories |
Test salt, measure bucket, tool etc 1 set |
Product Specifications
- Durable hard PVC construction
- Anti-corrosion design
- Easy clean & operate
- 1 year warranty
Industry Applications
Automotive Industry
Corrosion Performance Testing of Automotive Parts and Durability Evaluation for Metallic Components
Electronics Industry
Evaluation of Surface Protection Performance for Electronic Components and Corrosion Resistance of Connectors
Metal Processing Industry
Quality Inspection for Electroplating Processes and Evaluation of Surface Treatment Performance
Coating Industry
Evaluation of Corrosion Resistance Performance for Paints and Coatings
Laboratories & Research Institutes
Analysis of Material Properties and Quality Control Verification

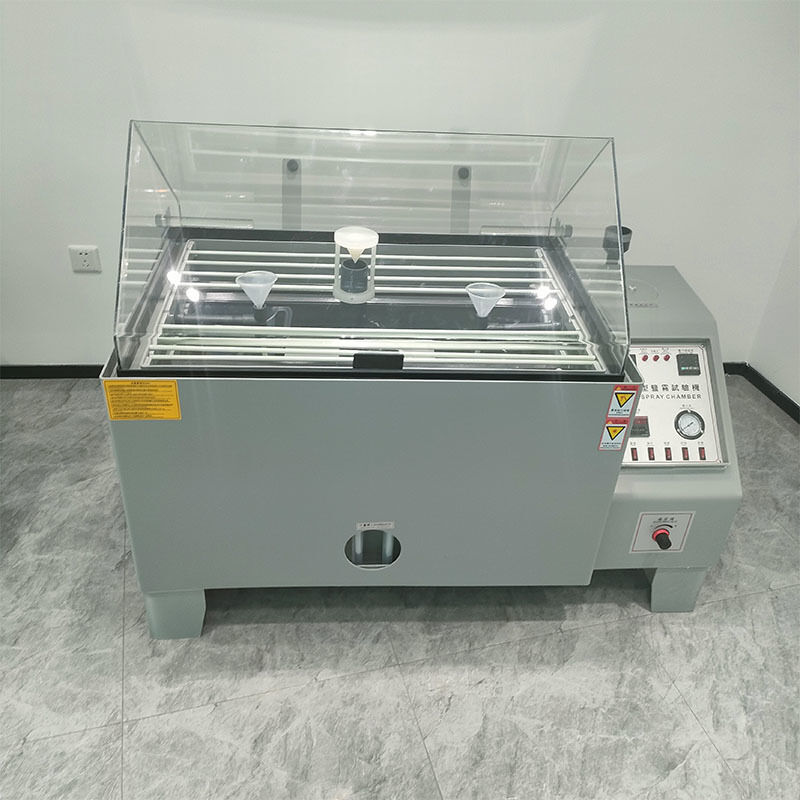

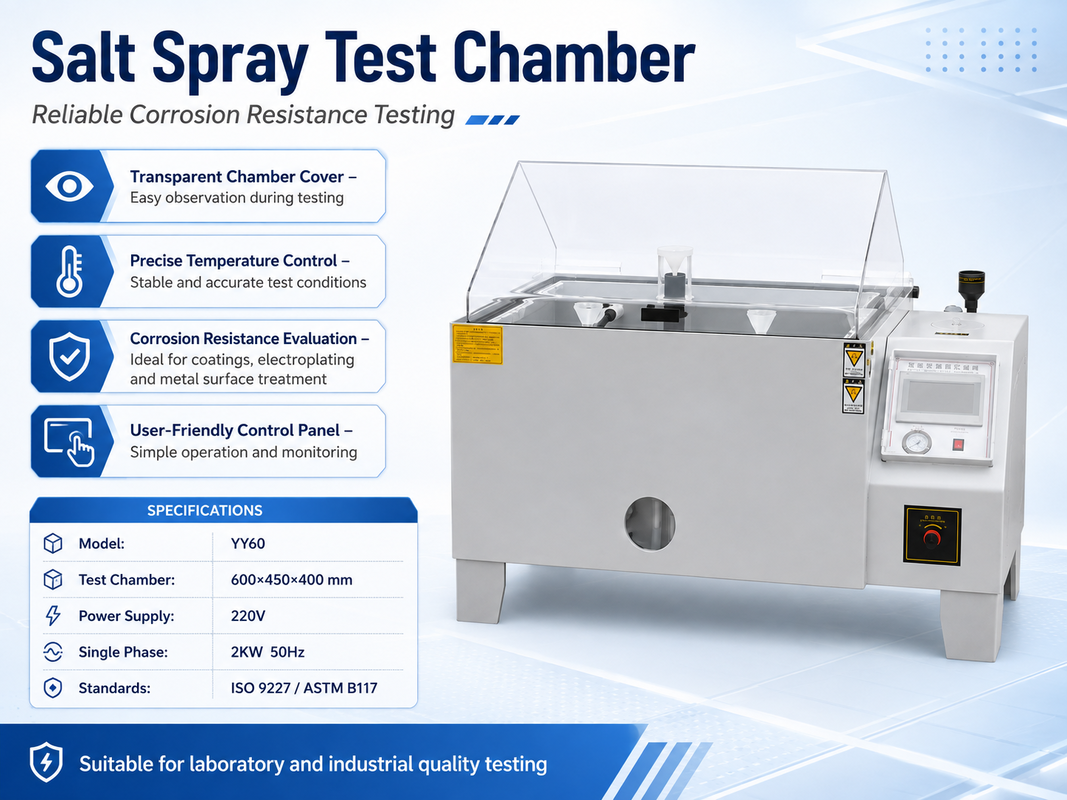

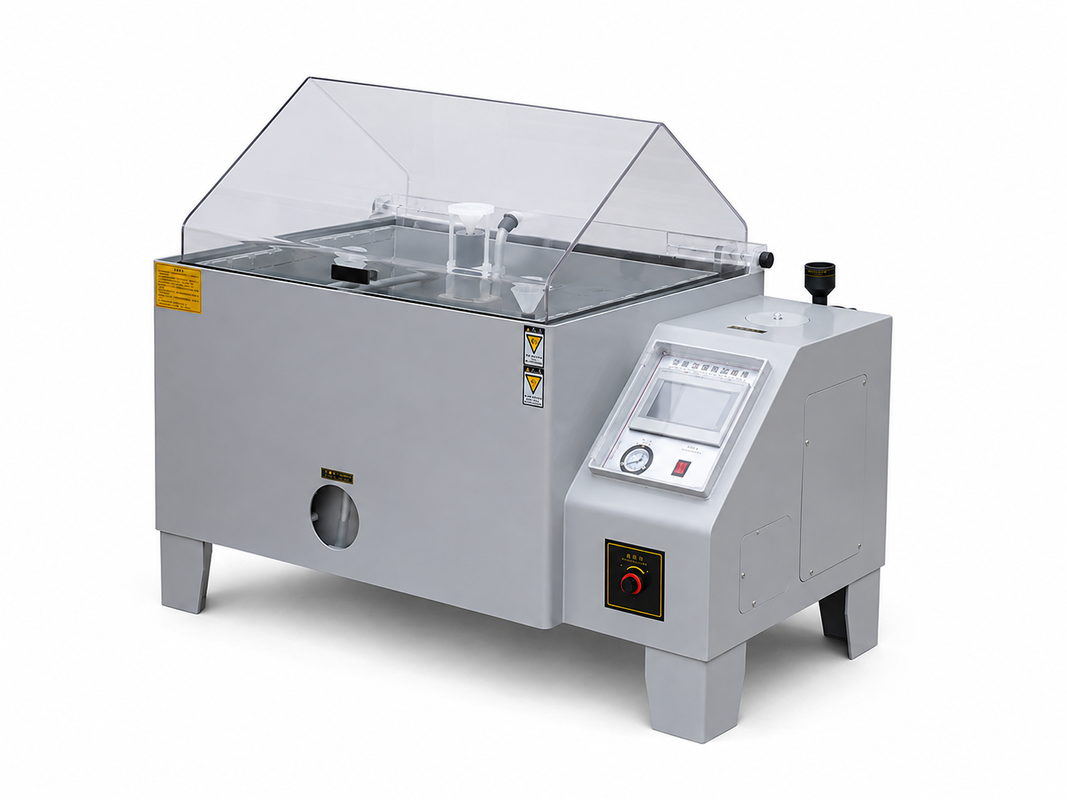

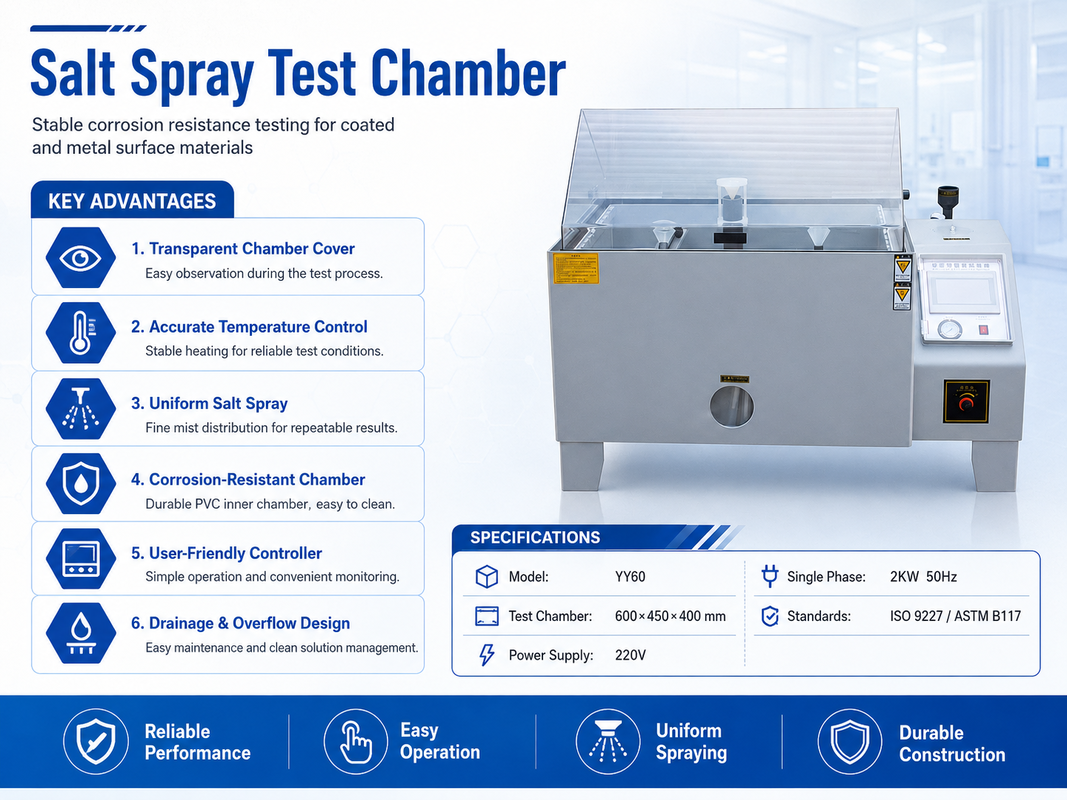

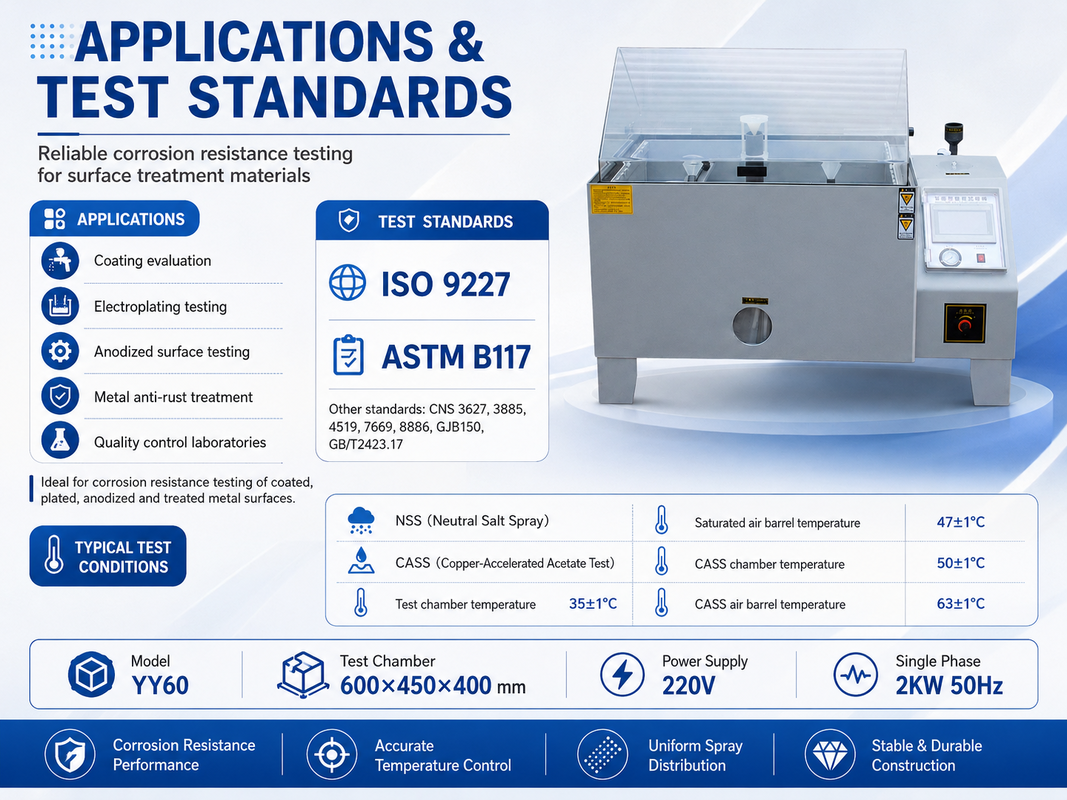

Product Images
