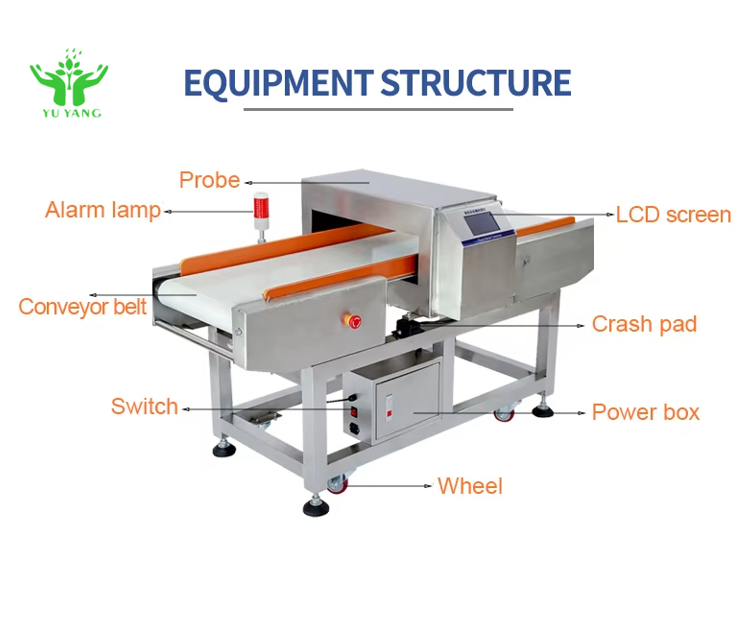

Name: High Sensitivity Industrial Food Metal Detector Conveyor System for Foreign Object Detection
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY056
Price: 2,574.00 USD
Availability: InStock

Home > Products > Textile Testing Equipment >

High Sensitivity Industrial Food Metal Detector Conveyor System for Foreign Object Detection

industrial food metal detector

high sensitivity conveyor system

foreign object detection equipment

Place of Origin:

China

Brand Name:

YUYANG

Certification:

Model Number:

YY056

Request A Quote

Product Details

Detected Height(mm):

300

Belt Width(mm):

400

Belt Length:

1500

Detector Sensitivity(mm):

Fe 1.0mm SUS 2.0mm N-Fe 1.5mm

Speed Of Belt:

25M/min (Fixed Speed) ; If You Need Adjust 5-40 M/min , Please Inform Us Before Order

Load Ability:

20KG

Count:

100

Warning Method:

Sound And Light Alarm ; The Belt Can Be Stopped, Continue Run Or Belt Return ( The Option You Can Selected In PLC Controller)

Reject Ways:

No Auto-reject System ,belt Continue And Rejecting The Goods

Application:

Non-package ,plastic Package ,paper Bag Or Box (non-metallic) Product

Work Environment:

Temperature -10℃-40℃ ,relative Humility 30-90%

Highlight:

industrial food metal detector

high sensitivity conveyor system

foreign object detection equipment

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$2350-$2798

Delivery Time

7-30 Days

Payment Terms

T/T

Food Grade Stainless Steel Automatic Metal Detector Machine for Snacks Food Inspection Production Line

Get Best Price

Video

Automatic Industrial Metal Detector Machine for Food Processing Industry Conveyor Belt Metal Detection System

Get Best Price

Video

Sample Shoe Conveyor Belt Hot Vulcanizing Machine 1.5KW 220V / 380V

Get Best Price

Video

Rubber Plate Vulcanizing Press Testing Machine 380v For Lab Use

Get Best Price

8618938165008

sales11@yuyangtest.com

86-769-26622869

Contact Now

Product Description

High Sensitivity Industrial Food Metal Detector Conveyor System

High Precision Automatic Digital Metal Detector for Foreign Object Detection

Product Specifications

Material	Stainless steel
Machine Length	1600mm
Model Number	YY056
Speed of Belt	25M/min (Fixed speed)
Speed of Transmission	18-40 meter/minute
Customized Support	OEM, ODM, OBM
Type	Laboratory equipment
Sample Plate Angle	0~70°
Dimension	725356cm
Test Accuracy	±2％
Working Speed	0-18 rotate/min can be adjustable
Pressure Source	Air pressure more than Min.5kg/cm²
Size	Customized

Applications & Industries

The through-type fully digital metal detection machine is a new generation intelligent metal detector adopting microcomputer-based technology. Equipped with high detection sensitivity and reliable performance, it addresses the technical challenge whereby the majority of comparable devices are only sensitively responsive to magnetic substances.

Primary Use Cases

Main applications cover sauces, sausages, dumplings, ham, soup, sugar products, pickled and salted food, fast food and diverse non-food industries.

Achieves premium detection performance for high-moisture and frozen commodities. Capable of detecting both ferrous and non-ferrous metals including residual/broken needles, metal wires, lead, copper, aluminium, tin, stainless steel and other metallic contaminants inside food, raw materials and finished products.

Key Features

Dual-Circuit Electromagnetic Detection Technology - Combines advanced analog and digital circuits to improve detection sensitivity, accuracy, and reliability
Intelligent Touch Screen Control - Equipped with modern touch screen and large-scale integrated circuit system for smarter operation
User-Friendly Human-Machine Interface - Supports multi-language operation with clear and intuitive interface
Automatic Learning & Dynamic Zero Tracking - Features dynamic zero-point voltage tracking and automatic learning function
Wide Sensitivity Adjustment Range - Sensitivity can be adjusted according to different products and production requirements
Alarm and Optional Reject Function - Simultaneous sound and light alarm with conveyor stop, continue, or reject options

Technical Parameters

Detected Height (mm)	Belt Width (mm)	Belt Length	Fe Sensitivity (mm)	SUS Sensitivity (mm)	N-Fe Sensitivity (mm)
80	250	1500	0.8	1.0	1.0
100	250		1.0	2.0	1.5
150	400		1.2	2.5	2.0
200	400		1.5	2.5	2.0
250	400		2.0	3.0	2.5
300	400		2.5	3.5	3.0
350	400		3.0	4.0	3.5

Additional Specifications

Speed of belt: 25M/min (Fixed speed); Adjustable 5-40 M/min available upon request
Load ability: 20KG
Count: 100
Warning method: Sound and light alarm with PLC controller options
Reject Ways: Auto-reject system with continuous belt operation
Application: Non-package, plastic package, paper bag or box (non-metallic) products
Work Environment: Temperature -10℃-40℃, relative humidity 30-90%

Advanced Technology Features

Balance theory implementation for enhanced reliability
Phase-adapted technology to effectively eliminate product effect
Self-learning function with automatic digital learning and storage of product features
Easy operation without manual adjustment of technical parameters
