Double Layer Programmable High And Low Temperature Chamber

Double Layer Programmable High And Low Temperature Chamber

Double Layer Temperature Chamber

Programmable High Low Temperature Chamber

Environmental Test Chamber with Warranty

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YYE009

Contact Us
Request A Quote
Double Layer Programmable High And Low Temperature Chamber
Double Layer Programmable High And Low Temperature Chamber Double Layer Programmable High And Low Temperature Chamber Double Layer Programmable High And Low Temperature Chamber
Product Details
Product Name:
Dual-Layer High-Low Temperature Test Chamber
Capacity (L):
80, 150
Temperature Range:
-70℃~150℃
Humidity Range:
20%-98%R.H
Heating Rate:
3℃~5℃/min
Cooling Rate:
0.7℃~1℃/min
Material:
SUS#304 Stainless Steel For Inner Chamber; Carton Advanced Cold Plate Nano Paint For Outer
Application:
Programmable Environmental Testing
Highlight:

Double Layer Temperature Chamber

,

Programmable High Low Temperature Chamber

,

Environmental Test Chamber with Warranty

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Plywood Case
Delivery Time
7 working days
Payment Terms
T/T
Supply Ability
25 sets per month
RELATED PRODUCTS
Good price Programmable Climate Simulation Chamber for Temperature Humidity Reliability Testing Laboratory Equipment online Video

Programmable Climate Simulation Chamber for Temperature Humidity Reliability Testing Laboratory Equipment

Get Best Price
Good price Double Layer Programmable High And Low Temperature Chamber online Video

Double Layer Programmable High And Low Temperature Chamber

Get Best Price
Good price High Precision 220V Programmable Climate Chamber for Test Cabinet 1-Year Constant Temperature Humidity Machine online Video

High Precision 220V Programmable Climate Chamber for Test Cabinet 1-Year Constant Temperature Humidity Machine

Get Best Price
Good price 360° Uniform Spray Electronic Salt Spray Tester for Aerospace Test online

360° Uniform Spray Electronic Salt Spray Tester for Aerospace Test

Get Best Price
Contact Us
+86-13825723571
sales002@yuyangtest.com
86-769-26622869
Contact Now
Product Description
Double Layer Programmable High And Low Temperature Chamber

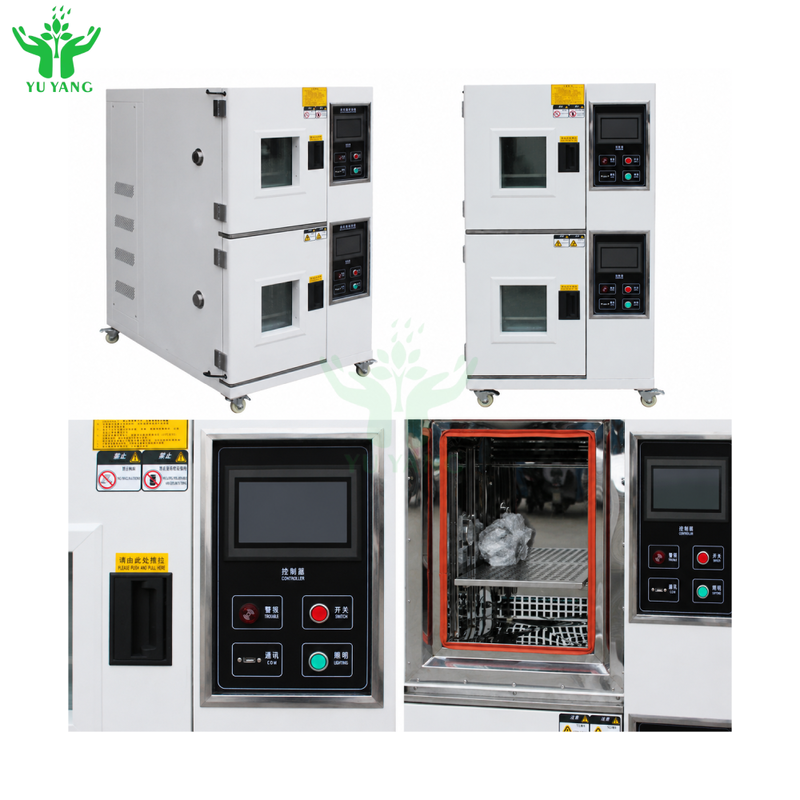

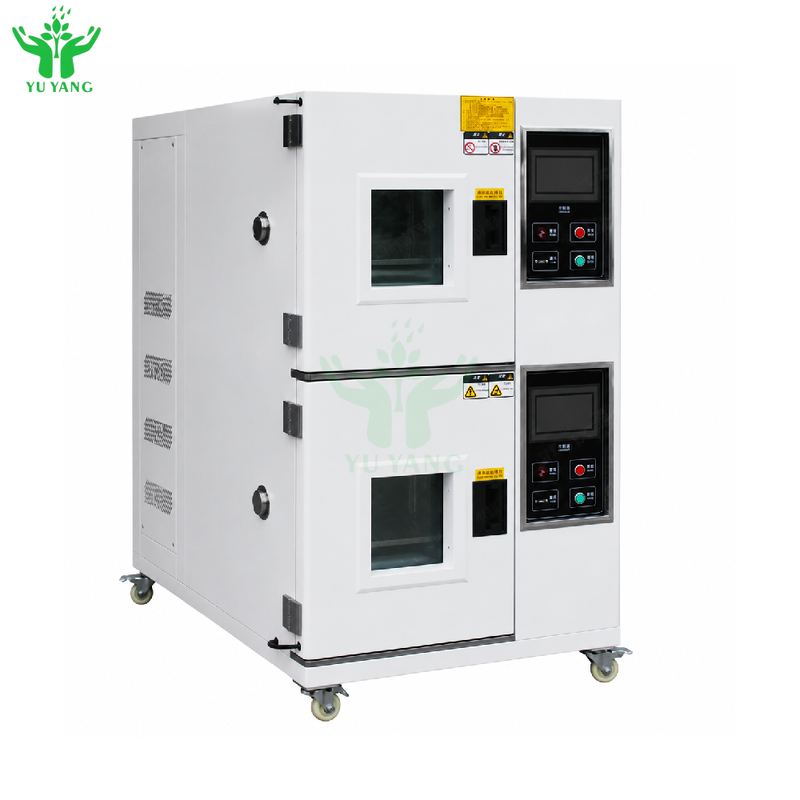

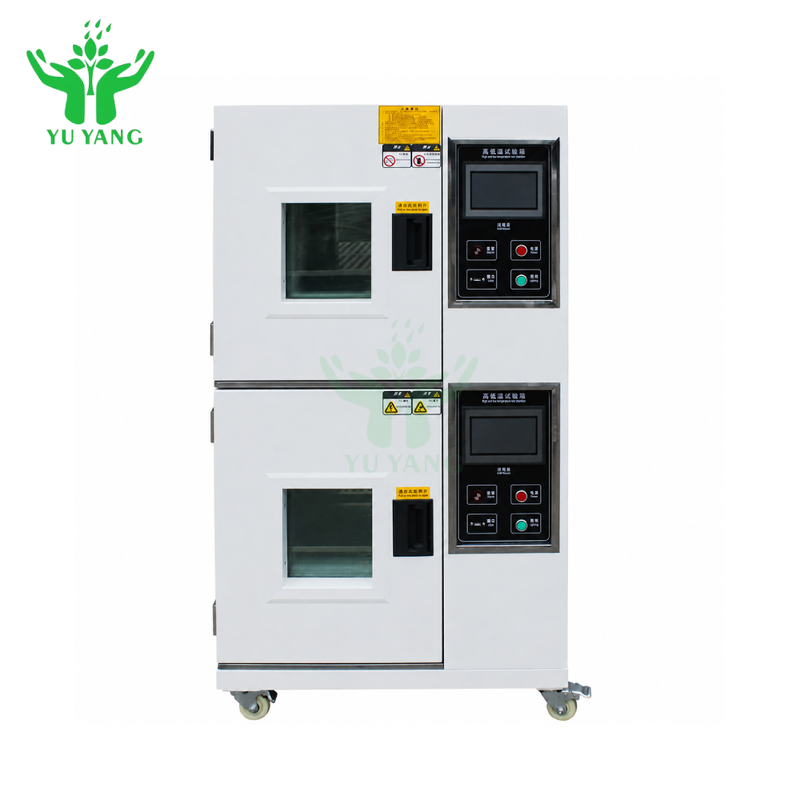

Double Layer Programmable High And Low Temperature Chamber - Front View
Product Overview
The Double Layer High and Low Temperature Chamber is specialized environmental test equipment designed for reliability aging tests. It features two independent testing compartments that can simulate and cycle through extreme high and low temperature conditions simultaneously. This chamber is widely used in industries including 4G communications, electronic components, new energy vehicle batteries, and aerospace applications.
Key Features
  • Space-saving design for laboratory efficiency
  • Independent operation of double layer chambers for batch testing of small products
  • Cost-effective multi-layer design with shared shell and refrigeration system
  • Customizable top and bottom chamber sizes to meet specific customer requirements
Technical Specifications
Parameter Specification
Inner Size W×H×D: 300×500×400 mm (2 separate control boxes) or custom size
Outer Size W×H×D: 1150×2050×780 mm
Temperature Range -40℃ to +100℃
Humidity Range 20% RH to 98% RH
Control Stability Temperature ±0.5℃; Humidity ±2%
Distribution Uniformity Temperature ±2.0℃; Humidity ±3.0%
Heating Rate 3℃/min (from -40℃ to 30℃ for about 25 minutes) Non-linear no-load
Cooling Rate 1℃/min (from 30℃ to -40℃ about 70 minutes) Non-linear no-load
Temperature Limit Maximum temperature +100℃; Minimum temperature -40℃
Application Areas
  • Batteries/New Energy: High- and low-temperature charge/discharge testing, safety performance verification, and cycle life testing for individual cells and battery modules
  • Electronics and Electrical Equipment: Cold, heat, and dry resistance testing, as well as environmental stress screening (ESS) for PCBs, electronic components, and connectors
  • Automotive Electronics: High-low temperature cycling tests for in-vehicle sensors, controllers, instrument panels, and other components
  • 4G Communication Equipment: Reliability verification of base station equipment and communication modules under varying temperature conditions
  • Aerospace: Temperature adaptation testing for airborne electronic equipment, instruments, and small structural components
  • Materials/Chemicals: High-low temperature storage tests and weather resistance evaluation for plastics, rubber, and metallic materials
  • Medical: Stability testing for medical devices and equipment
Double Layer Programmable High And Low Temperature Chamber - Internal View
