Home > Products > Environmental Test Chamber >

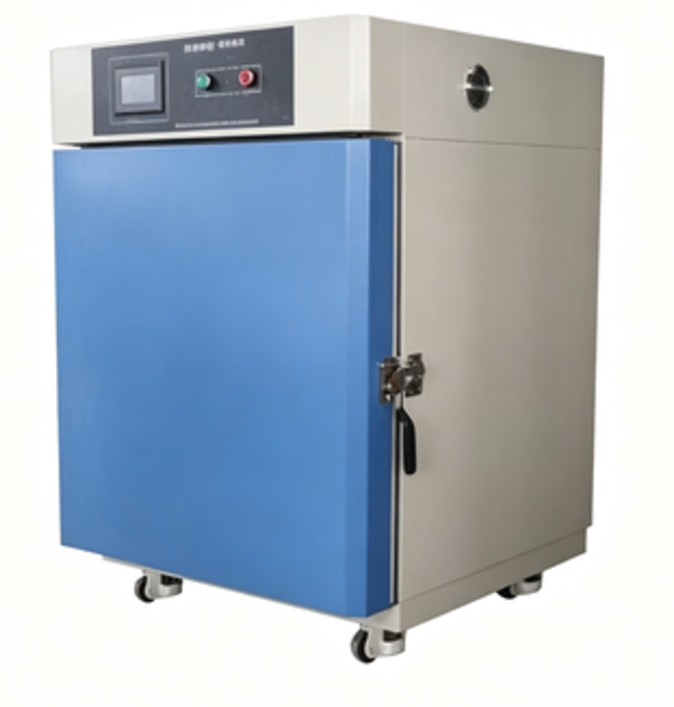

YYE-001 SUS304 Stainless Steel Environmental Test Chamber with Digital PID Temperature Controller and Ambient ~+250℃ Temperature Range

YYE-001 SUS304 Stainless Steel Environmental Test Chamber with Digital PID Temperature Controller and Ambient ~+250℃ Temperature Range

SUS304 Stainless Steel Environmental Test Chamber

Digital PID Temperature Controller Industrial Drying Oven

Ambient ~+250℃ Temperature Range Hot Air Circulating Oven

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYE-001-100

Contact Us
Request A Quote
YYE-001 SUS304 Stainless Steel Environmental Test Chamber with Digital PID Temperature Controller and Ambient ~+250℃ Temperature Range YYE-001 SUS304 Stainless Steel Environmental Test Chamber with Digital PID Temperature Controller and Ambient ~+250℃ Temperature Range YYE-001 SUS304 Stainless Steel Environmental Test Chamber with Digital PID Temperature Controller and Ambient ~+250℃ Temperature Range
Product Details
Model:
YYE-001-100
Internal Dimensions (mm)":
400*500*500
Overall Dimensions (mm)":
750*880*850
Temperature Range":
Ambient ~+250℃;(Ambient ~+400℃;Ambient ~+900 ℃)
Temperature Fluctuations":
±0.5℃
Temperature Deviation":
±2.0℃
Heating Rate:
About 6℃/min
Controller:
Digital PID Temperature Controller
Temperature Sensor":
PTR Platinum Resistance PT100
Heating System":
Nichrome Heater
Exterior Material":
Steel Plate With Protective Coating
Interior Material":
SUS304 Stainless Steel
Timing Function":
0.1~999.9(S,M,H)settable
Highlight:

SUS304 Stainless Steel Environmental Test Chamber

,

Digital PID Temperature Controller Industrial Drying Oven

,

Ambient ~+250℃ Temperature Range Hot Air Circulating Oven

Payment & Shipping Terms
Minimum Order Quantity
1
Price
3999
Packaging Details
Standard Wooden Case
Delivery Time
10 days
Payment Terms
L/C,D/A,D/P,T/T
Supply Ability
15 sets per month
RELATED PRODUCTS
Good price YYE-001 SUS304 Stainless Steel Environmental Test Chamber with Digital PID Temperature Controller and Ambient ~+250℃ Temperature Range online

YYE-001 SUS304 Stainless Steel Environmental Test Chamber with Digital PID Temperature Controller and Ambient ~+250℃ Temperature Range

Get Best Price
Good price ASTM Electronic Salt Spray Test Chamber for Auto Testing 1-Year Warranty Continuous Duty Cycle for Lab Use online Video

ASTM Electronic Salt Spray Test Chamber for Auto Testing 1-Year Warranty Continuous Duty Cycle for Lab Use

Get Best Price
Good price Salt Spray Test Apparatus Environment Testing Machine Price Dry and Wet Compound Salt Spray Test Chamber online Video

Salt Spray Test Apparatus Environment Testing Machine Price Dry and Wet Compound Salt Spray Test Chamber

Get Best Price
Good price Benchtop Constant Temperature and Humidity Test Chamber for Laboratory Environmental Testing online Video

Benchtop Constant Temperature and Humidity Test Chamber for Laboratory Environmental Testing

Get Best Price
Contact Us
8613825729462
sales03@yuyangtest.com
86-769-26622869
Contact Now
Product Description
YYE-001 Stainless Steel Environmental Test Chamber Hot Air Circulating Industrial Drying Oven

The YYE-001 Hot Air Circulating Industrial Drying Oven utilizes steam or electricity as heat sources. Through air heating via heat exchange and employing axial fans as driving power, it effectively reduces moisture content in materials to achieve drying purposes. Widely used in , food manufacturing, light and heavy industries for drying materials and products.

YYE-001 Industrial Drying Oven
Key Characteristics
  • Fine powder coating treatment; Inner SUS201 stainless steel construction
  • High temperature resistant long shaft motor
  • Turbine fan system
  • Silicone forced tight sealing
  • Over-temperature protection with super load automatic power system
  • Air force level circulation system
  • PID+S.S.R. heating system
  • PID microcomputer thermostat with automatic constant temperature and quick temperature compensation
  • Temperature-to-time function with power failure alarm indication
  • Customizable glass window available according to customer specifications
Technical Specifications
Model YYE-001-100
Internal Dimensions (mm) 400 × 500 × 500
Overall Dimensions (mm) 750 × 880 × 850
Temperature Range Ambient ~ +250℃ (Ambient ~ +400℃; Ambient ~ +900℃ options available)
Temperature Fluctuations ±0.5℃
Temperature Deviation ±2.0℃
Heating Rate Approximately 6℃/min
Controller Digital PID Temperature Controller
Temperature Sensor PTR Platinum Resistance PT100
Heating System Nichrome heater
Exterior Material Steel Plate with Protective coating
Interior Material SUS304 stainless steel
Timing Function 0.1 ~ 999.9 (S, M, H) settable

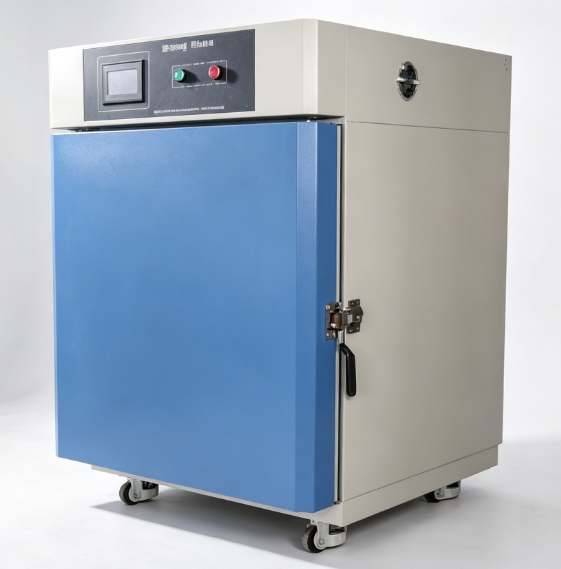

YYE-001 Drying Oven Technical View YYE-001 Drying Oven Operation View
Company Information
About Our Company
Based in Guangdong, China, established in 2018. We serve South Asia (20.00%), Eastern Asia (20.00%), Domestic Market (15.00%), Southeast Asia (15.00%), Eastern Europe (10.00%), North America (10.00%), Oceania (5.00%), and Western Europe (5.00%). Our office employs 11-50 people.
Quality Assurance
Always provide pre-production samples before mass production; Conduct final inspection before shipment.
Product Range
Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, Wire and Cable Test Machines.
Why Choose Us
We are a high-tech enterprise specializing in developing and manufacturing Fire Testing Equipment, Building Material Fire Testers, Wire and Cable Fire Testers, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment and related products.
Services Provided

Delivery Terms: FOB, CFR, CIF, EXW

Payment Currency: USD, EUR, JPY, AUD, HKD, GBP, CNY

Payment Methods: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash

Languages: English, Chinese
