Name: Food X-Ray Foreign Object Detector Machine Automatic Inspection System for Metal Glass Stone Contamination Detection
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY056
Price: 17540 USD
Availability: InStock

Home > Products > Textile Testing Equipment >

Food X-Ray Foreign Object Detector Machine Automatic Inspection System for Metal Glass Stone Contamination Detection

food x-ray metal detector machine

automatic contamination detection system

foreign object detector for glass stone

Place of Origin:

China

Brand Name:

YUYANG

Certification:

Model Number:

YY056

Request A Quote

Product Details

Material:

Stainless Steel

Machine Lenght:

1600mm

Model Number:

YY056

Channel Width:

300mm

Pass Height:

150mm

Customized Support:

OEM, ODM, OBM

Type:

Laboratory Equipment

Detection Mode:

Boxed / Bulk Mode

Supported Data Interface:

USB Interface

Environmental Temperature:

0-45 °C

Industrial Touch Display:

18.5-inch Full-color Touch Screen

Operation Mode:

Touch/External Keyboard

Size:

Customized

Highlight:

food x-ray metal detector machine

automatic contamination detection system

foreign object detector for glass stone

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$17540

Delivery Time

7-30 Days

Payment Terms

T/T

YYF003 Building Material Heat Release Rate Flammability Testing Equipment (Cone Calorimeter)

Get Best Price

YYF004 Building Materials and Products Heat of Combustion Test Apparatus

Get Best Price

5 Light Color Assessment Cabinet Standard Light Booth for Color Matching Inspection

Get Best Price

Video

High Sensitivity Industrial Food Metal Detector Conveyor System for Foreign Object Detection

Get Best Price

8618938165008

sales11@yuyangtest.com

86-769-26622869

Contact Now

Product Description

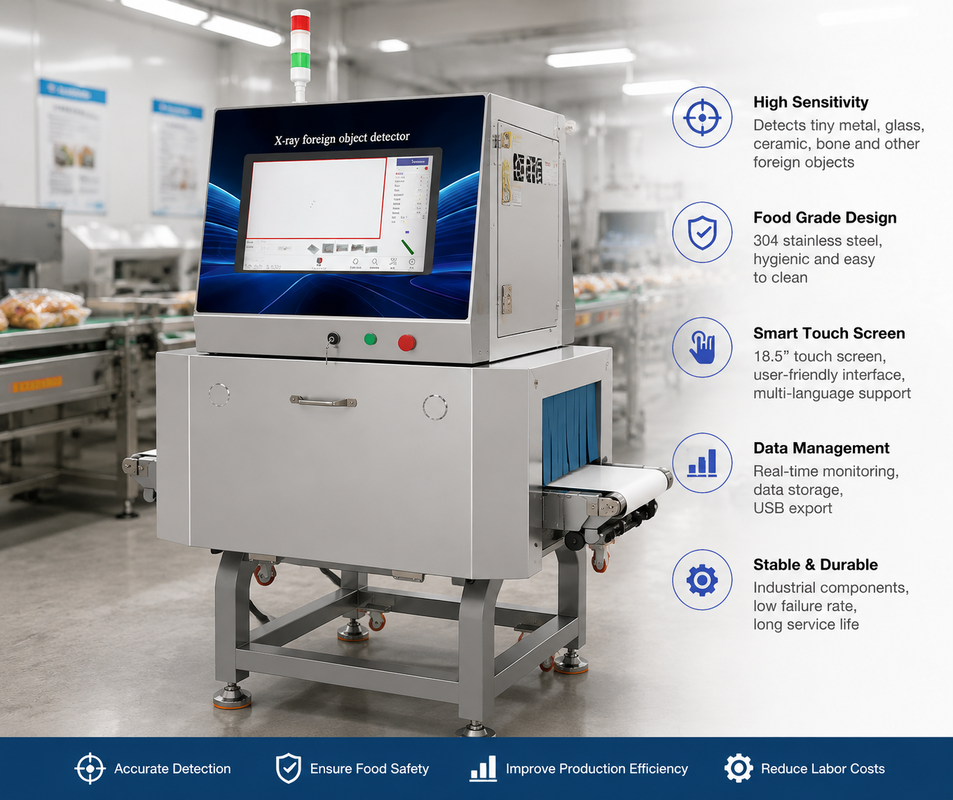

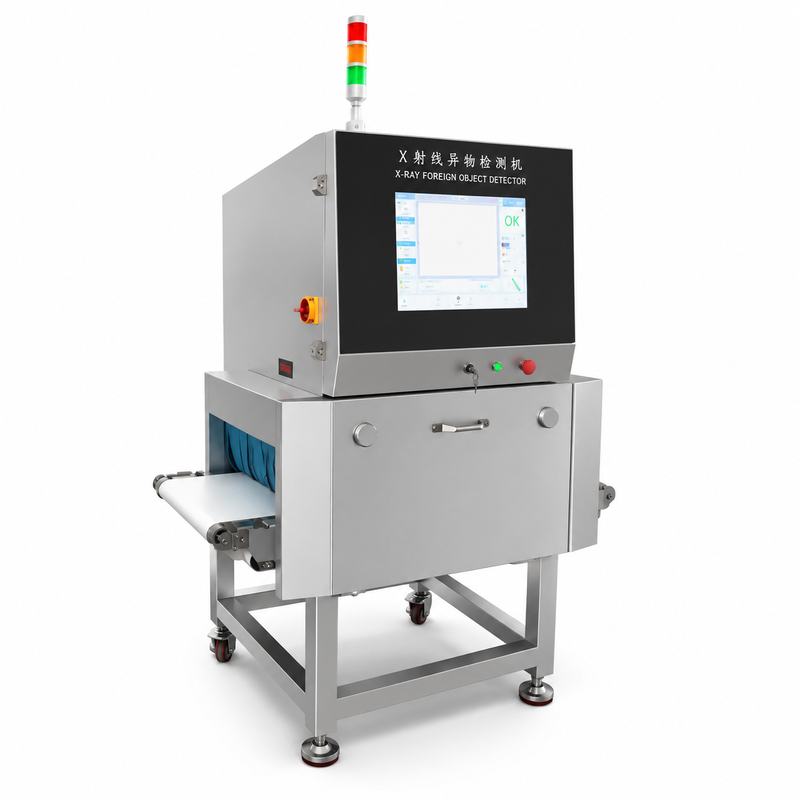

Food X-Ray Foreign Object Detector Machine

Automatic Inspection System for Metal, Glass, Stone Contamination Detection

Product Overview

The X-Ray Foreign Object Detector is specially designed for food processing industries to automatically detect and remove foreign contaminants in products. Using advanced X-ray imaging technology and intelligent image processing algorithms, the equipment can identify metallic and non-metallic foreign objects such as stainless steel, iron, glass, stones, bones, hard plastic and rubber, ensuring food safety and improving product quality.

Technical Specifications

Material:

Stainless steel

Machine Length:

1600mm

Model Number:

YY056

Speed of Belt:

25M/min (Fixed speed)

Speed of Transmission:

18-40 meter/minute

Type:

Laboratory equipment

Dimension:

72*53*56cm

Test Accuracy:

±2%

Working Speed:

0-18 rotate/min adjustable

Pressure Source:

Air pressure more than Min.5kg/cm²

Customized Support:

OEM, ODM, OBM

Detection Capabilities

The all-digital metal detector features transmission-type design as a new-generation microcomputer-based intelligent metal inspection unit. Boasting high sensitivity and reliable operation, it overcomes the technical limitation common to most conventional devices that deliver strong responses merely to magnetic materials. It performs outstandingly in suppressing false signals triggered by moist and frozen goods.

Detected Height (mm)	80	100	150	200	250	300	350
Belt Width (mm)	250	250	400	400	400	400	400
Fe Sensitivity (mm)	0.8	1.0	1.2	1.5	2.0	2.5	3.0
SUS Sensitivity (mm)	1.0	2.0	2.5	2.5	3.0	3.5	4.0
N-Fe Sensitivity (mm)	1.0	1.5	2.0	2.0	2.5	3.0	3.5

Applications

Primarily used for: sauces, sausages, dumplings, ham, soup, sugar products, pickled foods, salted foods, fast food and other non-food industries. Features high detection sensitivity, anti-interference ability and waterproof standard for hard-working conditions. Detects mixed or lost needles, wires, or lead, copper, aluminium, tin, stainless steel and other kinds of metal in food, raw materials or products.

Key Features

Double circuit electromagnetic wave detection, new analog and digital circuit combination for improved sensitivity and reliability
Touch screen input with large scale integrated circuit for enhanced detection intelligence
User-friendly interface design with multi-language operation and clear human-machine interface
Dynamic zero point voltage tracking with automatic learning detection function
Wide adjustable range of sensitivity with reverse detection function
Sound, light and alarm activation when metal is detected with option to stop machine or reject products

Additional Parameters

Belt Length:

1500mm

Speed Adjustment:

5-40 M/min (available upon request)

Load Capacity:

20KG

Count:

100

Warning Method:

Sound and light alarm with belt control options

Reject System:

Automatic rejection while belt continues operation

Application:

Non-package, plastic package, paper bag or box (non-metallic) products

Work Environment:

Temperature -10℃-40℃, relative humidity 30-90%
