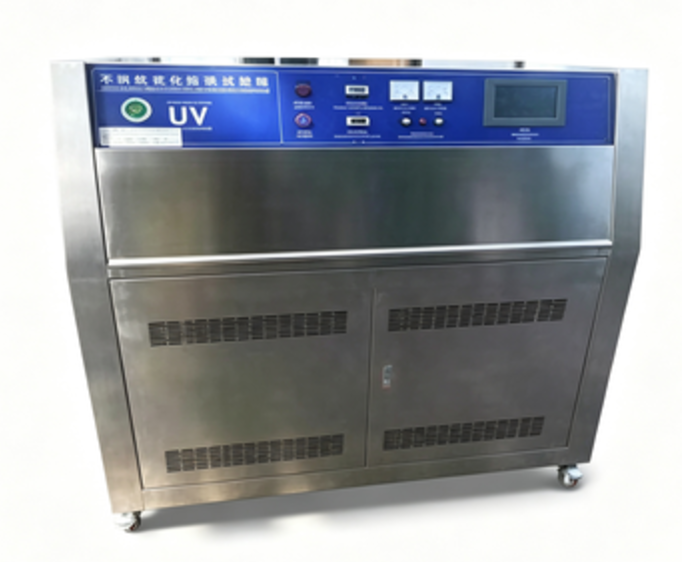

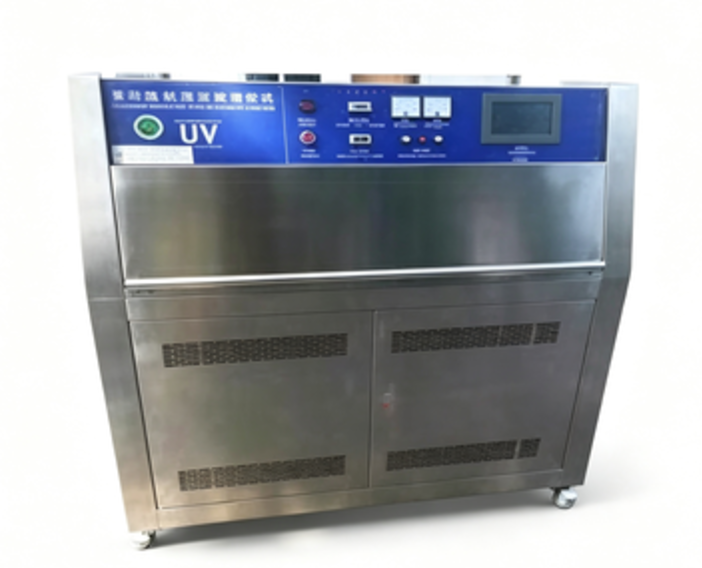

304 Stainless Steel Environmental Test Chamber for Xenon Weathering Aging with 500~1100w/m2 Radiation and ±0.3°C Controller Accuracy

UV accelerated weathering test chamber simulates damaging effects of long-term outdoor exposure of materials and coatings by exposing test samples to varying conditions of the most aggressive components of weathering - ultraviolet radiation, humidity and heat. A UV weathering test chamber uses fluorescent lamps to provide a radiation spectrum centered in the ultraviolet wavelengths. Moisture is provided by forced condensation, and temperature is controlled by heaters.

• Manufactured using CNC equipment with advanced technology and attractive appearance
• Constructed from 1.2mm thick stainless steel
• Single cycle air path system with axial fan for improved air flow, light, heat capacity, and temperature uniformity
• Special UV ultraviolet lamps: two rows of eight, 40W per support
• Lamp life: above 1600 hours
• Water consumption: approximately 8 liters per day (tap or distilled water)
• 8 UVA lamps installed on both sides
• Interior heating tank for fast warming and uniform temperature distribution
• Two-way clamshell lid for easy closing
• Automatic water tank level control to prevent heating pipe damage from air burning
• Sample holder made of stainless steel or aluminum alloy
• High-quality PU fixed wheels at unit base
• U-shaped plot sinks drainage system
• Test sample surface parallel to UV light plane
• Internal automatic sprinkler system with adjustable water pressure

• Ground protection
• Power overload short-circuit breaker
• Control circuit overload and short-circuit fuse
• Water protection
• Over-temperature protection

• U-shaped titanium alloy high-speed electric heating pipes
• Independent temperature control and lighting systems
• Microcomputer temperature control algorithms for high precision and efficient power output
• Anti-over-temperature heating system features
