Name: YYP-003 Single Column Tensile Test Machine with 50~500mm/min Speed, ±0.5% Accuracy, and AC Motor for Package Testing
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYP-003
Price: 1299 USD
Availability: InStock

Home > Products > Package Testing Equipment >

YYP-003 Single Column Tensile Test Machine with 50~500mm/min Speed, ±0.5% Accuracy, and AC Motor for Package Testing

50~500mm/min Tensile Test Machine

±0.5% Accuracy Testing Instrument

AC Motor Package Testing Equipment

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYP-003

Request A Quote

Product Details

Model:

YY003-1

Range Of Speed:

50~500mm/min

Motor:

AC Motor

Resolution:

1/150,000

Capacity Choice:

1,2,5,10,20,50,100,200,500kg Optional

Whole Stroke:

850mm (contain Grips, Can Customize)

Accuracy:

±0.5%

Force Relative Error:

±0.5%

Displacement Relative Error:

±0.5%

Test Speed Relative Error:

±0.5%

Effective Testing Space 1:

120mmMAX

Accessories:

Computer, Printer, System Operation Manua

Optional Accessories S:

Stretcher, Air Clamp

Highlight:

50~500mm/min Tensile Test Machine

±0.5% Accuracy Testing Instrument

AC Motor Package Testing Equipment

Payment & Shipping Terms

Minimum Order Quantity

Price

1299

Packaging Details

Standard Wooden Case

Delivery Time

10 days

Payment Terms

L/C,D/A,D/P,T/T

Supply Ability

15 sets per month

Stainless Steel High Accuracy Environmental Chamber for Lab Testing Programmable Constant Temperature

Get Best Price

Tunnel Type Food Metal Detector Machine for Snack, Meat, Seafood Metal Foreign Object Detection

Get Best Price

Digital Vacuum Leak Testing Machine, Package Seal Strength & Leakage Test Equipment

Get Best Price

High Precision Constant Temperature And Humidity Test Chamber, Laboratory Temperature Humidity Testing Equipment

Get Best Price

8613825729462

sales03@yuyangtest.com

86-769-26622869

Contact Now

Product Description

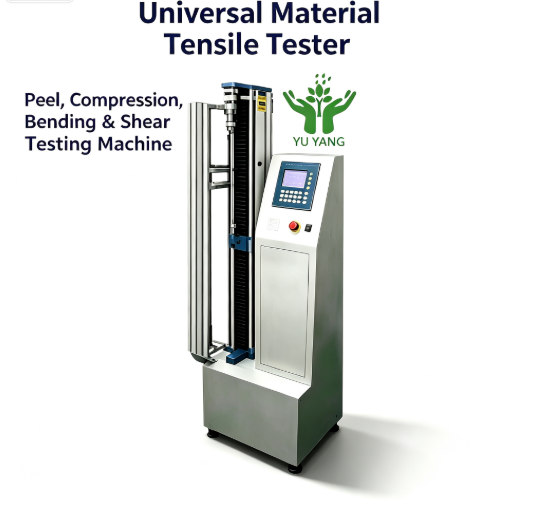

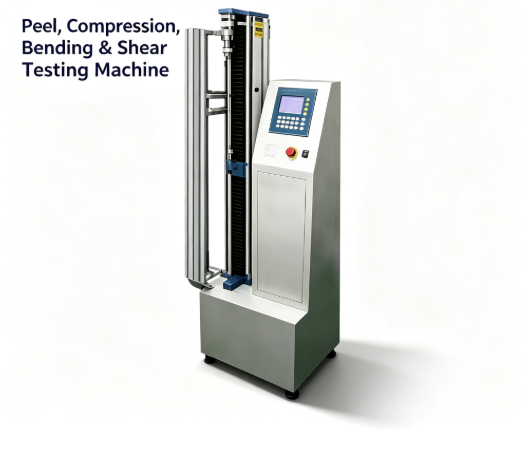

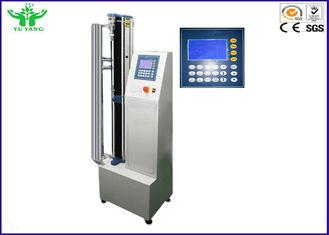

YYP-003 Single Column Tensile Test Machine, Loop Tack Fatigue Cycling Testing Instrument

Product Overview

This equipment is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling testing on various materials including metals, tape, composites, alloys, rigid plastics, films, elastomers, textiles, paper, board and finished products.

Key Characteristics

Computer-controlled system with specialized testing software for comprehensive parameter control, data collection, analysis, and result display
Stable performance with high accuracy and powerful, user-friendly software functionality
Utilizes USA high-precision load cell for superior measurement accuracy

Software Features

Windows-based platform with intuitive dialog forms for easy parameter setting
Single-screen operation eliminates the need for screen switching
Multi-language support: Simplified Chinese, Traditional Chinese, and English
Flexible test sheet mode configuration
Real-time test data display on screen
Multiple curve data comparison through translation or contrast methods
Multiple measurement units with metric and British system switching
Automatic calibration function
User-defined test method capability
Test data arithmetic analysis functionality
Automatic magnification for optimal graph sizing

Design Standards

ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, ASTM D638, ISO527
