Slope Impact Test Machine with 100~600kg Custom Load for ISTA 3E 3J 6 Compliance and Remote Control Operation

100~600kg Custom Load Slope Impact Test Machine

ISTA 3E 3J 6 Compliance Inclined Impact Tester

Remote Control Operation Package Impact Tester

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYP-004

Request A Quote

Slope Impact Test Machine with 100~600kg Custom Load for ISTA 3E 3J 6 Compliance and Remote Control Operation

Product Details

Model:

YY003

Load Capacity:

100kg-600kg (can Be Customized)

Impact Surface Dimension 1:

1600*2200mm,2100*2400mm (can Be Customized)

Maximum Slide Length (mm)::

1600 (can Be Designed Accord To Customer's Requirement)

Impact Velocity Range (m/s)::

1.305~2.608,1.305~2.334

Pulley Platform Dimension (mm):

1000×1000 Mm (can Be Customized)

Control System:

Micro-processor Single Chip

Plane Inclined To The Vertical Angle:

0°, 15°(can Be Customized)

Impact Surface Material:

Rubber Wood With Two-rail Steel Track

Working Condition:

Temperature 0~40°, Humidity ≤80% (no Condensation)

Record::

Can Custom Made By The Requirement Standard.

Safety Features:

E-Stop

Highlight:

100~600kg Custom Load Slope Impact Test Machine

ISTA 3E 3J 6 Compliance Inclined Impact Tester

Remote Control Operation Package Impact Tester

Payment & Shipping Terms

Minimum Order Quantity

Price

1699

Packaging Details

Standard Wooden Case

Delivery Time

10 days

Supply Ability

15 sets per month

PLC Control Hot Tack Tester with Double Heating Sealing Jaws and 7 Inch TFT Touch Screen for Heat Seal Strength Test

Get Best Price

Vertical Vibration Shaker 0~100Kg Transport Simulation Tester with Programmable Function

Get Best Price

Vertical Vibration Test Machine 0~100Kg 1~400Hz Transportation Simulation Vibration Shaker

Get Best Price

Vertical Vibration Test Machine with 0-100kg Load and 1~400Hz Sine Wave for Package Transportation Simulation

Get Best Price

8613825729462

sales03@yuyangtest.com

86-769-26622869

Contact Now

Product Description

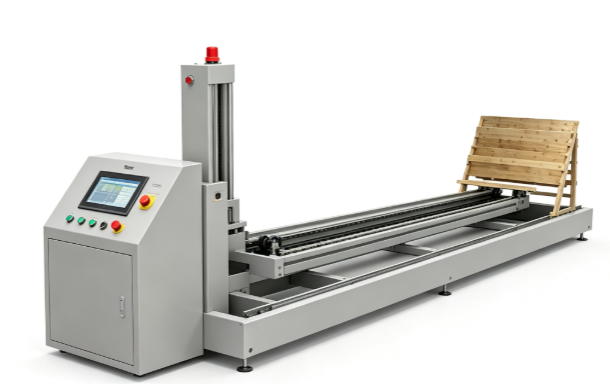

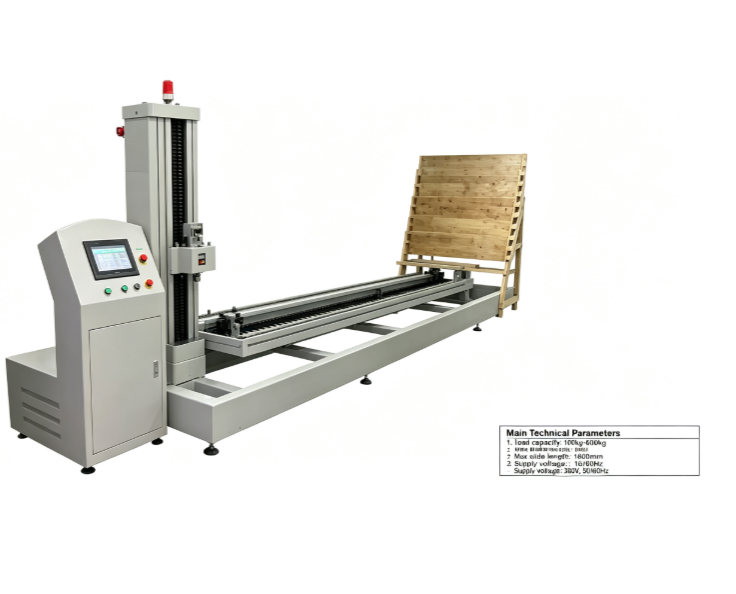

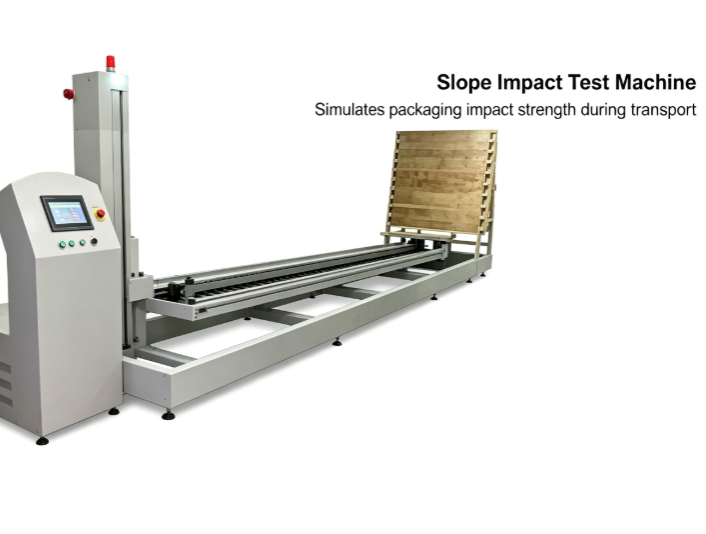

Slope Impact Test Machine for Package ISTA 3E 3J 6 Inclined Impact Tester 100~600kg Custom Load

Product Overview

The Slope Impact Test Machine simulates the impact strength of packaging in real transportation circumstances. This equipment is applicable for testing piled-up goods, electromechanical slide scenarios, engine loading conditions, and product transportation environments.

Applications

This product serves as a testing machine for scientific research institutions, colleges, packaging technique test centers, packaging material manufacturers, and foreign trade or transport departments.

Features & Functions

Flexible location motor-driven pulley for easy installation and speed adjustment
Low slope height for convenient specimen fixing with strong impact resistance board ensuring structural fastness
Adjustable pulley to horizontal position for customer specimen fixing with flexible cylinder-driven angular adjustment
Remote control operation for complete test staff safety
Simple installation requiring only ground fixing without complicated operations

Design Standards

Test Standards: ISTA 3E, 3J & ISTA 6 (inclined impact test)
