Home > Products > Package Testing Equipment >
Remote Control Slope Impact Tester with Customizable Load Capacity for ISTA 3E, 3J & 6 Compliance Packaging Testing

Remote Control Slope Impact Tester with Customizable Load Capacity for ISTA 3E, 3J & 6 Compliance Packaging Testing

Remote Control Slope Impact Tester

Customizable Load Capacity Inclined Impact Tester

ISTA Compliance Packaging Impact Tester

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYP-004

Contact Us
Request A Quote
Remote Control Slope Impact Tester with Customizable Load Capacity for ISTA 3E, 3J & 6 Compliance Packaging Testing Remote Control Slope Impact Tester with Customizable Load Capacity for ISTA 3E, 3J & 6 Compliance Packaging Testing Remote Control Slope Impact Tester with Customizable Load Capacity for ISTA 3E, 3J & 6 Compliance Packaging Testing
Product Details
Model:
YY004
Load Capacity:
100kg-600kg (can Be Customized)
Impact Surface Dimension:
1600*2200mm,2100*2400mm (can Be Customized)
Maximum Slide Length (mm)::
1600 (can Be Designed Accord To Customer's Requirement)
Impact Velocity Range (m/s)::
1.305~2.608,1.305~2.334
Impact Velocity Error::
≤±5%
Pulley Platform Dimension (mm)::
1000×1000 Mm (can Be Customized)
1000×1000 Mm (can Be Customized):
Micro-processor Single Chip
Plane Inclined To The Vertical Angle:
0°, 15°(can Be Customized)
Impact Surface Material:
Rubber Wood With Two-rail Steel Track
Highlight:

Remote Control Slope Impact Tester

,

Customizable Load Capacity Inclined Impact Tester

,

ISTA Compliance Packaging Impact Tester

Payment & Shipping Terms
Minimum Order Quantity
1
Price
1699
Packaging Details
Standard Wooden Case
Delivery Time
10 days
Supply Ability
15 sets per month
RELATED PRODUCTS
Good price PLC Control Hot Tack Tester with Double Heating Sealing Jaws and 7 Inch TFT Touch Screen for Heat Seal Strength Test online

PLC Control Hot Tack Tester with Double Heating Sealing Jaws and 7 Inch TFT Touch Screen for Heat Seal Strength Test

Get Best Price
Good price Vertical Vibration Shaker 0~100Kg Transport Simulation Tester with Programmable Function online

Vertical Vibration Shaker 0~100Kg Transport Simulation Tester with Programmable Function

Get Best Price
Good price Vertical Vibration Test Machine 0~100Kg 1~400Hz Transportation Simulation Vibration Shaker online

Vertical Vibration Test Machine 0~100Kg 1~400Hz Transportation Simulation Vibration Shaker

Get Best Price
Good price Vertical Vibration Test Machine with 0-100kg Load and 1~400Hz Sine Wave for Package Transportation Simulation online

Vertical Vibration Test Machine with 0-100kg Load and 1~400Hz Sine Wave for Package Transportation Simulation

Get Best Price
Contact Us
8613825729462
sales03@yuyangtest.com
86-769-26622869
Contact Now
Product Description
Remote Control Slope Impact Tester for Packaging Transport Impact Strength Test With Safety Protection

The Remote Control Slope Impact Tester simulates the impact strength of packaging during real-world transport conditions. This equipment is designed for testing goods during piling, electromechanical sliding, engine loading, and product transportation scenarios.

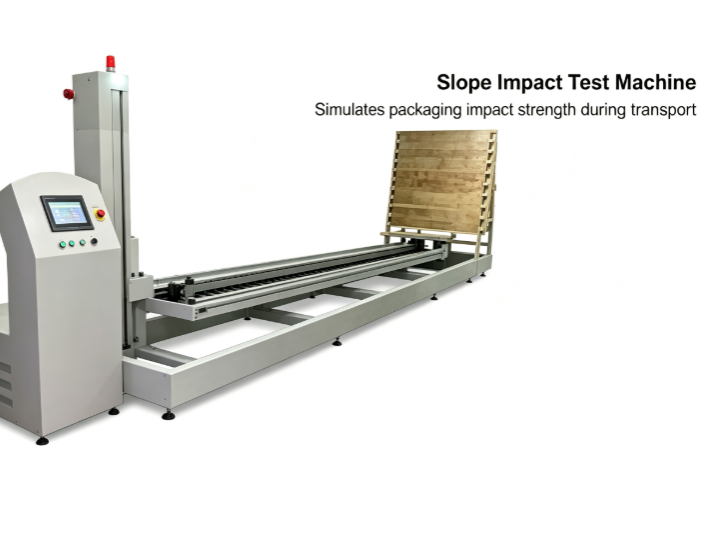

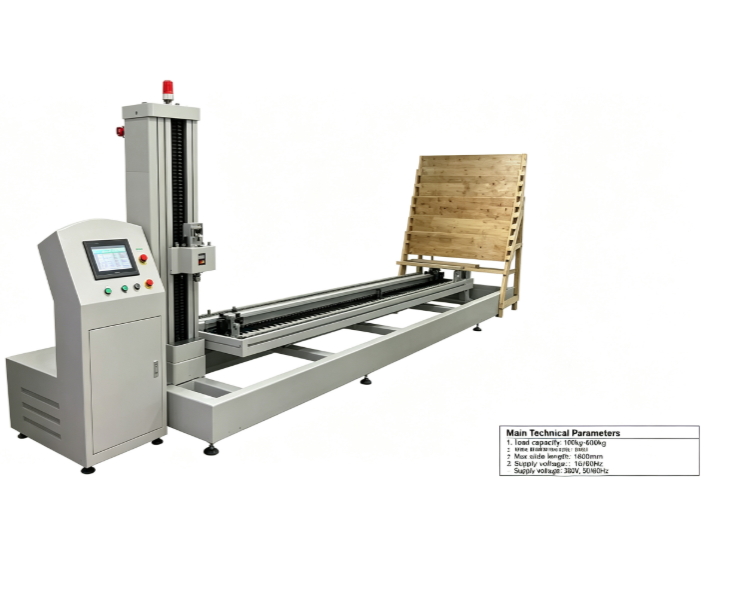

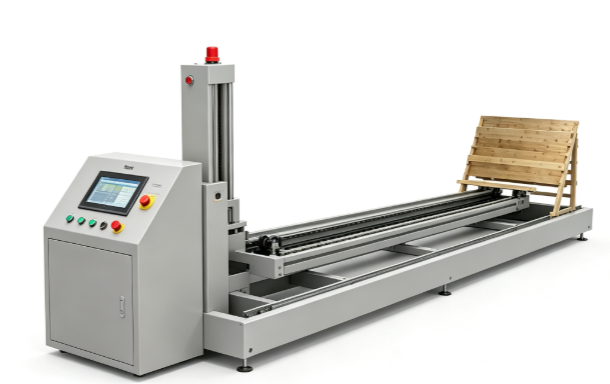

Remote Control Slope Impact Tester front view Remote Control Slope Impact Tester side view
Key Features and Functions
  • Flexible motor-driven pulley positioning for easy installation and speed adjustment
  • Low slope height design for convenient specimen fixation with strong impact resistance board ensuring structural durability
  • Adjustable pulley system that can be set to horizontal position for specimen mounting, with cylinder-driven angular adjustment for flexible operation
  • Remote control operation capability to ensure complete safety for testing personnel
  • Simple installation requiring only ground fixation without complex setup procedures
Applications

This testing equipment is suitable for scientific research institutions, universities, packaging technique test centers, packaging material manufacturers, and foreign trade or transport departments.

Design Standards

Test Standards: ISTA 3E, 3J & ISTA 6 (inclined impact test)

Tags：

compression test equipment

packaging testing instruments

vibration testing equipment
