Home > Products > Package Testing Equipment >
Remote Control Slope Impact Tester with Customizable Load Capacity and ISTA Compliance for Packaging Transport Impact Strength Test

Remote Control Slope Impact Tester with Customizable Load Capacity and ISTA Compliance for Packaging Transport Impact Strength Test

Remote Control Slope Impact Tester

Customizable Load Capacity Inclined Impact Tester

ISTA Compliance Packaging Impact Tester

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYP-004

Contact Us
Request A Quote
Remote Control Slope Impact Tester with Customizable Load Capacity and ISTA Compliance for Packaging Transport Impact Strength Test Remote Control Slope Impact Tester with Customizable Load Capacity and ISTA Compliance for Packaging Transport Impact Strength Test Remote Control Slope Impact Tester with Customizable Load Capacity and ISTA Compliance for Packaging Transport Impact Strength Test
Product Details
Model:
YY004
Load Capacity:
100kg-600kg (can Be Customized)
Impact Surface Dimension:
1600*2200mm,2100*2400mm (can Be Customized)
Maximum Slide Length (mm)::
1600 (can Be Designed Accord To Customer's Requirement)
Impact Velocity Range (m/s)::
1.305~2.608,1.305~2.334
Impact Velocity Error::
≤±5%
Pulley Platform Dimension (mm):
1000×1000 Mm (can Be Customized)
Control System:
Micro-processor Single Chip
Plane Inclined To The Vertical Angle:
0°, 15°(can Be Customized)
Highlight:

Remote Control Slope Impact Tester

,

Customizable Load Capacity Inclined Impact Tester

,

ISTA Compliance Packaging Impact Tester

Payment & Shipping Terms
Minimum Order Quantity
1
Price
1699
Packaging Details
Standard Wooden Case
Delivery Time
10 days
Supply Ability
15 sets per month
RELATED PRODUCTS
Good price PLC Control Hot Tack Tester with Double Heating Sealing Jaws and 7 Inch TFT Touch Screen for Heat Seal Strength Test online

PLC Control Hot Tack Tester with Double Heating Sealing Jaws and 7 Inch TFT Touch Screen for Heat Seal Strength Test

Get Best Price
Good price Vertical Vibration Shaker 0~100Kg Transport Simulation Tester with Programmable Function online

Vertical Vibration Shaker 0~100Kg Transport Simulation Tester with Programmable Function

Get Best Price
Good price Vertical Vibration Test Machine 0~100Kg 1~400Hz Transportation Simulation Vibration Shaker online

Vertical Vibration Test Machine 0~100Kg 1~400Hz Transportation Simulation Vibration Shaker

Get Best Price
Good price Vertical Vibration Test Machine with 0-100kg Load and 1~400Hz Sine Wave for Package Transportation Simulation online

Vertical Vibration Test Machine with 0-100kg Load and 1~400Hz Sine Wave for Package Transportation Simulation

Get Best Price
Contact Us
8613825729462
sales03@yuyangtest.com
86-769-26622869
Contact Now
Product Description
Remote Control Slope Impact Tester for Packaging Transport Impact Strength Test With Safety Protection
The Remote Control Slope Impact Tester simulates real-world transport conditions to evaluate the impact strength of packaging materials and products during shipping and handling.

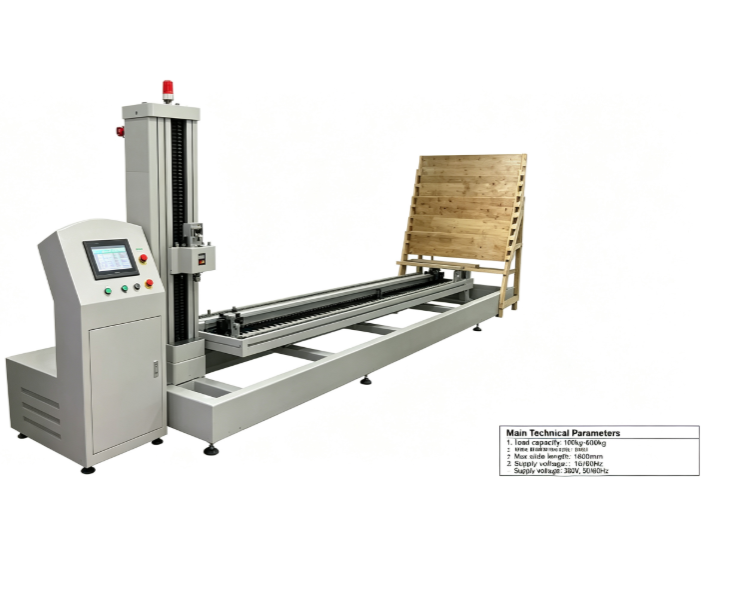

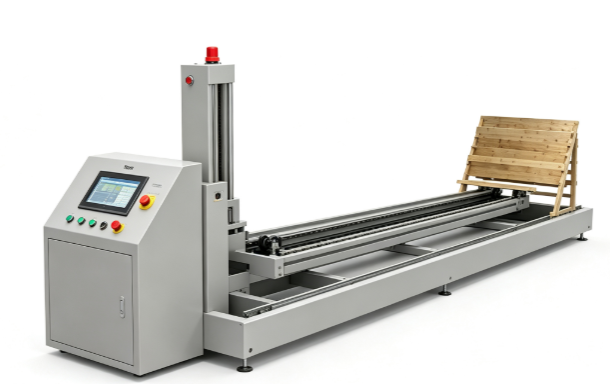

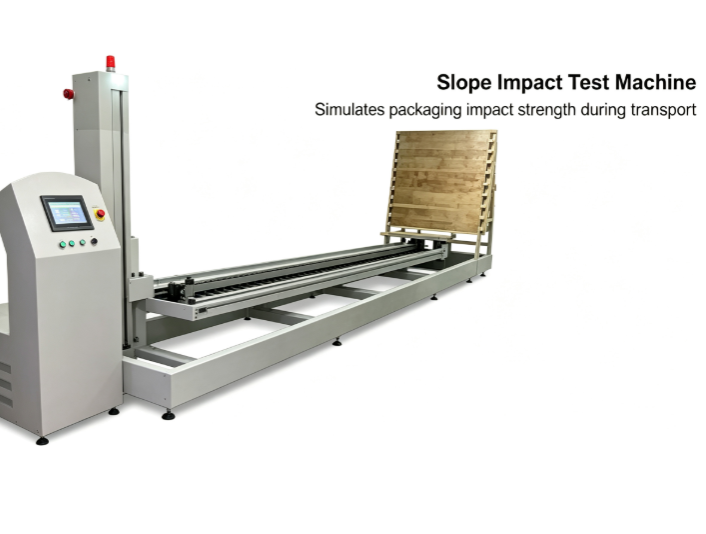

Remote Control Slope Impact Tester front view showing control panel and testing mechanism Remote Control Slope Impact Tester side view displaying slope mechanism and safety features
Applications
This slope impact test machine is designed for evaluating packaging performance in various scenarios including goods piling, electromechanical sliding, engine loading, and product transportation. It serves scientific research institutions, colleges, packaging technique test centers, packaging material manufacturers, and foreign trade or transport departments.
Features & Benefits
  • Flexible motor-driven pulley system for easy installation and speed adjustment
  • Low slope height design for convenient specimen placement with strong impact resistance
  • Adjustable pulley system with cylinder-driven angular adjustment for flexible positioning
  • Remote control operation for complete operator safety during testing
  • Simple installation requiring only ground fixation without complex setup procedures
Design Standards
Test Standard: ISTA 3E, 3J & ISTA 6 (inclined impact test)
