Name: PLC Control Hot Tack Tester with Double Heating Sealing Jaws and 7 Inch TFT Touch Screen for Heat Seal Strength Test
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYP-007
Price: 2699 USD
Availability: InStock

Home > Products > Package Testing Equipment >

PLC Control Hot Tack Tester with Double Heating Sealing Jaws and 7 Inch TFT Touch Screen for Heat Seal Strength Test

PLC Control Hot Tack Tester

Double Heating Sealing Jaws Heat Seal Strength Tester

7 Inch TFT Touch Screen Flexible Packaging Testing Machine

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYP-007

Request A Quote

PLC Control Hot Tack Tester with Double Heating Sealing Jaws and 7 Inch TFT Touch Screen for Heat Seal Strength Test

Product Details

Model:

YY007

Sealing Temperature:

Ambient~250℃

Temp Accuracy:

±0.2℃

Heat Seal Dwell Time:

0.1~9999s

Hot Tack Dwell Time:

0.1~9999s

Sealing Pressure:

0.15MPa~0.7MPa

Sealing Jaws:

50mmx10mm Teflon Coated

Sealing Jaws Heating:

Double Heating

Load Cell:

200N(Optional:30N50N100N500N)

Accuracy:

0.5 F.S.

Resolution:

0.01N

Stroke:

500mm

Highlight:

PLC Control Hot Tack Tester

Double Heating Sealing Jaws Heat Seal Strength Tester

7 Inch TFT Touch Screen Flexible Packaging Testing Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

2699

Packaging Details

Standard Wooden Case

Delivery Time

10 days

Supply Ability

15 sets per month

PLC Control Hot Tack Tester with Double Heating Sealing Jaws and 7 Inch TFT Touch Screen for Heat Seal Strength Test

Get Best Price

Vertical Vibration Shaker 0~100Kg Transport Simulation Tester with Programmable Function

Get Best Price

Vertical Vibration Test Machine 0~100Kg 1~400Hz Transportation Simulation Vibration Shaker

Get Best Price

Vertical Vibration Test Machine with 0-100kg Load and 1~400Hz Sine Wave for Package Transportation Simulation

Get Best Price

8613825729462

sales03@yuyangtest.com

86-769-26622869

Contact Now

Product Description

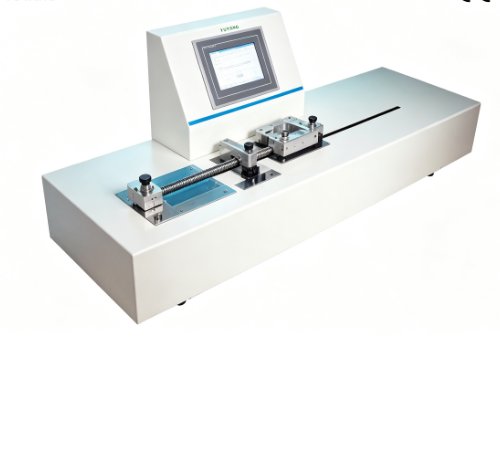

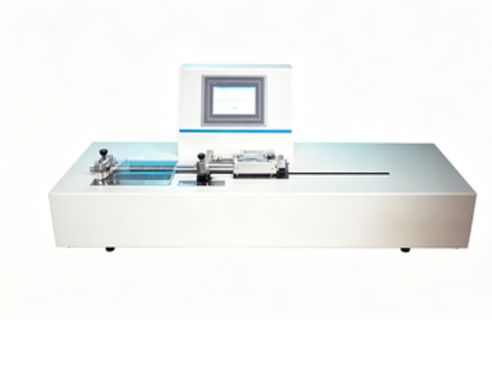

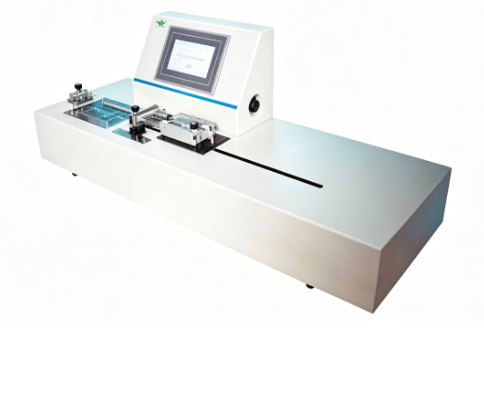

YYP-007 PLC Control Hot Tack Tester

This flexible packaging hot tack testing machine measures the strength of heat seals formed between thermoplastic surfaces immediately after the seal has been made and before it cools to room temperature. The hot tack tester is especially important for vertical form-fill-seal packaging applications.

Key Features

Hot tack, heat seal, peeling and tensile test items integrated in one instrument
Sealing jaws controlled by P.I.D. temperature with fast heating and stable temperature maintenance
7-inch TFT touch screen for easy operation
PLC control system
Aluminum encapsulated sealing jaws for uniform heating
Multi-group parameter saving capability
Adjustable testing speeds
Auto zeroing, overload and over travel protection
Manual and foot switch starting test with anti-scald design
RS 232 port and professional software included

Compliance Standards

ASTM F1921, ASTM F2029, QB/T2358, YBB 00122003
