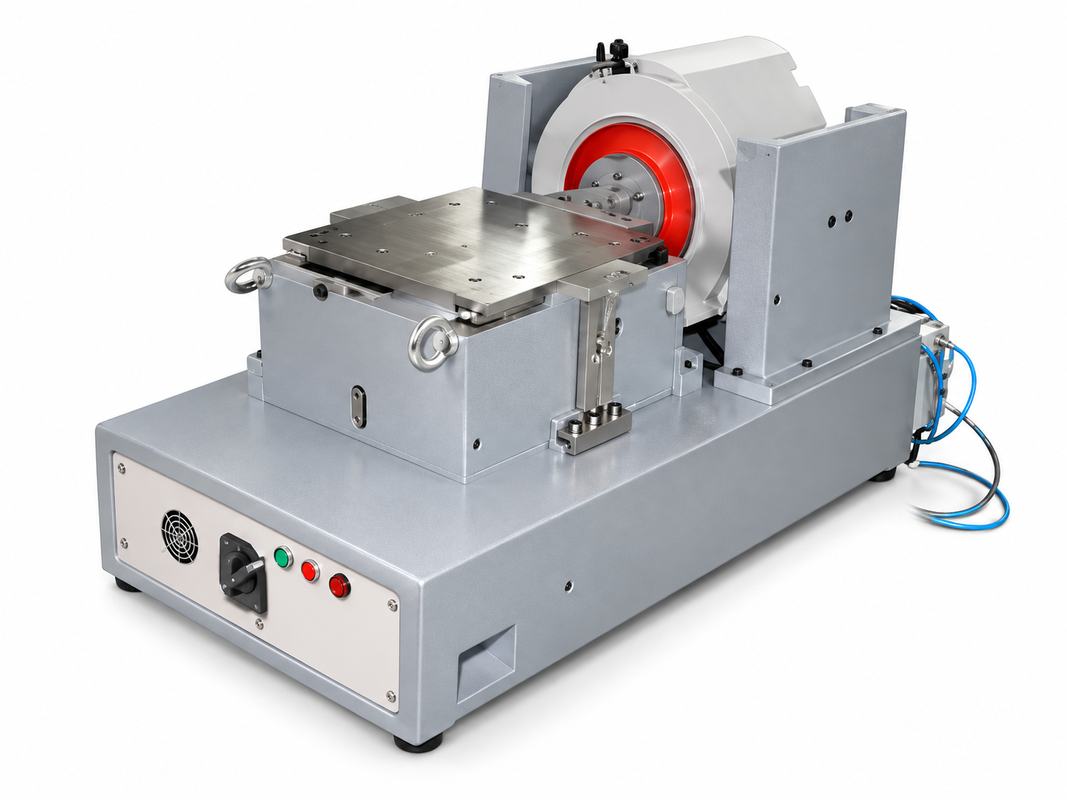

Name: Heavy Load Vertical & Horizontal Vibration Test Machine with Max. Displacement 25mm for Carton Packaging Transport Testing
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYP-010
Price: 689 USD
Availability: InStock

Home > Products > Package Testing Equipment >

Heavy Load Vertical & Horizontal Vibration Test Machine with Max. Displacement 25mm for Carton Packaging Transport Testing

Heavy Load Vibration Test Machine

Vertical & Horizontal Vibration Shaker

Max. Displacement 25mm Package Vibration Tester

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYP-010

Request A Quote

Heavy Load Vertical & Horizontal Vibration Test Machine with Max. Displacement 25mm for Carton Packaging Transport Testing

Product Details

Model:

YY010

Vibration Generator:

VG300/25

Frequency(H Z):

2-4000

Max Exiting Force(kg.f):

300

Max. Displacemen T (mmp-p):

Max. Velocity(cm/s:

200

Payload(kg):

110

Armature Mass(kg):

Armature Diameter(m M:

φ150

Cooling Method:

Forced Air Cooling

Vibration Generator Weight(kg):

460

Vibration Generator Dimension L*W*H(MM):

750*560*67 0

Power Amplifier A:

Amp3k

Power Amplifier Weight(kg):

250

Power Amplifier Dimension L*W*H(MM):

800*550*12 50

Utility Requirement S:

3-phase AC380V ±10% 50Hz

Aggregate Capacity(KW:

Highlight:

Heavy Load Vibration Test Machine

Vertical & Horizontal Vibration Shaker

Max. Displacement 25mm Package Vibration Tester

Payment & Shipping Terms

Minimum Order Quantity

Price

689

Packaging Details

Standard Wooden Case

Delivery Time

10 days

Payment Terms

L/C,D/A,T/T,D/P

Supply Ability

15 sets per month

Micro-Computer Controlled Friction Package Testing Equipment with Double Heating Sealing Jaws Compliant with ASTM D1894 Standard

Get Best Price

8613825729462

sales03@yuyangtest.com

86-769-26622869

Contact Now

Product Description

Vertical & Horizontal Heavy Load Vibration Test Machine YYX-010

Package Vibration Shaker for Carton Packaging Transport Vibration Test

Applications: Automotive, electronics, aerospace, vessel, telecommunication, optoelectronics, instruments, etc.

Key Features

Strength of the suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability
Perfect performance on amplitude variation
High efficient on D Class power conversion, 3-Sigma peak current, providing optimization of power consumption and minimum harmonic distortion
Rapid self-test diagnostics and chain safeguard, high safety and reliability
Air gasbag isolation damping device allows vibration table operation without special foundation requirements
Perfect reappearance vibration waveform and reduction of vibration transmission
Different applications on vertical and horizontal tables
Simple operation for the controller

System Diagram

System Block Diagram

Technical Diagram
