Transportation Vibration Measuring Instruments , ISTA 1A Packaging Testing Equipment

Transportation Vibration Measuring Instruments , ISTA 1A Packaging Testing Equipment

  • Transportation Vibration Measuring Instruments , ISTA 1A Packaging Testing Equipment
  • Transportation Vibration Measuring Instruments , ISTA 1A Packaging Testing Equipment
  • Transportation Vibration Measuring Instruments , ISTA 1A Packaging Testing Equipment
  • Transportation Vibration Measuring Instruments , ISTA 1A Packaging Testing Equipment
Transportation Vibration Measuring Instruments , ISTA 1A Packaging Testing Equipment
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: GB/T4857.2;EN71, ANSI, UL,ISO2247, ASTM999, ISTA 1A
Model Number: YY1401
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Case
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Max. Test Load: 100 Kg Frequency Range: 60-300 Rpm
Amplitude Range: 25.4 Mm (1 Inch) Simulation Speed: 25~40 Km/h
Woke Table Size: 1000×1200 Mm Weight: 125 Kg
Name: Vibration Testing Equipment
High Light:

vibration testing equipment

,

compression test equipment

Simulation Transportation Vibration Package Testing Equipment ISTA 1A





Description:



Transport vibration test equipment is used to check all kinds of specific load products to bear actual road condition ability during auto transportation process, simulate the effect on products according to the actual working condition in the lab, basing on this, access or confirm the products package.





Features:



1. Precise design and manufacture, beautiful out appearance, serious silent working;

2. Outer use stainless steel plate bear table to make it use without rust for a long time;

3. The around plate and control cabinet are use cold-roll steel plate baking finish;

4. The pedestal of machine is use heave steel channel with damping device, low working noise;

5. The pedestal equip with fixed hole site, it can be positioned the machine by anchoring when at installation site;

6. Adjustable material fixed grip, can meet with difference sizes of products testing

7. Use special cam mechanism to imitate horse racing type vibration;

8. Synchronization noise belt transmission, low working noise;

9. The control cabinet and testing table are separated type





Application:



Transport vibration test equipment is used in toy, electronic, furniture, gift, ceramics, package and other products.





Standards:



The machine was designed according to GB/T4857.2;EN71, ANSI, UL,ISO2247, ASTM999, ISTA 1A standards of international transport.





Advantage:



(1) CE certifiate

(2) 15-30days fast delivery

(3) 12month warranty

(4) High precise instrument with imported brand parts

(5) Strong export standard plywood case





Specifications:



HH 1301 Simulation Transportation Vibration Package Testing Machine
Max. Test Load 100 Kg
Frequency Range 60-300 rpm
Amplitude Range 25.4 mm (1 inch)
Vibration Mode Roundtrip
Simulation Speed 25~40 km/h
Woke Table Size 1000×1200 mm
Outside Dimension (L×W×H) 1255×1070×660 mm
Power Capacity 1 HP
Weight 125 Kg
Environmental Conditions Temperature: 5~40°c; Related Humidity: <85%
Speed Mode DC converter or AC Frequency Control
Power 220V, 50 Hz

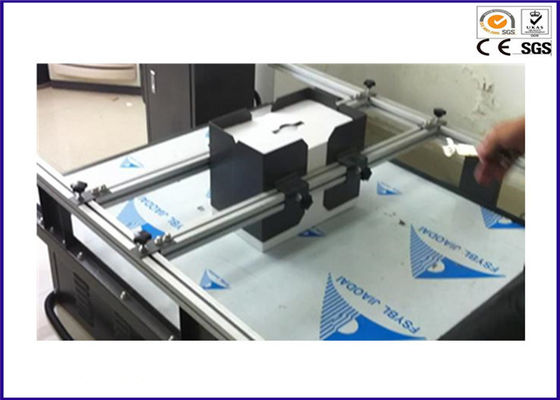

Transportation Vibration Measuring Instruments , ISTA 1A Packaging Testing Equipment 0



Transportation Vibration Measuring Instruments , ISTA 1A Packaging Testing Equipment 1
