Building Materials Flammability Testing Equipment Single Source 10kpa-50kpa

Building Materials Flammability Testing Equipment Single Source 10kpa-50kpa

  • Building Materials Flammability Testing Equipment Single Source 10kpa-50kpa
  • Building Materials Flammability Testing Equipment Single Source 10kpa-50kpa
  • Building Materials Flammability Testing Equipment Single Source 10kpa-50kpa
  • Building Materials Flammability Testing Equipment Single Source 10kpa-50kpa
Building Materials Flammability Testing Equipment Single Source 10kpa-50kpa
Product Details:
Place of Origin: China
Brand Name: YUYANG
Model Number: YYF051
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $1800
Packaging Details: Wooden Box
Delivery Time: 7-30 Days
Payment Terms: T/T
Contact Now
Detailed Product Description
Product Name: Single-Flame Source Building Material Ignitability Test Apparatus Gas Source: >95% Propane Gas
Gas Pressure: 10kpa~50kpa Timer Accuracy: ≤1s/h
Burner Angle: 45° Certification: GB / T8626-2007, EN ISO 11925-2:2010
High Light:

Single Source Flammability Testing Equipment

,

10kpa Flammability Testing Equipment

,

50kpa building materials test

Building Materials Flammability Tester Single-Flame Source Test Apparatus Ignitability Tester

Description:

Ignitability test, also called single-flame source test .Test apparatus corresponds to standard EN ISO 11925-2. Test results of the building structure can be classified according to standard 13501-1.
The dimensions of the test specimens shall be (250 ) mm long by (90 ) mm wide.
45°-tilted burner is advanced horizontally until the flame (length 20 mm) reaches the pre-set contact point with the test
specimen. Tests may need to be conducted to either surface exposure or edge exposure, or both. The flame application time is 15 or 30 seconds as required by sponsor.
During the test following is recorded: whether ignition occurs; whether the flame tip reaches 150 mm above the flame application point, and the time at which this occurs; whether ignition of the filter paper occurs; observations of physical behavior of the test specimen.

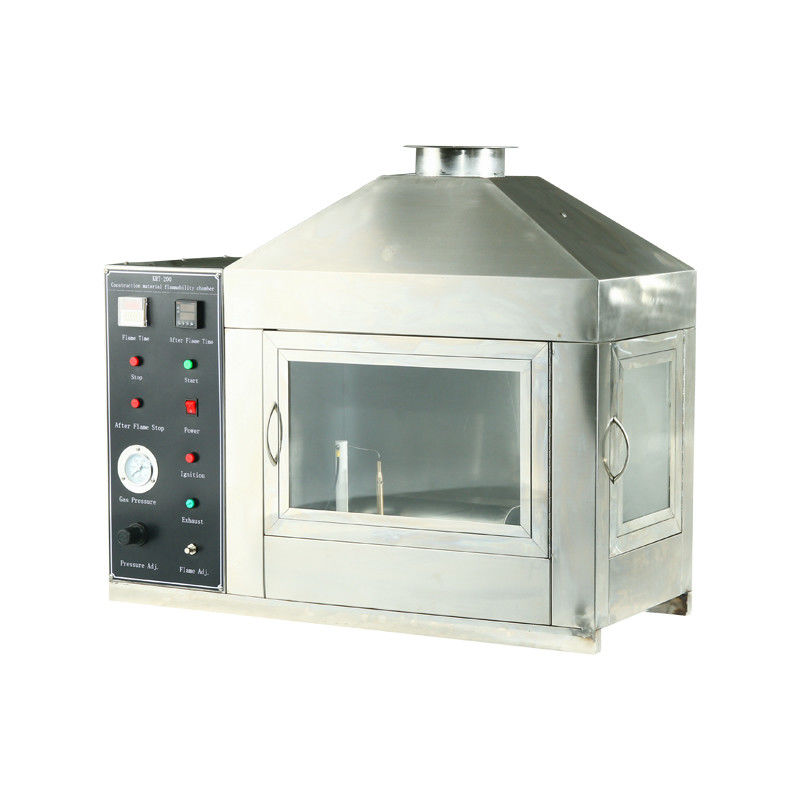

 Building Materials Flammability Testing Equipment Single Source 10kpa-50kpa 0

Standards:

GB / T8626-2007 Test Method of Flammability for Building Materials
EN ISO 11925-2:2002-Reaction to fire tests- Ignitability of building products subjected to direct impingement of flame-Part 2: Single-flame source test
DIN 4102

Specifications:

This apparatus made up of two parts: burning chamber and control device.
Power supply: AC220V±10%,50Hz;
Burner: diameter 0.17mm burner with regulator; four cent 4mm air suction inlet;
Gas source:>95% propane gas;(user should provide for themselves)
Gas pressure:10kpa~50kpa
Flue air velocity:0.7m/s only on condition of burner burning and draught hood open,
Time adjustment of continuous flame: 0 ~ 99minutes99seconds
Time adjustment of afterflame: 0 ~ 99minutes99seconds
Timer accuracy:≤1s/h
Anemometer accuracy:±0.1m/s.
Burner angle: 45°
Material: stainless steel
Observing window: two big viewing windows on the front and right side

Whole set: control device, burning chamber,burner,magnetic valve,flame lighter, signal control line and specimen holder.
Equipped with a digital anemometer/thermometer and a stopwatch for simple but accurate measurement of the flow, temperature and
time.
Flue air velocity:
0.7m/s
Gas pressure:
10kpa~50kpa
Timer accuracy:
≤1s/h
Anemometer accuracy:
±0.1m/s.
Burner angle:
45°
Power supply:
AC220V±10%,50Hz
