| Place of Origin: | DONGGUAN,China |
| Brand Name: | YUYANG |
| Certification: | ISO, CE |
| Model Number: | YY165 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 8500 USD negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 25 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 pcs per month |
| Product Name: | Thermal Conductivity Properties Test | Standard: | ASTM C518, ISO 8301, EN 12667 |
|---|---|---|---|
| Temperature Range: | Up To 95C | Cold Surface: | 10℃ ~ 50℃ |
| Sample Dimensions: | 100*100mm, Thickness 5mm~100mm | Application: | Flat Surface Material |
| External Dimension: | 1270*570*930 (cm) | Net Weight: | 110kg |
| High Light: | 100mm Thermal Conductivity Properties Test,Thermal Conductivity Properties Tester,EN 12667 Thermal Conductivity Test |
||

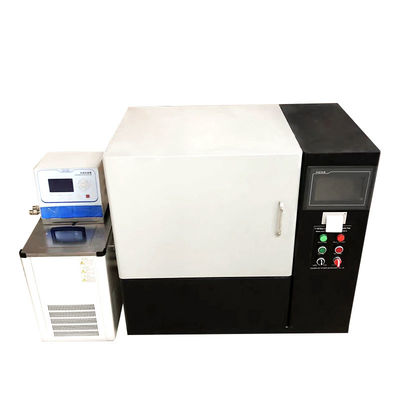

Steady-State Thermal Conductivity Properties Tester by Heat Flow Meter
Description:
It is mainly used to test the thermal conductivity of insulation materials, glass, fiber, foam and so on. Testing materials include fiber board, loosing filler glass fiber, rock wool, foam plastic (XPS/EPS/PUR, etc.), inter-layer composite plate, vacuum plate, rubber products, cement(concrete) products, powder materials, filler materials, gypsum board and so on. coefficient of thermal conductivity measurements conform to ASTM C 518, ISO8302, ISO 8301, JIS b 1412, DIN EN 12939, DIN EN 13163 with DIN EN 12667 and relevant international standards. It is in full compliance with the national thermal conductivity measurement standard with its stable and accurate temperature control technology, computer interface, software’s real-time monitoring and control, data processing and saving connecting. With these advantages, it is applied widely in materials properties detection organization, scientific research institution, quality detection department of factory, institutions of higher education teaching and research.
Features:
1. It has fuzzy guarded plate that is hot plate temperature tracking and precision control technology
2. Self-calibration function of the thermal conductivity and heating power
3. Compensation for test piece’s thickness and the average temperature
4. WINDOWS automatic thermal analysis measuring software system, data analysis and reporting output function.
