Place of Origin:
China
Brand Name:
YUYANG
Certification:
IEC60332—3—10: 2000, UL1685, EN 50399, GB/T18380.(31—36)—2008
Model Number:
YY110

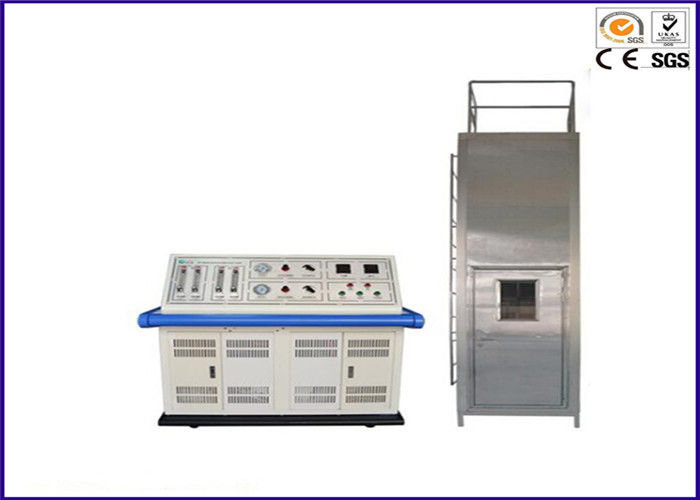

High Precision Bunched Cable and Wire Vertical Flame Spread Flammability Testing Equipment
Description:
This product is included in the IEC 60332-3-10, KS C IEC 60332-3-21,22,23,24,25(Category A-D) standard series. This equipment assesses the flame spread of an electric wire or cable, vertically positioned using an ignition source stated in the standard while continually supplying a fixed air flux.
Also if the standard type burner is regulated 20 degrees the test applicable to IEEE383(IEEE1202) can be carried out.
Standard:
UL1685, IEC 60332-3-10, EN 50399, GB/T 18380.31
Specification:
1. Test Chamber Material : Stainless Steel
2. Test Chamber Dimension : (W) 1,000 x (D) 2,000 x (H) 4,000 mm
3. Test Chamber Observation Window : Pyrex Glass(5mm thick)
4. Test Chamber Lummy Board : 10mm thick
5. Test Ladder Standard Ladder Dimension : (W) 500 x (H) 3,500 mm
6. Test Ladder Wide Ladder Dimension : (W) 800 x (H) 3,500 mm
7. Ribbon type Propane Gas Burner
8. Heat Source Material : Stainless Steel
9. Heat Source Dimension of Burner Face : (L) 257 x (W) 4.5 mm
10. Space of Hole : 3.2mm from one another
11. Mixing System : Ventury Type Mixer
12. Control Rack Dimension : (W) 730 X (D) 650 X (H) 1,400/ 19" Rack
Test result:
1. Flameout Time
2. Chamber Average Temperature
3. Max. Chamber Temperature
4. Min. Chamber Temperature
5. Burner Average Temperature
6. Max. Burner Temperature
7. Min. Burner Temperature
8. Average Inlet Flow(L/Min)
9. Average Outlet Flow(m/sec)
10. Vi Calibration
11. Average Heat Energy
12. Total Gas Flowrate
13. Add photo feature of carbonization area
