DONGGUAN YUYANG INSTRUMENT CO.,LTD
China Good Quality Manufacturer of Testing Equipment
 |
| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISO 6925, BS 6307, BS 4709 |
| Model Number: | YY413 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box |
| Delivery Time: | 8 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5 sets per month |
| Product Name: | Fire Testing Equipment | Usage: | Carpet Flammability Tester |
|---|---|---|---|
| Dimension: | 380*380*380MM | Power Supply: | 220V 50HZ |
| Material: | Stainless Steel | Weight: | 45kg |
| High Light: | smoke density test apparatus,fire test chamber |
||

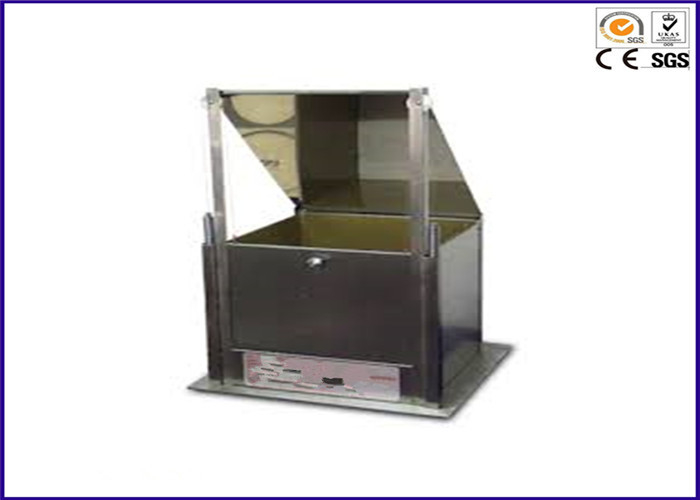

380×380×380mm Laboratory Carpet Flame BS6307 Fire Testing Equipment
Description:
Carpet Flammability Tester is used to assess the burning behavior, such as flame-retardant and heat shrinkage, of textile floor coverings in a horizontal position when exposed to a small source of ignition under controlled laboratory condition. There are two test methods: one is hot metal nut method, another is methylamine method.
Standards:
ISO 6925, BS 6307, BS 4709
1. Stainless steel working chamber, and equipped with removable skateboard;
2. Equipped with 45° viewers at the top of test chamber, convenience to observe sample;
3. Provide with standardized metal sampling board;
4. Provide standard methylamine pills and stainless steel nut that endure for 900℃ temperature;
5. Use asbestos heat isolation materials around and at the bottom of test chamber.
Specification:
|
Model |
HH413 |
|
M16 hexagonal nut |
Weight 30+3/-2g, A2 steel |
|
Steel loop |
Ring cross-section area 4×4mm, inner diameter 250mm |
|
Square metal plate |
230×230mm, thickness 6.5±0.5mm Center hole: 205mm (BS6707 4.2 |
|
Transparent grid |
Diameter 245mm |
|
Test chamber dimension |
380×380×380mm |
|
Gas source |
For industrial use propane or butane |
|
Timer accuracy |
0.1s |
|
Weight |
45kg |
|
Power supply |
220V, 50Hz |
