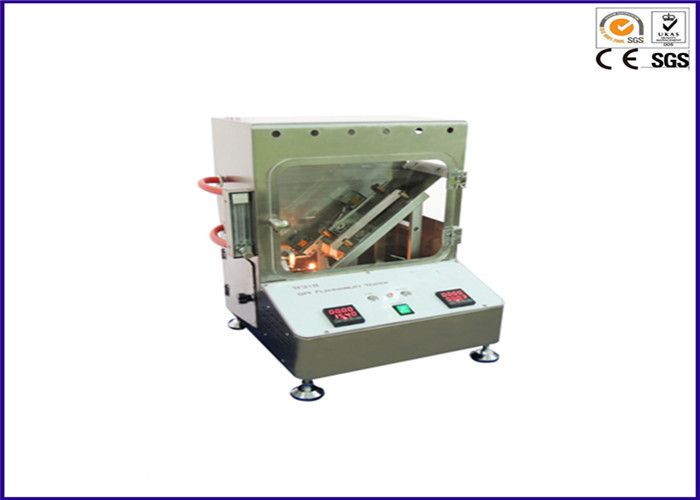

SPI Flammability Testing Equipment For Vinyl Material 500 X 450 X 650mm

SPI Flammability Testing Equipment For Vinyl Material 500 X 450 X 650mm

  • SPI Flammability Testing Equipment For Vinyl Material 500 X 450 X 650mm
  • SPI Flammability Testing Equipment For Vinyl Material 500 X 450 X 650mm
SPI Flammability Testing Equipment For Vinyl Material 500 X 450 X 650mm
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: CFR 16 Part 1611
Model Number: YY116
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Product Name: Flammability Testing Equipment Usage: SPI Flammability Tester
Timer Accuracy: 0.01s Power Supply: 220V 50HZ
Standards: CFR 16 Part 1611 Dimension: 500 X 450 X 650 Mm
High Light:

flame test equipment

,

flammability test apparatus

500 x 450 x 650mm SPI Flammability Testing Equipment for Vinyl Material





Application:


SPI Flammability Tester (Vinyl Material), to determine the ignition properties of vinyl plastic film material according to CFR 16 Part 1611 – U.S.A. Flammable Fabrics Act for flammability of apparel vinyl plastic film.
The rate of burning shall not exceed 1.2 in./s as judged by the average of five determinations lengthwise and five determinations transverse to the direction of processing, when specimen is placed at an angle of 45 degree and expose to the standardized flame (22# fire nozzle, 1/2 inch. In length).





Standards: CFR 16 Part 1611





Specifications:



1. The most advanced thread locking device and sample holder save 80% of operation time that faster than other suppliers’ design

2. Equipped with photoelectricity sensor accurately and automatically record burning time with no damage ensures 5 years life or longer

3. Timer accuracy up to 0.01 second;

4. 22# needle flame, 9/16 inch from the specimen, flame length adjusted by flow-valve;

5. Timing distance of burning: 6 inch





Included Accessories:



1. 1 set of main machine. Completed with cabinet, flow-meter, timer, transparent viewing window, etc.

2. 1 set of sample holder

3. 20 White cotton threads

4. 1 Sample cutting template

5. 5 22# Fire nozzles





Optional Accessories:



l Laboratory fume hood

Standards CFR 16 Part 1611

Power 220 /110 V 50/60 Hz 2 A

Weight 30 Kg

Dimensions 500 x 450 x 650 mm(LxWxH)



SPI Flammability Testing Equipment For Vinyl Material 500 X 450 X 650mm 0
