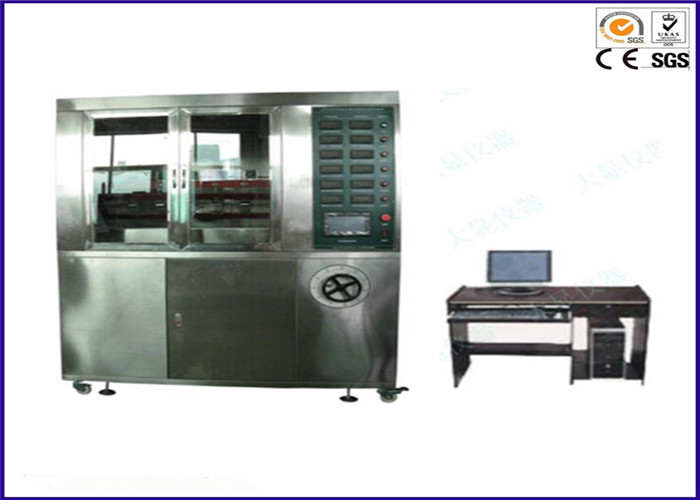

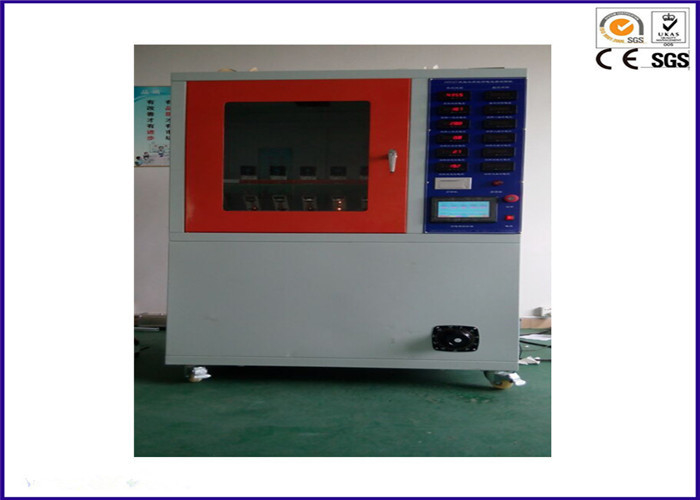

Automatic Tracking Test Apparatus , IEC 60587 6 KV High Voltage Tracking Index Tester

Automatic Tracking Test Apparatus , IEC 60587 6 KV High Voltage Tracking Index Tester

  • Automatic Tracking Test Apparatus , IEC 60587 6 KV High Voltage Tracking Index Tester
  • Automatic Tracking Test Apparatus , IEC 60587 6 KV High Voltage Tracking Index Tester
  • Automatic Tracking Test Apparatus , IEC 60587 6 KV High Voltage Tracking Index Tester
  • Automatic Tracking Test Apparatus , IEC 60587 6 KV High Voltage Tracking Index Tester
Automatic Tracking Test Apparatus , IEC 60587 6 KV High Voltage Tracking Index Tester
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: IEC 60587, GB/T6553, ASTM D 2303, IEC 60587
Model Number: YY117
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Product Name: Flammability Testing Equipment Usage: High Voltage Tracking Test Apparatus
Material: Stainless Steel Power Supply: 220V 50HZ
Test Current: 1A±0.1A Heigh Drops: 30-40mm±5mm
Test Voltage: 100~600V Adjustable Electrode Pressure: 1.00N±0.05N
High Light:

flame test equipment

,

flammability test chamber

IEC 60587 6 KV High Voltage Tracking Index Test Apparatus Flammability Testing Equipment





Description:



Tracking Index Tester is a fully automatic instrument contained in its own cabinet to maximize the safety of the operator. Inside the well lit cabinet, a test specimen is placed on a glass plate and two platinum electrodes are lowered onto the top surface.



A gauge block is supplied with the instrument to ensure the electrodes have the proper distance between them. The table height is easily adjustable to ensure the proper angle of the electrodes and height of drops. The rest of the test is controlled from outside the test chamber with the door closed.

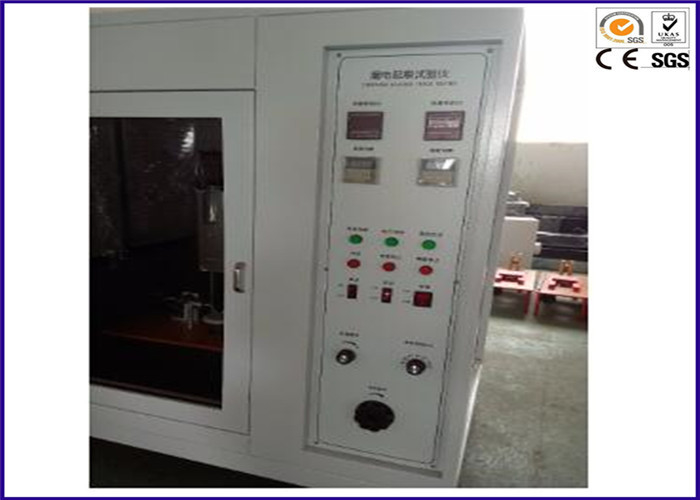

The voltage,limiting current, drip rate and number of drips are all set on the control panel. An operator should observe the test to see if a flame ignites. The instrument sounds an alarm if there is a tracking failure of at least two seconds.





Standards:



IEC 60587-1984, GB/T6553-2003,

ASTM D 2303 Standard Test Methods for Liquid-Contaminant, Inclined-Plane Tracking and Erosion of Insulating Materials

IEC 60587 : Test methods for evaluating resistance to tracking and erosion of electrical insulating materials used under severe ambient conditions





Specifications:



Electrode Materials The electrode caput of brass and platinum
Electrode Distance 4.0mm±0.1mm,60±5°angle
Test Voltage 100~600V adjustable, displayed value: r.m.s

Test Current





Current limiting 1A±0.1A adjustable,
displayed value:r.m.s, tolerance of 1.5%

Electrode Dimensions





width: 5mm±0.1mm,
thickness: 2mm±0.1mm,
length >12mm,
end chisel-edge angle : 30°±2°,platinum.
Electrode Pressure 1.00N±0.05N
Dripping Nozzle outer diameter: 0.9mm~1.2mm for solution A
0.9mm~3.45mm for solution B
Dripping Interval

0-99 seconds (adjustable),the time for 44-55/1cm3(adjustable)

drops to fall on the specimen shall be (30±2)min.

Heigh Drops

30-40mm±5mm(adjustable)





Features:


1. Testing according to IEC 60112-2003
2. All stainless steel structure.
3. The door will be locked automatically when test starts.
4. Fully automatically testing.
5. Software controlled test procedure with PLC.
6. Electronic controlled pipette.
7. Cabinet for testing and fan to exhaust gases.
