Stainless Steel Laboratory Fire Testing Equipment For Optical Fibre Cables

Stainless Steel Laboratory Fire Testing Equipment For Optical Fibre Cables

  • Stainless Steel Laboratory Fire Testing Equipment For Optical Fibre Cables
  • Stainless Steel Laboratory Fire Testing Equipment For Optical Fibre Cables

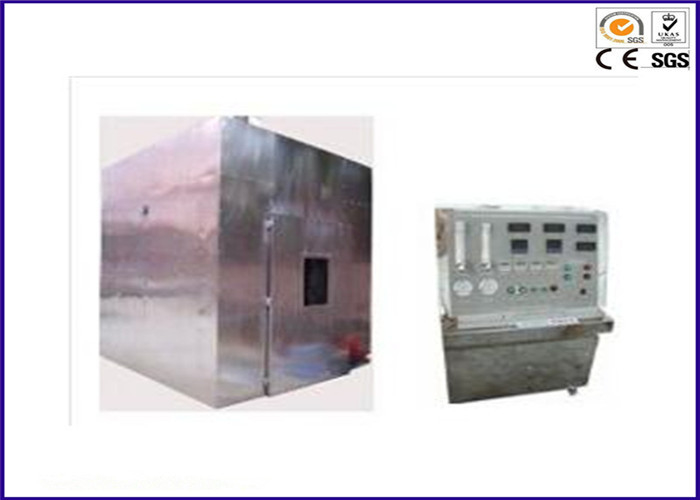

Stainless Steel Laboratory Fire Testing Equipment For Optical Fibre Cables
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: GB/T 19216, IEC 60331
Model Number: YY420
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2 sets per month
Contact Now
Detailed Product Description
Product Name: Fire Testing Equipment Usage: Cables Circuit Integrity Burning
Test Transformer: 3000VA Test Voltage: AC 1000V
Material: Stainless Steel Test Current: 3A
High Light:

smoke density test apparatus

,

fire test chamber

Laboratory 3000VA Optical Fibre Cables Circuit Integrity Fire Testing Equipment





Description:



The tester is suitable for test electric and optical fibre under the flame not less than 750℃, whether keep circuit integrity under fire conditions.





Standards:



GB/T19216 Test for electric or optical fibre cables under fire conditions---Circuit Integrity--Procedures and requirement for fire with shock--Cables of rated voltage up to and including 0.6/1KV

IEC60331 Tests for electric cables under fire conditions---Circuit Integrity--Procedures and requirement for fire with shock--Cables of rated voltage up to and including 0.6/1KV



Features:



1. Stainless steel body;

2. High-precision temperature controller, accurate temperature control cabinets;

3. High-precision timer to set the time accurately stops;

4. Control interface is friendly, easy to operate;

5. Equipped with two steel cup sizes, quantity can be configured according to customer needs.



Specifications:



1. Burner:Venturi mixer for the nozzle with a nominal length of 500mm width of 15mm belt type propane gas torch. The nozzle has three rows of staggered nominal diameters 1.32 mm, the center distance of 3.2 mm drilling;

2. Air flowmeter: 80L / min, propane flowmeter: 5L / min;

3. The burner control system is made of pressure regulator, piezoelectric igniter, flameout device, temperature control thermocouple, gas source (owned), control valve, ignition device, gas pipeline, flow meter, Venturi mixer , Sprayer, ball valve, air lines, air compressed bottles(owned);

4. Timer: 0 ~ 99.99s / m / h arbitrarily set;

5. Ignition device: for automatic ignition;

6. Temperature controller: temperature monitoring by the two parts, the temperature range: 0 ~ 1000 ℃ arbitrarily set;

7. Test transformer: three sets 3000VA;

8. Test voltage: AC 1000V;

9. Test current: 3A.
