DONGGUAN YUYANG INSTRUMENT CO.,LTD
China Good Quality Manufacturer of Testing Equipment
 |
| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ASTM D93, GB/T 261, ISO 2719 |
| Model Number: | YY122 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 6 sets per month |
| Product Name: | Flammability Testing Equipment | Usage: | Closed Flash Point Test Apparatus |
|---|---|---|---|
| Range: | Indoor Temperature—400℃ | Resolution: | 0.1℃ |
| Accuracy: | 0.5% | Power: | < 500W |
| Supply Voltage: | AC220V ± 10% | Weight: | 18kg |
| High Light: | flammability test apparatus,flammability test chamber |
||

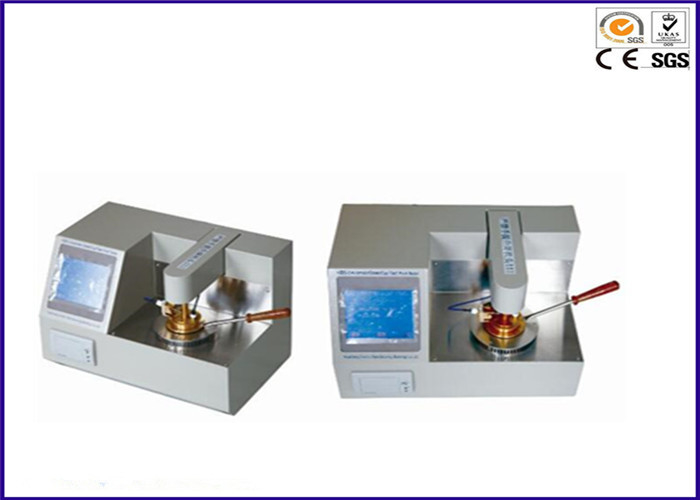

ASTM D93, GB/T 261, ISO 2719 Automatically Closed Flash Point Testing Apparatus
Description:
The flash point of a volatile material is the lowest temperature at which it can vaporize to form an ignitable mixture in air. Measuring a flash point requires an ignition source. At the flash point, the vapor may cease to burn when the ignition source is removed.
This automatically closed flash point tester, used to measure open and closed flash point of petroleum products. Adopt foreign advanced technology, accord with national standard, such as the United States, the European Union standards. Widely used in railway, aviation, electric power, oil industry and scientific research departments, etc.
Standards:
ASTM D93, GB/T 261, ISO2719
Specifications:
1. Range: indoor temperature—400℃
2. Resolution: 0.1℃
3. Accuracy: 0.5%
4. Temperature Probe: Platinum resistance (PT100)
5. Flash Fire sensors: ion detection
6. Power: < 500W
7. Rate of Temperature Increase: conform to the standards such as GB, the United States, the European Union
8. Ambient temperature: 10-40 ℃
9. Relative humidity: <85%
10. Supply voltage: AC220V ± 10%
11. Dimension: host: 190*260*285 (mm) furnace: 280*260*285(mm)
12. Weight: 18kg
Contact Person: Yannis Ye
Tel: +86-13825723571
