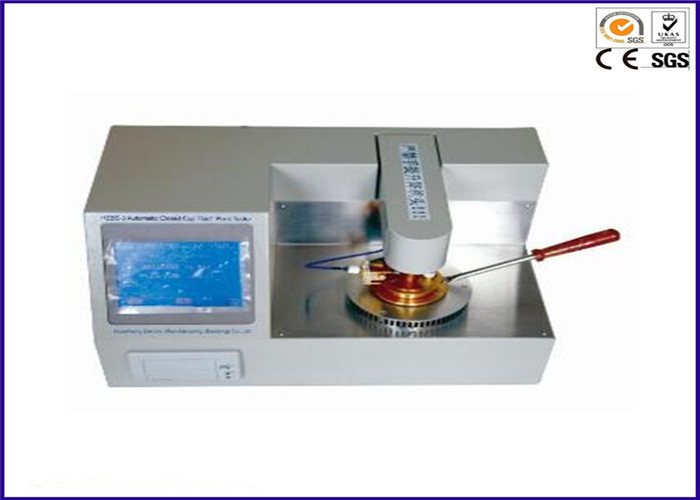

Fully Automatic Closed Cup Flash Point Tester For Petroleum / Chemical

Fully Automatic Closed Cup Flash Point Tester For Petroleum / Chemical

  • Fully Automatic Closed Cup Flash Point Tester For Petroleum / Chemical
  • Fully Automatic Closed Cup Flash Point Tester For Petroleum / Chemical
Fully Automatic Closed Cup Flash Point Tester For Petroleum / Chemical
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ASTM D93, GB/T 261, ISO 2719
Model Number: YY421
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 6 sets per month
Contact Now
Detailed Product Description
Product Name: Fire Testing Equipment Usage: Closed Flash Point Test Apparatus
Range: Indoor Temperature—400℃ Power: < 500W
Dimension: 397*305*240 Mm Weight: 18kg
High Light:

fire test chamber

,

flame test apparatus





Automatically Petroleum Products Closed Flash Point Fire Testing Equipment





Description:



Fully automatic flash point tester is an ideal flash point analyzer(closed-up) for petroleum, chemical, power station, environmental, railway, scientific research etc.
It complies to ASTM D93, IGB261-2008, SH/T0315 etc, and adopts microcomputer technology and realizes full automation.





Standards:



ASTM D93, GB/T 261, ISO2719



Features:

1. Color touch LCD screen display ,man-machine conversation interface with menu director
2. Adopts high speed signal processor: precision simulation/digital converter circuit
3. Adopts PID control algorithm: automatically adjust the heating curve according to standards.

4. Built-in automatic atmospheric pressure detector:automatic to detect and correct the atmosphere pressure and self-adjust the flash point.
5. Aspiration,stirring,ignition,testing,alerting,cooling,printing are fully automatic.
6. Automatically detect the whole testing process, opening the lid, ignition, alerting, cooling, printing, etc.
7. Security airless source of platinum alloy to ignite:stable,reliable and high precision.
8. Differential detection: automatic correction of systematic bias; automatic stop testing by over temperature detection and alert.
9. Equipped with parameters reminders like: test date, test time
10. Data storage function: store 300 groups testing data.





Parameters:



Display :
Color touch LCD display screen
Test method:
Thermocouple differential detection
Test range:
Room temperature-350℃
Resolution:
0.1℃
Repeatability:
flash point<104℃,allowed ±1℃; flash point≥104℃ allowed ±2℃ flash point≤110℃,allowed ±1℃; flash point>110℃ allowed ±2℃
Printer:
High speed thermal printer,paper size:55mm
Temperature Detection:
Imported platinum resistance (Pt100Ω)
Ignition mode:
Automatically electronic ignition with airs source
Self-checking :
automatic fault checking
Power consumption:
<550w
Temperature:
Atmospheric temperature: 10℃-45℃,humidity: 30-80%
Power:
AC220V±10%
Dimension:
397*305*240 mm
Weight:
About 15 kg





Fully Automatic Closed Cup Flash Point Tester For Petroleum / Chemical 0
