| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ASTM D1230,FTMS 191-5908,CRF 16-1610,CALIF TB117,NFPA 702,ISO 8124-2 |
| Model Number: | YY123 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 3 sets per month |
| Product Name: | Flammability Testing Equipment | Usage: | Textile Flammable Performance |
|---|---|---|---|
| Spread Time: | 0-99.99s | Firing Time: | 1s Or Specified |
| Flame Height: | 15.875mm | Specimens Clamp: | 152×38mm |
| Dimension: | 540×410×300mm(L×W×H) | Power Supply: | 220V |
| High Light: | flame test equipment,flammability test chamber |
||

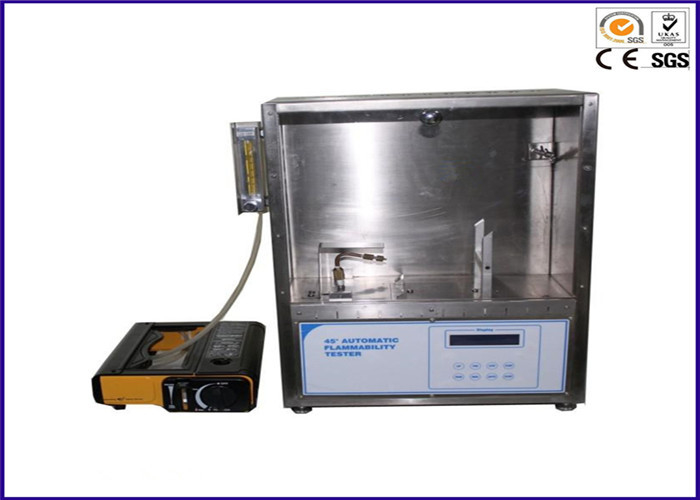

ASTM D1230 Lab 45 Degree Textile Performance Flammability Testing Equipment
Description:
45 degree flammability tester, check the flammable performance of the textile
Stainless testing room with glass window,after ignition automatic time (0.01 second precision) automatic or manual ignition.
Parameters:
Manual firing device, including sample holder and brushing device.
Spread time scope: 0-99.99s
Firing time: 1s or specified
Resolution: 0.01s
Specimens clamp inside dimension: 152×38mm
Flame height: 15.875mm
Dimension: 540×410×300mm(L×W×H).
Igniter model: comply to ASTMD1230
Power Supply: 220V
Accessories: clamps 4pcs, weights, calibration plate 1pcs, Flame Gauge 1pcs
Standards:
ASTM D1230,FTMS 191-5908,CRF 16-1610,CALIF TB117,NFPA 702,ISO 8124-2
Net weight: 15KG, Gross weight: 21KG
Plywood box size: 50*42*60cm
Brushing device
U-Frame Sample Holder
