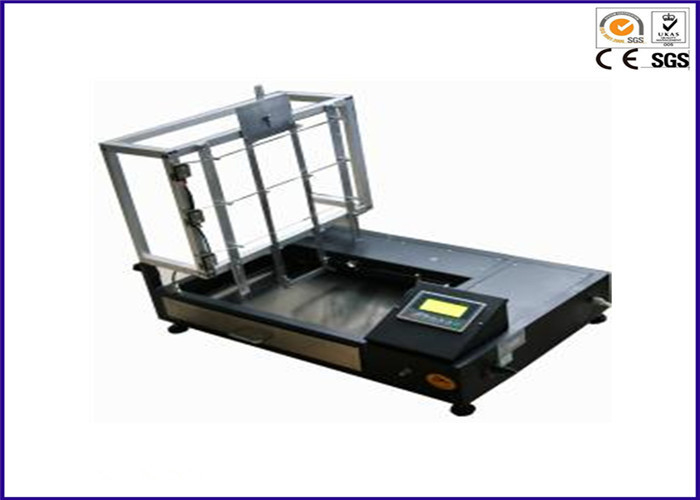

Multi-purpose Textile Flammability Testing Equipment with 0°/22.5°/90° Burner Angle

Multi-purpose Textile Flammability Testing Equipment with 0°/22.5°/90° Burner Angle

  • Multi-purpose Textile Flammability Testing Equipment with 0°/22.5°/90° Burner Angle
  • Multi-purpose Textile Flammability Testing Equipment with 0°/22.5°/90° Burner Angle
Multi-purpose Textile Flammability Testing Equipment with 0°/22.5°/90° Burner Angle
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: GB/T 5456,8746,BS EN ISO 6940,6941, EN ISO 15025,BS 5438
Model Number: YY124
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2 sets per month
Contact Now
Detailed Product Description
Product Name: Flammability Testing Equipment Usage: Multi-purpose Textile Flammability Tester
Test Sample: 560mmx170mm Flame Level: 0~60mm Adjustable
Burner Angle: 0°/22.5°/90°adjustable Firing Time: 5 S
Dimension: 93x65x88cm Weight: 30 Kg
High Light:

flammability test apparatus

,

flammability test chamber





Multi-purpose Textile Flammability Testing Equipment with 0°/22.5°/90° Burner Angle





Description:



This textile flammability tester machine is used to test the flame spread performance of single-or multi-component (coating, quilted, multi-layered, laminated products and similar combinations) including clothing, curtains, draperies and large tent awning and door cover textile at vertical condition.





Main Parameters:



Test sample: 560mmx170mm
Flame level: 0~60mm adjustable

Burner angle: included angle with level line:0°/22.5°/90°adjustable
Firing time: 5 s
Burning gas: butagas
Size(WxDxH): 93x65x88cm

Weight:≈30Kg
Power:1∮ AC 220V 50Hz

Applied standards: GB/T 5456,8746,BS EN ISO 6940,6941, EN ISO 15025,BS 5438, EN 1103, EN 14878





Accessories:



sample holders, Flame gauge 40mm 1pcs, 25mm 1pcs (ISO 6940,6941), Burner position pointer 2pcs (ISO 6940,6941), clamps 2 set, weights 8 pcs, Micro gas tank control device, Micro gas cylinders, power line 1pcs; Power converter(change power 110V 60Hz to 220V 50 Hz)



Gross weight after plywood box package: 50kg, Total size: 115*80*105cm



ISO6941.pdf

ISO 6941-2003.pdf
