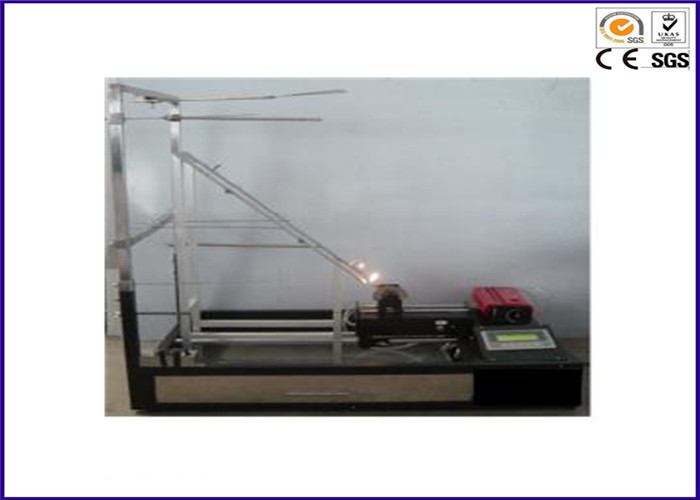

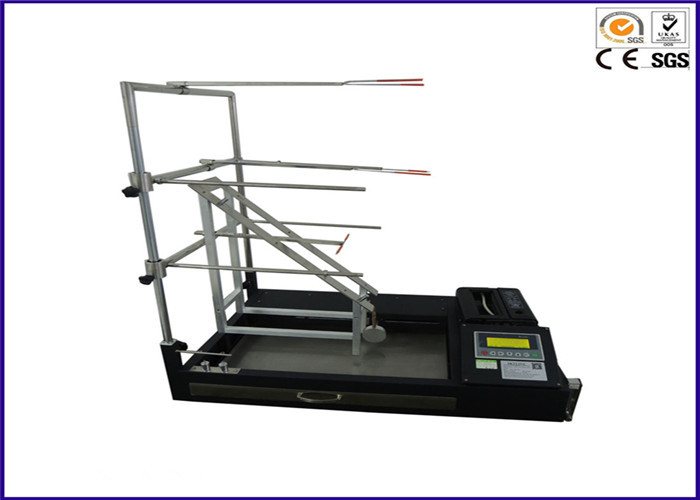

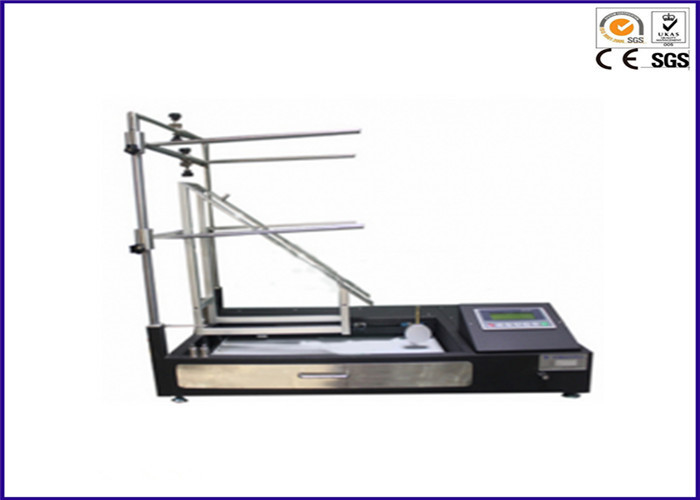

Children Clothes / Toys Testing Equipment , PLC Control EN71 2 Flammability Test Chamber

Children Clothes / Toys Testing Equipment , PLC Control EN71 2 Flammability Test Chamber

  • Children Clothes / Toys Testing Equipment , PLC Control EN71 2 Flammability Test Chamber
  • Children Clothes / Toys Testing Equipment , PLC Control EN71 2 Flammability Test Chamber
  • Children Clothes / Toys Testing Equipment , PLC Control EN71 2 Flammability Test Chamber
  • Children Clothes / Toys Testing Equipment , PLC Control EN71 2 Flammability Test Chamber
Children Clothes / Toys Testing Equipment , PLC Control EN71 2 Flammability Test Chamber
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: IS0 6941, EN71-2
Model Number: YY126
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3 sets per month
Contact Now
Detailed Product Description
Product Name: Flammability Test Apparatus Usage: Toys Comprehensive Flammability Tester
Ignition Time: 0~99.99S Continue Burning Time: 0-999.9S
Dimension Of Specimen: 150mmX560mm Power: AC 200V 50Hz
Dimension: 100*68*46cm Weight: 40 Kg
High Light:

flammability test apparatus

,

flammability test chamber

EN71-2 Toys Comprehensive Flammability Testing Equipment PLC Control





Description:



It is used for testing the flammability of toys, children clothes,evaluate the following toys flammability speed,time.

Testing the child clothing or the toy and accessories’ flammability , appraises the following toy type the rapidity of the flammability and time

The PLC control, the time is accurate, English man-machine contact surface

The different test method provides different sample jig

clamps are easy to operated

The jig may adjust willfully, suits different sample

Comply to standard EN71-2 2011





Summary:



This tester was designed according to EN71-2011 standard, both sell to overseas and domestic market.

(1) Adopt the minimize gas cylinder system, the instrument can be moved, take up small space. The user also can connect big gas cylinder.

(2) The gas system is controlled by PLC, ignite and continue burning time are accuracy,

(3) All frames can be adjusted to meet different testing need.

This instrument applies to test the performance of flame retardant of toys for children, completely applies to EN71-2-2008.





Main technical parameters:



1,Ignition time set range:0~99.99S Precision:0.01S

2,continue burning time range :0-999.9S precision0.1S

3,Please put this flammability into a cabinet to make test.

4,Ignition mouth size: applies to IS0 6941 standard.

5,Dimension of specimen: 150mmX560mm

6,Power: AC200V 50Hz

7. Weight:40KG

8. Gas: butane gas.

9. Mercerized Marker Thread: white cotton thread, density>50



Net weight: 45KG, Gross weight: 60KG

Plywood box size: 100*68*46cm



Children Clothes / Toys Testing Equipment , PLC Control EN71 2 Flammability Test Chamber 0



EN71-8.pdf
