Place of Origin:
China
Brand Name:
YUYANG
Certification:
AATCC-22-52、ASTM-D583-54、JIS-1018、JIS-1092、JIS-K6328、JIS-L1096、GB/T 4745-2012、ISO 4920-2012、ASTM D1913-2000、CNS 1481、QB/T 4548-2013
Model Number:
YY1205

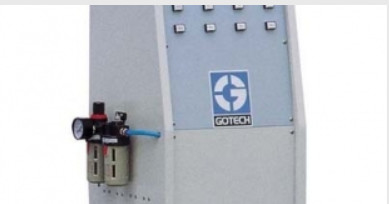

Durable Chair Furniture Testing Machine , Chair Armrest Strength Testing Machine
Application:
By applying a certain load onto the armrest of chair, inspect if the whole chair gets any wears and or damages on its the structure.
Specification:
| compression Plate | ø 127 ± 13 mm | |
| Static vertical force | Functional load: 890 N (200 lbf) Proof load: 1334 N (300 lbf) |
|
| Static horizontal force | Functional load: 445 N (100 lbf) Proof load: 667 N (150 lbf) |
|
| Pressure gauge display | LCD, 0~9,999 | |
| Dimension (W×D×H) | Main body | 250 × 90 × 170 cm |
| Control box | 45 × 38 × 125 cm | |
| Power | 1∮, AC220V (Specified by user) | |
The accessories such as the different grips, elongation measuring-devices... etc. are
equipped according to the requirements specified in the contract; our sales representative will
also give the proper suggestions to our customer beforehand.
