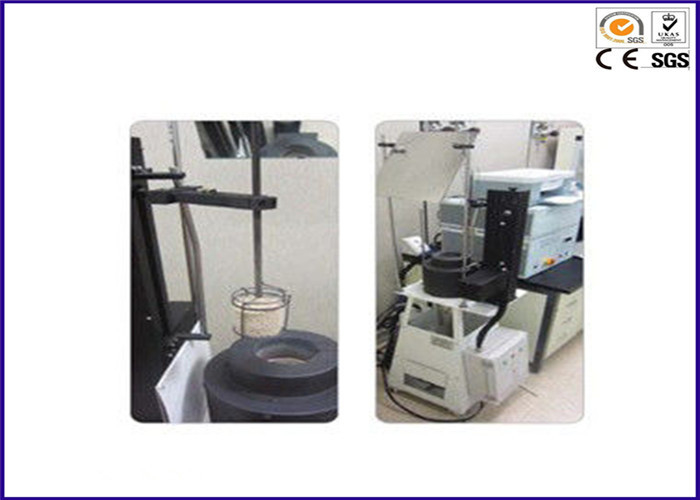

EN ISO 1182 Non Combustibility Test Apparatus For Building Materials

EN ISO 1182 Non Combustibility Test Apparatus For Building Materials

  • EN ISO 1182 Non Combustibility Test Apparatus For Building Materials
  • EN ISO 1182 Non Combustibility Test Apparatus For Building Materials
EN ISO 1182 Non Combustibility Test Apparatus For Building Materials
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: GB/T 5464, ISO 1182, BS 476-4 & 11
Model Number: YY130
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Product Name: Flammability Testing Equipment Usage: Non-Combustibility Apparatus
Material: Stainless Steel Thermometers Range: 0 ~ 1000℃ 5%
Temperature Balanced Time: 35min~40min Air Cover: Φ75 Mm × 500 Mm
Heating Furnace Size: Φ95 Mm × Φ75 Mm × 150 Mm Power: AC 220V, 50HZ
High Light:

flame test equipment

,

flammability test apparatus

ISO1182 Building Materials Non-Combustibility Apparatus Flammability Testing Equipment





Products:


Non-Combustibility Apparatus for Building Material is designed and manfacture according to ISO 1182 international standards. Furnace temperature can quickly reach temperature equilibrium into the test program; temperature curve can print free.



Standards:


ISO 1182: building products --- incombustible fire reaction test test
BS 476-4 & 11 ASTM E 136




Main Features:


1, Intelligent test system with Patent design;
2, Stainless steel burner, beautiful and easy to clean;
3, The heating furnace size: Φ95 mm × Φ75 mm × 150 mm;
4, 3 mm × 0.2 m Ni 80% Cr 20% resistance band;
5, Air cover: Φ75 mm × 500 mm;
6, Thermocouple: insulated nickel-chromium - nickel - aluminum armored Φ1.5 mm ;
7, Equipment with the power controller;
8, The temperature balanced time at 750℃ is about 35min~40min;
9, Thermometers range: 0 ~ 1000℃ 5%;
10, Equipped with mirror to see the interal of the furnace.




Control System:


1, High degree of automation, test procedure safe and reliable, easy to operate;
2, To use of high-quality strip heater, furnace temperature was raised to 900 ºC;
3, PLC control system + SSR temperature control system extending the life of furnace:
4, PLC output signal to control the heating voltage is 0-110VAC. Eliminate the influence of voltage fluctuation on temperature.
5, Temperature control: 750ºC±2ºC;Resolution:0.1ºC;
6, The sample is move up-down into the furnace automatically by motor.
7, 7 "touch screen for control parameter setting and display / test data acquisition and preservation / screen monitoring / real-time temperature curve shows / historical curve and data query;
8, With an audible alarm and alarm display functions accidents.
9, To equipped with printer, to print the temperature curve.




Specification:



Model YY130
Size 500mm x 500mm x 1500mm
Power 220V, 50Hz, 1500W
Weight 50kg
Manual Provided





EN ISO 1182 Non Combustibility Test Apparatus For Building Materials 0



GBT 5464-2010.pdf
