Integrated Design Fire Testing Equipment Smoke Density Test Apparatus ASTM E662

Integrated Design Fire Testing Equipment Smoke Density Test Apparatus ASTM E662

fire test chamber

flame test apparatus

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ASTM E 662, BSI 6401, ISO 5659-2, NES 711, GB/T 8323.2

Model Number:

YY424

Contact Us
Request A Quote
Product Details
Product Name:
Fire Testing Equipment
Usage:
Smoke Density Tester
Material:
Stainless Steel
Size:
1700(W)*750(D)*2000(H)mm
Power:
AC220V, 16A
Weight:
120kg
Highlight:

fire test chamber

,

flame test apparatus

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Plywood Box
Delivery Time
10 work days
Payment Terms
T/T, L/C, Western Union
Supply Ability
5 sets per month
Product Description

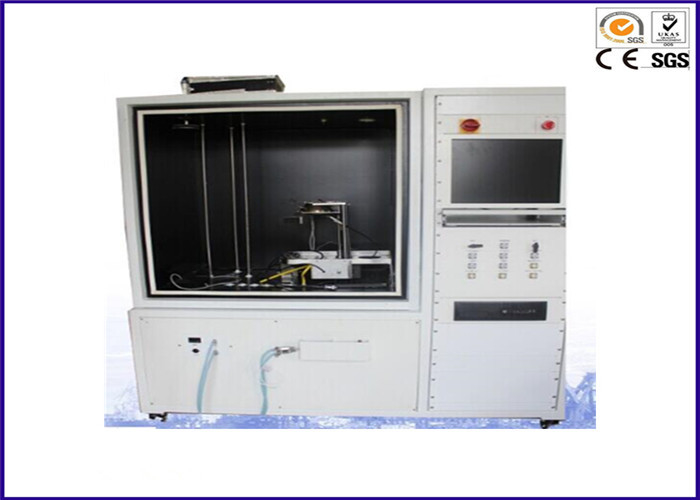

ASTM E662 Standard Fire Testing Equipment Smoke Density Test Apparatus





Introduction:


Measure the optical density of smoke when a certain thick specimen is exposed to a heat source of 25KW/m2 or 50KW//m2;
It is widely used in assessing characteristics of vehicle interior and inflammable cable.




Applicable standards:



ASTM E 662 Standard test method of specific optical density of smoke by solid material
BSI 6401 UK Standard of measuring specific optical density of smoke by material
ISO 5659-2 Plastic smoke generation, determination of optical density by a single chamber test
NES 711 Measure the smoke density index of a small specimen burning

GB/T 8323.2
Plastic—smoke generation—Part 2:Determination of optical density by a single-chamber test




Features:



1. Integrated design

2. 19" PC with Lab view.

3. Auto open ventilation up and down with cylinder, control the exhaust more efficiently.

4. Teflon coated inside, easy to clean and corrosion resistant.

5. Digital display of smoke optical transmittance and density.

6. Pre-heated apparatus for quick start-up and accurate data acquiring.

7. Safe blowout panel for safety, when the chamber pressure goes up very quickly.

8. USA Medtherm Heat Flux meter, portable water cooling system without running water supply.

9. Weighing sensor enables mass loss rate accurately.




Specifications:



1. Size: 1700(W)*750(D)*2000(H)mm;

2. Weight: 120kg;

3. Power supply: AC220V, 16A;

4. Gas source: Purity >95% propane;





Integrated Design Fire Testing Equipment Smoke Density Test Apparatus ASTM E662 0
