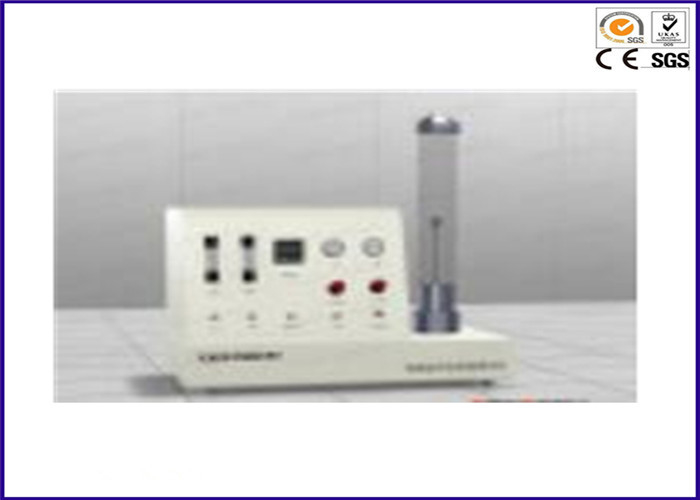

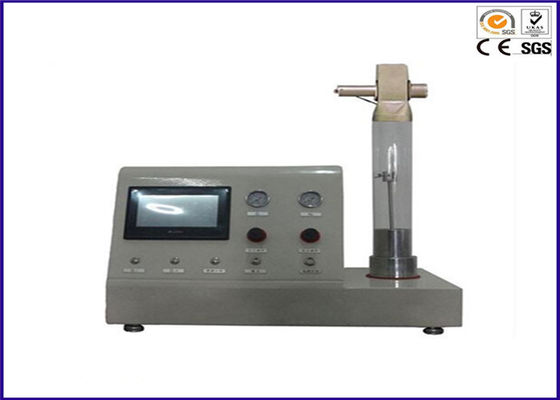

Limiting Oxygen Index Apparatus ISO 4589-2 ASTM D2863 With Smoke Density Tester

Limiting Oxygen Index Apparatus ISO 4589-2 ASTM D2863 With Smoke Density Tester

  • Limiting Oxygen Index Apparatus ISO 4589-2 ASTM D2863 With Smoke Density Tester
  • Limiting Oxygen Index Apparatus ISO 4589-2 ASTM D2863 With Smoke Density Tester
Limiting Oxygen Index Apparatus ISO 4589-2 ASTM D2863 With Smoke Density Tester
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: GB/T 2406.2 ASTM D2863 NES 714 ISO 4589-2
Model Number: YY907
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 8-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Product Name: Limiting Oxygen Index Apparatus Usage: Analysis Minimum Oxygen Concentration
Material: Stainless Steel Oxygen Concentration Measurement Range: 0~90%
Oxygen Mass Flow Meter Range: 0~10.0l/min Nitrogen Mass Flow Meter Range : 0~15.0l/min
Response Time: <10s Combustion Air Flow: 6, 40mm/s ± 2mm/s
High Light:

limited oxygen index tester

,

limiting oxygen index chamber





ISO 4589-2 ASTM D2863 Limited Oxygen Index Apparatus with Smoke Density Tester



Application:



Limited Oxygen Index with Smoke Density Tester is designed according to ISO4589.1-2006, it applies to analysis the minimum oxygen concentration needed to maintain combustion of the sample when the sample is under the test conditions specified in oxygen and nitrogen mixed gas;

This tester is installed with England imported oxygen sensor, and automatic control the oxygen and nitrogen flow with mass flow control meter. It is very easily and quickly to operate; It is used for evaluating homogeneity of solid material­­s, laminates, foam, film and thin film in the specified conditions of flammability.





Standards:



GB/T 2406.2

ASTM D2863

NES 714

ISO 4589-2





Specification:



Oxygen concentration measurement range 0~90%
Accuracy of oxygen concentration 0.1%
Oxygen Mass flow meter range 0~10.0l/min
Nitrogen Mass flow meter range 0~15.0l/min
Response time <10s
Oxygen concentration measurement accuracy ± 0.4%
Combustion tube top airflow 90mm ± 10MM/s
Combustion air flow in cylinder 6, 40mm/s ± 2mm/s
Concentration control accuracy ± 0.1%
Measurement time accuracy ± 0.5S
Jet flame of portable igniters 16± 4mm, adjustable;
Double flow meter and pressure gauge devices ±1% in precisionrement accuracy
