DONGGUAN YUYANG INSTRUMENT CO.,LTD
China Good Quality Manufacturer of Testing Equipment
 |
| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | GB/T2406-93 |
| Model Number: | YY912 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 sets per month |
| Product Name: | Oxygen Index Apparatus | Usage: | Oxygen Index Test |
|---|---|---|---|
| Temperature: | Room Temperature~40 Degree | Power: | 220V 50HZ 16A |
| The Maximum Power: | 0.5 KW | Weight: | 24kg |
| Equipment Dimensions: | 0.54 ×0.33×0.6 (L*W*H)m | Response Time: | <5s |
| High Light: | limited oxygen index tester,limiting oxygen index chamber |
||

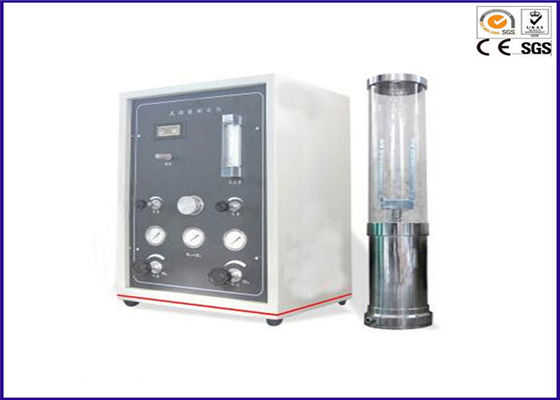

LCD Diaplay Limiting Oxygen Index Tester, Oxygen Index Testing Equipment
Description:
Requirements for the assessment of polymer in the combustion performance test conditions, that determine the polymer just to maintain the minimum combustion volume
percentage of oxygen concentration. For plastic, rubber, fiber, foam, film, and film
and other materials, determination of combustion performance. Microcomputer control, LCD display, data print, easy to operate, elegant appearance.
Standard:
Executive GB/T2406-93 standards.
Technical parameters:
| Name | limiting Oxygen index tester / Oxygen index testing equipment |
| Temperature | Room temperature~40 degree centigrade |
| Relative humidity | ≤70% |
| Power | 220V±10 |
| The maximum power | 0.5 KW |
| Gas source | Industrial nitrogen,oxygen purity>99% |
| Input pressure | 0.25~0.5 Mpa |
| Working pressure | 0.1~0.2 Mpa |
| Precision regulators | ≤0.001 Mpa/min |
| Response time | <5s |
| Digital resolution | ±0.1% |
| Accuracy | 0.2 class |
| Accessories | |
| Annex 1 sets of random | |
| Test Equipment dimensions | 0.54 ×0.33×0.6 (L*W*H)m |
| Equipment use area | 0.6 Square meters |
| Weight of test equipment | 24 Kg |
