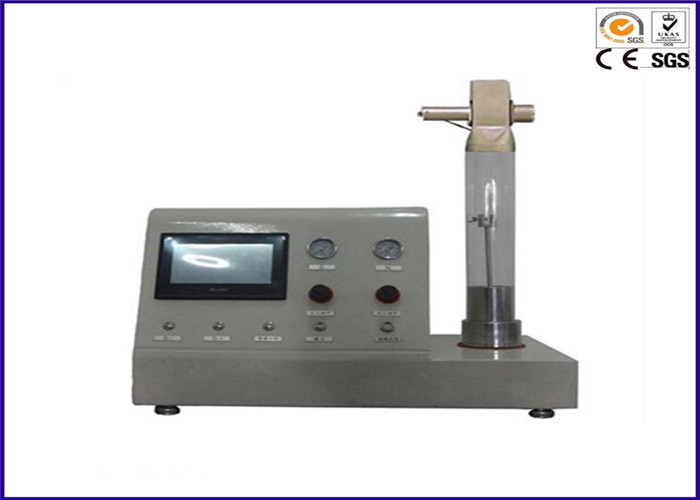

High Profermance Limiting Oxygen Index Chamber , Oxygen Index Test For Cables

High Profermance Limiting Oxygen Index Chamber , Oxygen Index Test For Cables

  • High Profermance Limiting Oxygen Index Chamber , Oxygen Index Test For Cables
  • High Profermance Limiting Oxygen Index Chamber , Oxygen Index Test For Cables
High Profermance Limiting Oxygen Index Chamber , Oxygen Index Test For Cables
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ASTMD2863, ISO4589, GB/T2406-93
Model Number: YY913
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Product Name: Oxygen Index Apparatus Usage: Limit Oxygen Index Test
Material: Stainless Steel Power: 220V 50HZ 16A
Response Time: <10S Combustion Tube Inner Diameter: ≥ 75 Mm
Gas Flow Rate: 40mm ± 10mm / S Working Pressure: 0.1Mpa
High Light:

limited oxygen index tester

,

limiting oxygen index chamber





High Profermance EN ISO 4589-2 Limit Oxygen Index Test Apparatus





Application:



Under predetermined conditions, in a mixed stream of oxygen and nitrogen measured, just to maintain the minimum oxygen concentration of the sample required for combustion (also known as the oxygen index) - expressed in percent by volume. It can be used to determine the combustion performance of a variety of textiles, including woven, knitted and non-woven fabrics, etc. Also be used to determine the burning of the plastics, rubber, paper, etc





Standards:



ASTMD2863, ISO4589, GB/T2406-93

GB/T5454-1997 :"Determination of burning behavior of textile products approved oxygen index assays"

GB/T2406.2-2009: "Plastics - Determination of burning behavior - Part 2 at room temperature Oxygen Index test method."

ISO 4589-2 :Plastics-Determination of burning behaviour by oxygen index-Part 2: Ambient-temperature test Plastics - Determination of burning behavior by oxygen index - Part 2: Test temperature

ASTM D 2863: is similar to the supply of plastic burning candle minimum oxygen concentration measuring method (oxygen index)

BS 2782-1: Method 141 plastic test methods - Part 1: Thermal Properties Method 141 combustion oxygen index determination





Technical Parameters:



Sensor Imported oxygen LCD display
Digital display of oxygen concentration 0-100%
Resolution ± 0.1%
Measurement accuracy 0.5
Response time <10S
Combustion tube inner diameter ≥ 75 mm
The gas flow rate of the combustion cylinder 40mm ± 10mm / s
Working pressure 0.1Mpa
The oxygen / nitrogen mixed gas inlet: including the regulator valve, the flow regulating valve, a gas filter, and the mixing chamber.
The sample holder can be used for soft and hard plastic.
Propane (butane), the ignition system, the flame length 5mm-60mm can be freely adjusted
Gas: industrial grade oxygen / nitrogen
