Place of Origin:
China
Brand Name:
YUYANG
Certification:
ASTM D56, ISO 2719-88
Model Number:
YY434

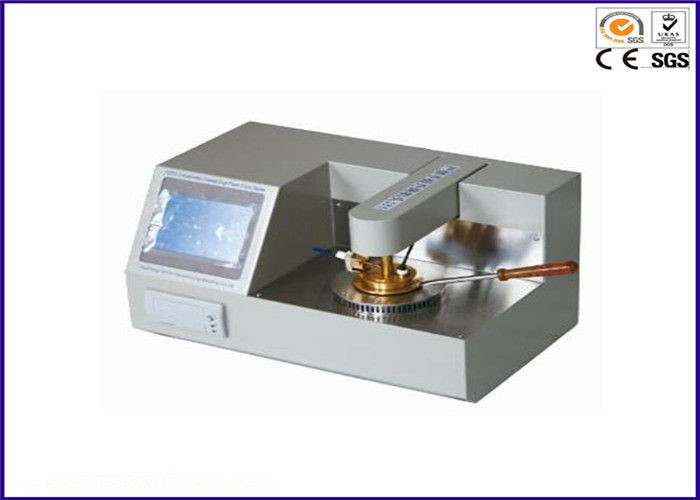

Tag Closed Cup Auto Flash Point Analyser, ASTM D56 Fire Testing Equipment
Description:
TAG Closed Cup Auto Flash Point Analyzer fit to the requirements of international standards ISO2719-88, using micro-computer technology control, automatic electronic ignition without gas supply, POST function, measurements accurate, repeatable, reliable performance, simple operation. Oil, chemicals, power, environmental protection, railways, research and other departments ideal instrument flash point testing.
Standard:
ASTM D56
The regulation of ISO 2719-88 requirements
Features:
1, 7-inch color touch-screen LCD display, English interactive display interface;
2, PID control algorithms automatically adjust the heating curve according to standards;
3, Equipped with automatic detection chip atmospheric pressure to measure atmospheric pressure.
4, A big size data storage function, can store 300 results for any time historical record;
5, Automatic error correction system, automatic stop when temperature is alarm;
6, Mixing, ignition, detection, alarm, cooling, print is automatically controlled;
7, The testing process automatically lid opening, ignition, alarm, cooling and printing;
8, Platinum alloy heating wire ignition, stable and reliable, high precision;
9, Can be connected to a laptop via USB interface communication, compatible with WINDOWS XP / WINDOWS 7 system, network management
10, Multilingual language operation.
11 ,Warming, openings, fire, alarm, cooling, printing is automatically controlled by system.
12, High-speed signal processors, high-precision analog / digital conversion circuit, stable instrument performance and test accuracy
12, Equipped with high-speed thermal mini-printer, print beautiful, fast, with a print spooling function
Technical Parameters:
|
Display method: |
Critical digital oxygen 7-inch color touch screen display |
|
Measurement: |
Differential detection type thermocouple |
|
Measuring range: |
Room temperature -399 ºC |
|
Resolution: |
0.1ºC |
|
Repeatability: |
National Standards: flash point <104 ºC when tolerance ± 1 ºC, flash point ≥104 ºC when tolerance ± 2 ºC |
|
Printer: |
High-speed thermal printer, 56 mm paper width |
|
Temperature detection: |
Import platinum resistance (Pt100Ω) |
|
Ignition: |
Airless electronic ignition source |
|
Self-test function: |
Instrument automatic fault diagnosis |
|
Cooling method: |
Forced air |
|
Power consumption: |
<550W |
|
Environment |
Temperature of 10 ºC -45 ºC, humidity 30-80% |
|
Power supply: |
AC220V±10% |
|
Dimensions: |
450*280*290 mm |
|
Weight: |
About 15KG |
