High Precision 0.7 Cubic Meter Toxicity Index Test Apparatus NES 713

High Precision 0.7 Cubic Meter Toxicity Index Test Apparatus NES 713

fire test chamber

flame test apparatus

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ASTM, ISO, UL, EN

Model Number:

YY435

Contact Us
Request A Quote
Product Details
Material:
Stainless Steel
Product Name:
Fire Testing Equipment
Usage:
Toxicity Index Test
Control Unit:
530 (W) × 270 (D) × 280 (H)
Volume:
0.7 M3
Power Supply:
AC220V±10%
Weight:
70KG
Chamber Dimensions:
1100 (W) × 800 (D) × 1300 (H)
Highlight:

fire test chamber

,

flame test apparatus

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Plywood Box
Delivery Time
5-8 work days
Payment Terms
T/T, L/C, Western Union
Supply Ability
5 sets per month
Product Description

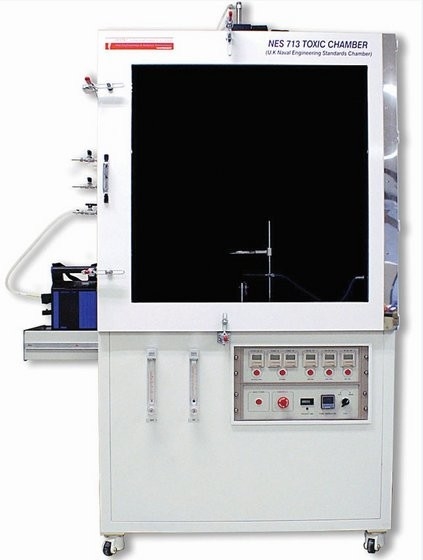

High Precision 0.7 Cubic Meter Toxicity Index Test Apparatus NES 713





Description:



The NES 713 is used for the determination of the toxicity index of the products of combustion from small specimens of material.





Feature:



1. The Chamber has a steel framework for strength and is constructed from fire retardant grade polypropylene with welded seams and a volume of 0.7 cubic metres.

2. The Door, which gives full access to the Chamber for easy cleaning is constructed from clear polycarbonate sheet, backed with laminate for strength and rigidity.

3. Gas Burner has a spark ignition system which automatically re-ignites should the flame extinguish.

4. 15 sampling positions are provided for use with colorimetric Gas Reaction Tubes or optional specific Gas Analysers.

5. Separate Control Unit houses the Flowmeters, Timer, Methane and Air Controls.

6. Forced-air extraction system for evacuating the Chamber after a test.

7. Internally mounted Stirring Fan for rapid mixing of combustion products.





Specification:



1. Chamber Dimensions (mm) 1100 (W) × 800 (D) × 1300 (H)

2. Control Unit Dimensions (mm) 530 (W) × 270 (D) × 280 (H)

3. Voltage: Dual - 110V-60Hz 3A - 230V-50Hz 2A

4. Weight: 70kg



Gas Cf (ppm)
CO2 100000
CO 4000
H2S 750
NH3 750
HCHO 500
HCl 500
CH2CHCN 400
SO2 400
NOX 250
C6H5OH 250
HCN 150
HBr 150
HF 100
