225 Sole Bending / Outsole Flexing Footwear Testing Equipment 90 Cycles/min
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: SATRA PM133
Model Number: YYX-011
Payment & Shipping Terms:
Packaging Details: wooden case
Delivery Time: 15 Work days
Supply Ability: 100 Set/Sets per Month
Contact Now
Detailed Product Description
Cloth Tape Size Length: 1930 ±50mm Cloth Tape Speed: 90cycles/min
Large Central Wheel Diameter: 225 Small Central Wheel Diameter: Φ60mm, Φ90mm, Φ120mm
Dimension: 1300*850*750mm(L×W×H) Weight: 160kg
Counter LCD: 0-999,999 Standard: SATRA PM133
High Light:

fatigue tester machine

,

perspiration tester



225 Sole bending /Outsole Flexing Footwear testing Equipment 90cycles/min





Detailed Descriptions:



Used to test shoe sole material on the transmission of cloth belt around the roller do the cycle test, to observe the degree of resistance to bending. Sole bending testing machine is for the flexing test of the non-leather outsole. Sew up or stick the non-Leather outsole, put it to the turning wheel. Turn on the wheel, the outsole will be flexed. After a few times, check the damage and breakage. The small wheel is motivated by the bigger wheel. There are 3 types of the small wheel with different diameter for change as to get different flexing data for comparison





Main Parameters:



Model YYX-011
Cavans tape size Length: 1930 +/-50mm
Vacans tape speed 90 cycles / min
Large central wheel diameter 225
Small central diameter 60mm, 90mm, 120mm
Simultaneously test Max. 6 soles
Counter LCD, 0~999, 999
Motor AC, 1/2hp Frequency conversion motor
Machine Size 129Lx75Wx70Hcm
Weight 160kgs
Power AC220V, 3A
Design criteria SATRA PM133

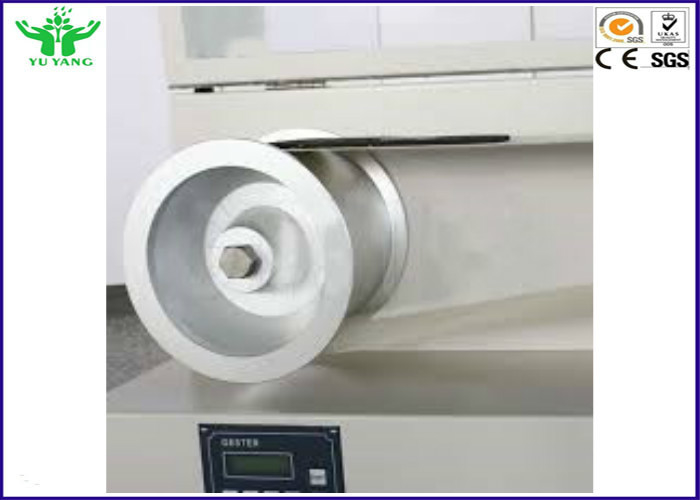

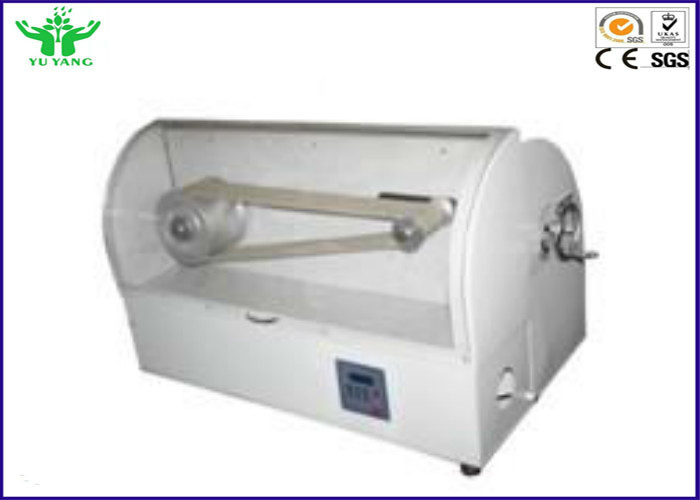

225 Sole Bending / Outsole Flexing Footwear Testing Equipment 90 Cycles/min 0225 Sole Bending / Outsole Flexing Footwear Testing Equipment 90 Cycles/min 1225 Sole Bending / Outsole Flexing Footwear Testing Equipment 90 Cycles/min 2





Packaging Details


Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.



225 Sole Bending / Outsole Flexing Footwear Testing Equipment 90 Cycles/min 3
